4000 SRM 736 Sideshift Carriage Repair
1. CAPSCR
EWS
2. LOWER HOOK
3. MOBILE FRAME
4. LOWER P
ADS
5. UPPER PADS
6. GREASE FITTINGS
7. CYLIND
ER ROD
8. SNAP RING
9. ROD SCRAPER
10. ROD BUS
HING
11. SEAL
12. FIXED FRAME

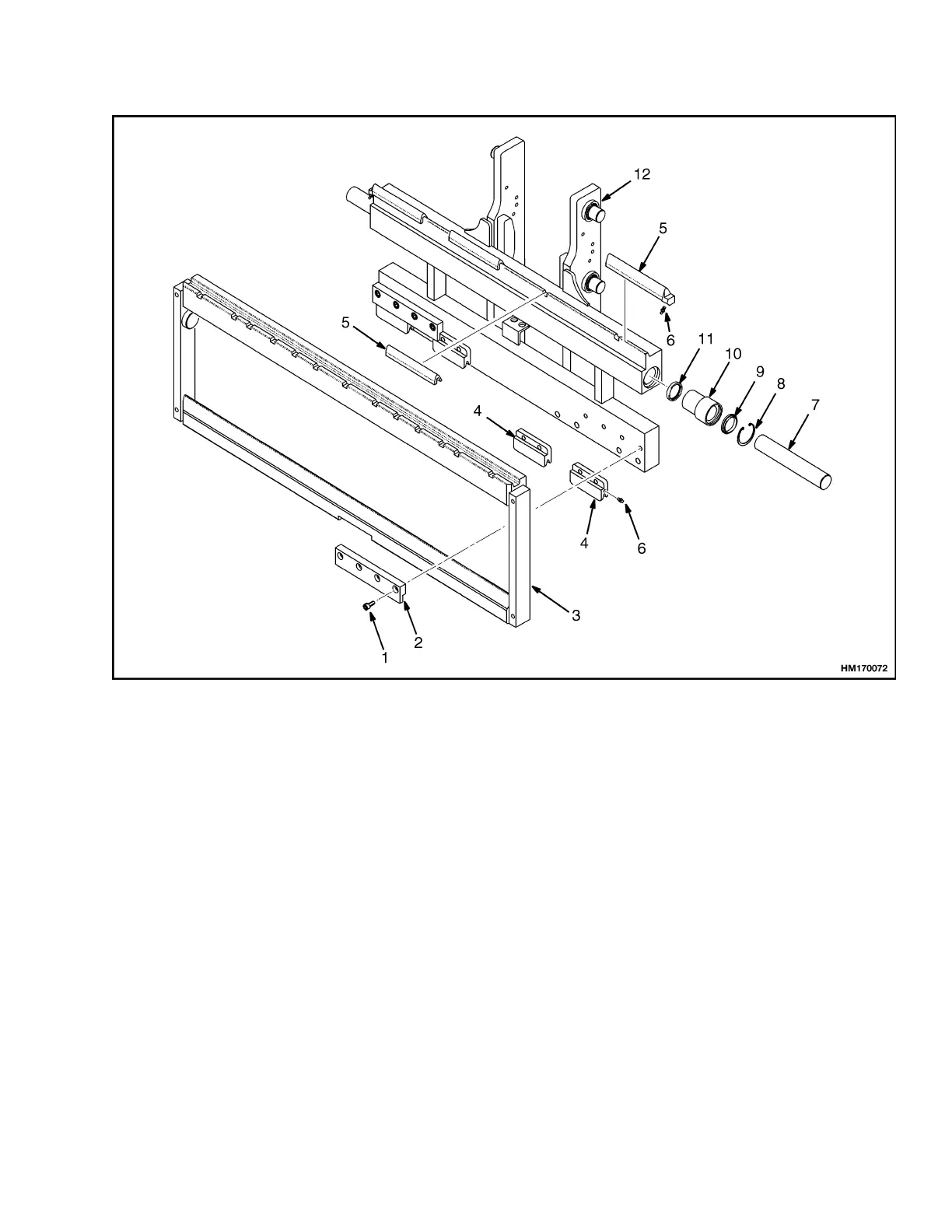

Figure 10. Sideshift Carriage
5. Install the mobile frame onto the fixed frame by
hooking it at the top of the fixed frame first and
lowering it to the bottom.
6. Install lower hooks and capscrews. Tighten the
capscrews to 78 N•m (58 lbf ft).
INSTALL
1. To install the sideshift carriage onto the truck,
reverse the procedure for removal as described
in section Carriage Repair.
2. Remove protective caps and plugs from hydraulic
lines and cylinder ports. Connect lines to the
sideshift cylinder.
