4000 SRM 736 Fork Replacement
Fork Replacement
The identification of a fork describes how the fork is
connected to the carriage. The series of lift trucks
covered in this section have hook type forks. See Fig-
ure 6.

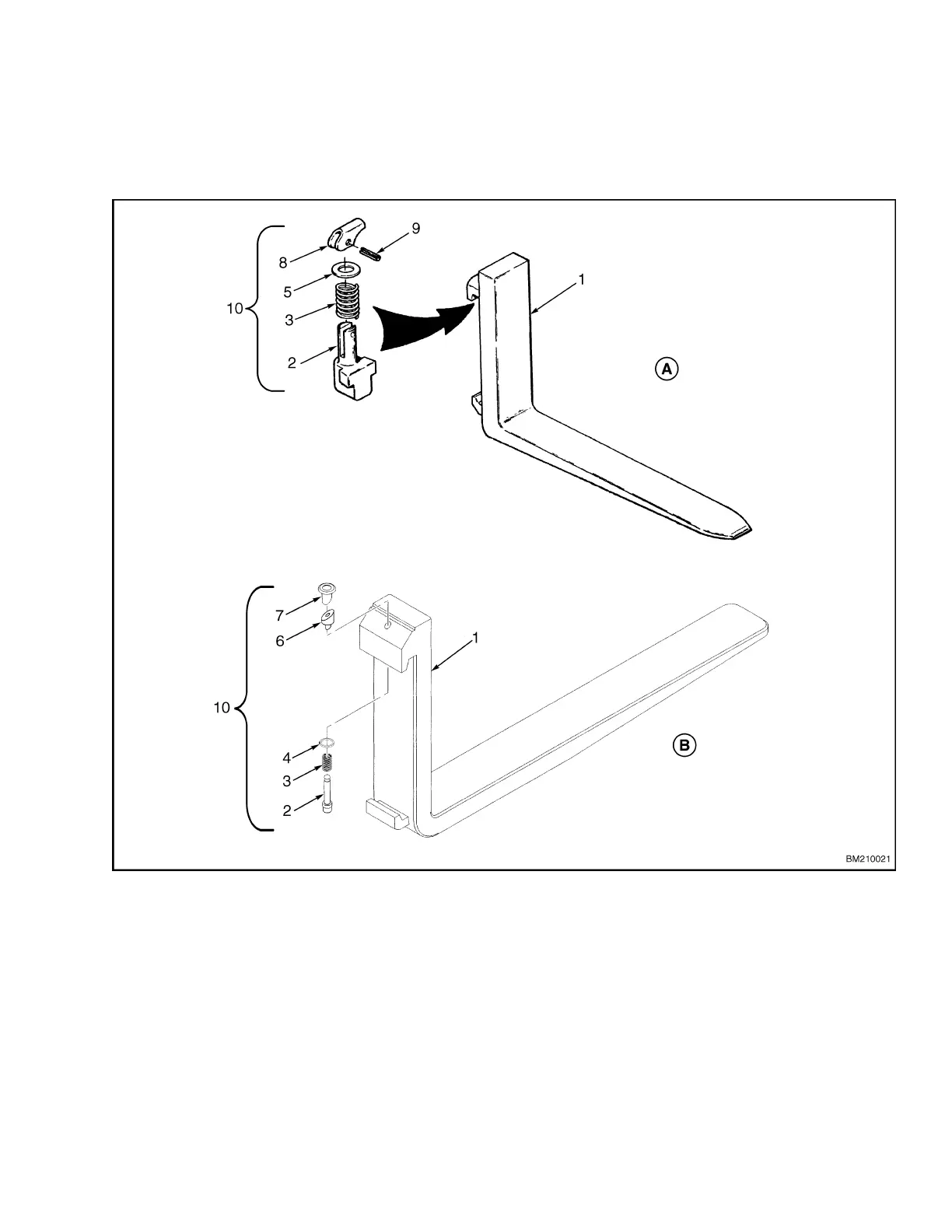

A. OLD STYLE LOCK PIN ASSEMBLY B. NEW STYLE PIN ASSEMBLY
1. FORK
2. LOCK PIN
3. SPRING
4. WASHER
5. WASHER
6. WEDGE
7. KNOB
8. LEVER
9. COTTER PIN
10. LOCK PIN ASSEMBLY
Figure 6. Fork Lock Pin Assembly
