Sideshift Carriage Repair 4000 SRM 340
Sideshift Carriage Repair
SIDESHIFT CARRIAGE (EARLIER
DESIGNS)
The earlier Hyster Company designs of sideshift car-
riages for this mast are shown in Figure 12 and Fig-
ure 13. These designs are used on lift trucks man-
ufactured through 1993. During the second half of
1993, a second design shown in Figure 14 was in-
stalled on lift trucks. The operation of the designs
are similar, but the components are different.
NOTE: See the section, Main Control Valve 2000
SRM 77 for information about the control valve link-
age for the sideshift carriage.
Disassemble
WARNING
Make sure any lifting devices have the correct
capacity for the parts being moved. See Weight
of Mast Parts.
1. Disconnect hydraulic lines at sideshift cylinder.
Disconnect sideshift cylinder at carriage and at
apron. Remove sideshift cylinder. See Figure 10,
Figure 11, Figure 12, and Figure 13.
2. Remove keeper plates or carriage hooks at bot-
tom of carriage. Use lifting device and lift apron
from carriage. Remove rollers and bearing seg-
ments as necessary.
3. Disassemble sideshift cylinder (see Figure 10)
and Figure 11 as follows:
a. Remove retaining ring, then remove retainer
from cylinder shell. Pull rod and piston from
shell.
b. Remove nut from rod, and remove piston and
retainer.
c. Remove seals and O-rings.

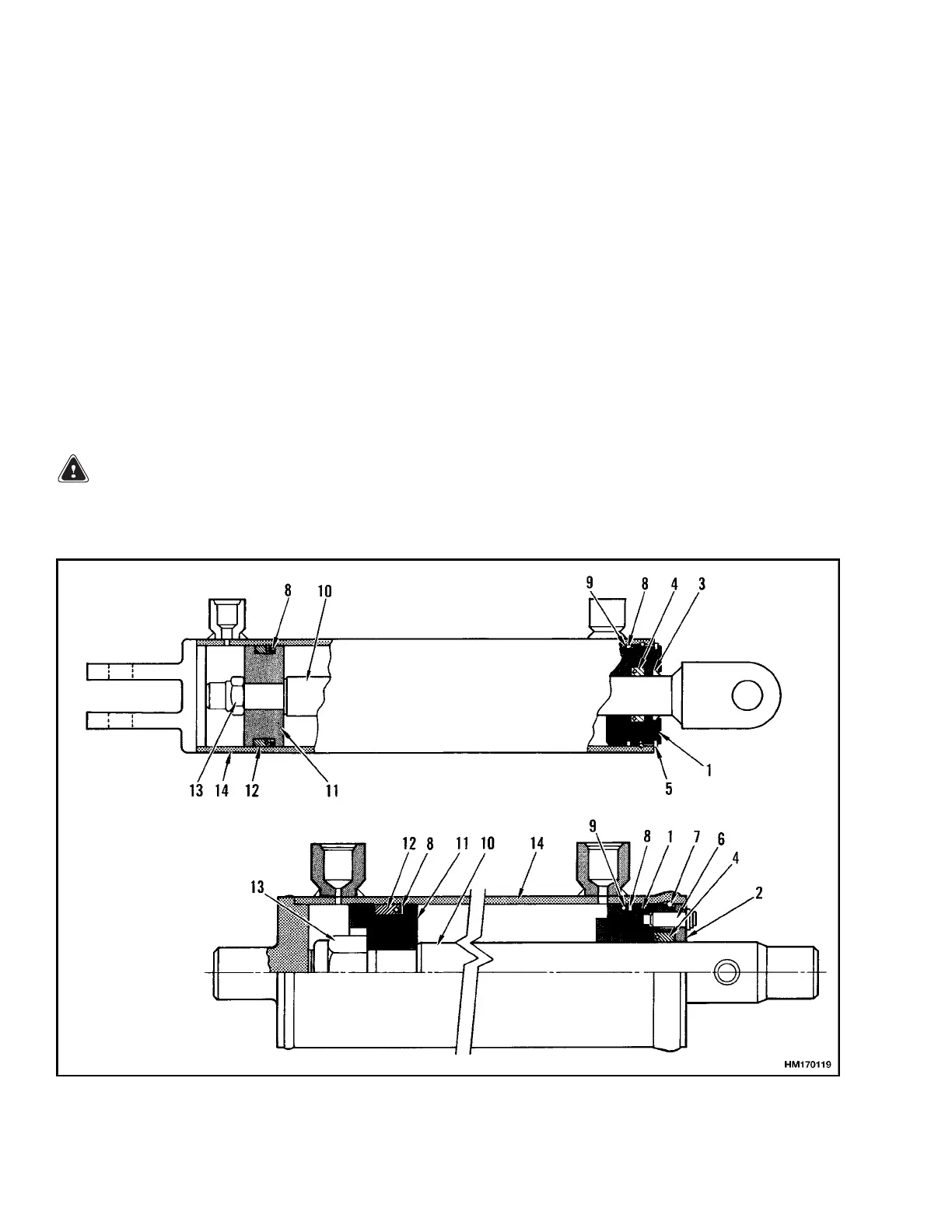

Figure 10. Sideshift Cylinders for Earlier Design Carriages (Old Style)
10
To Next Page
