1. LOAD BACKREST
2. CARRIAGE
3. FORK(S)
4. KNOB
5. PIN RETAINER
6. SPRING
7. PIN (FORK LATCH)
8. FORK REMOVAL NOTCH
9. LOWER HOOK
10. UPPER HOOK

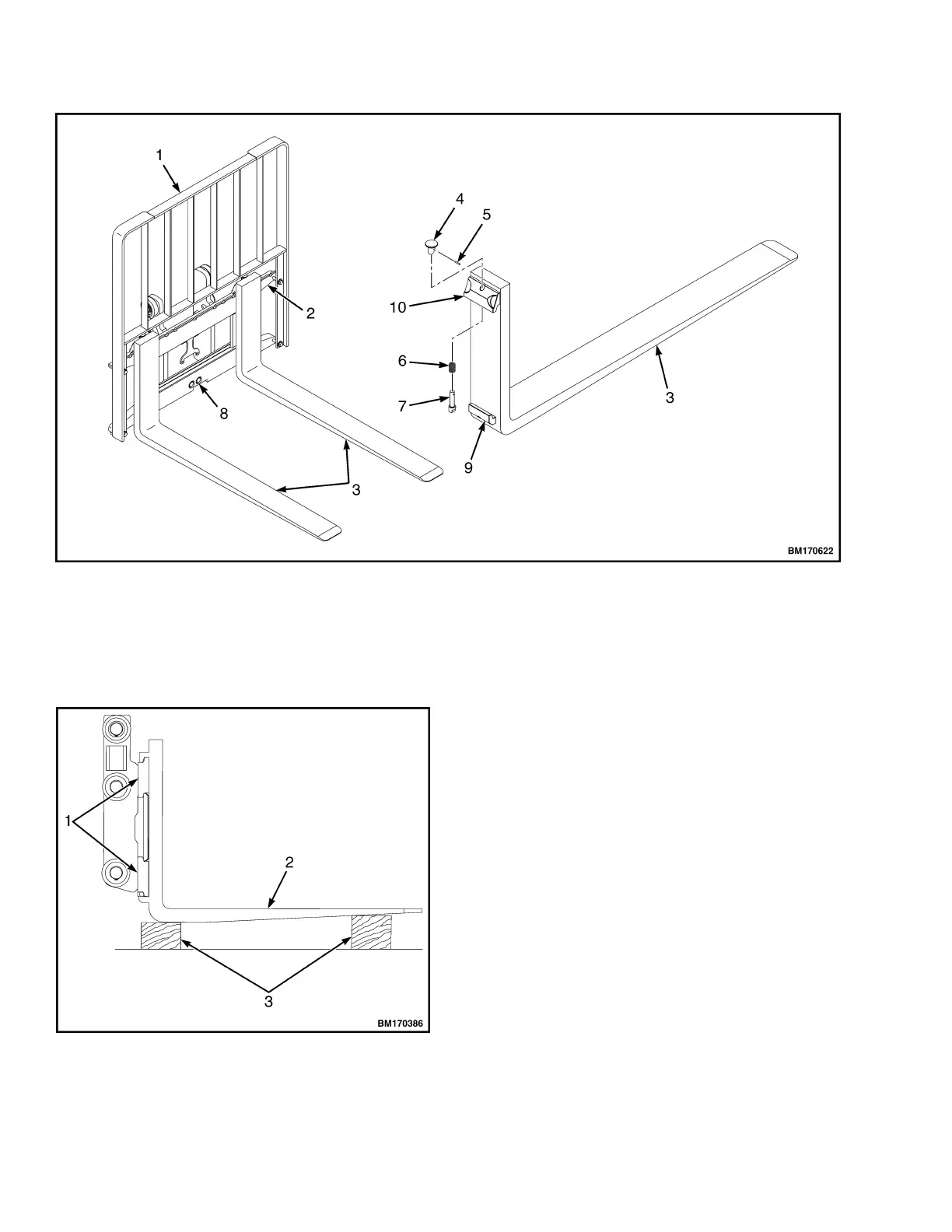

Figure 3. Carriage and Forks
Figure 4. Hook Fork, Remove
Legend for Figure 4
1. CARRIAGE BARS
2. HOOK FORK
3. BLOCKS
Fork Replacement 4000 SRM 1999
