Hytera PD505 User Manual

5
Before Use

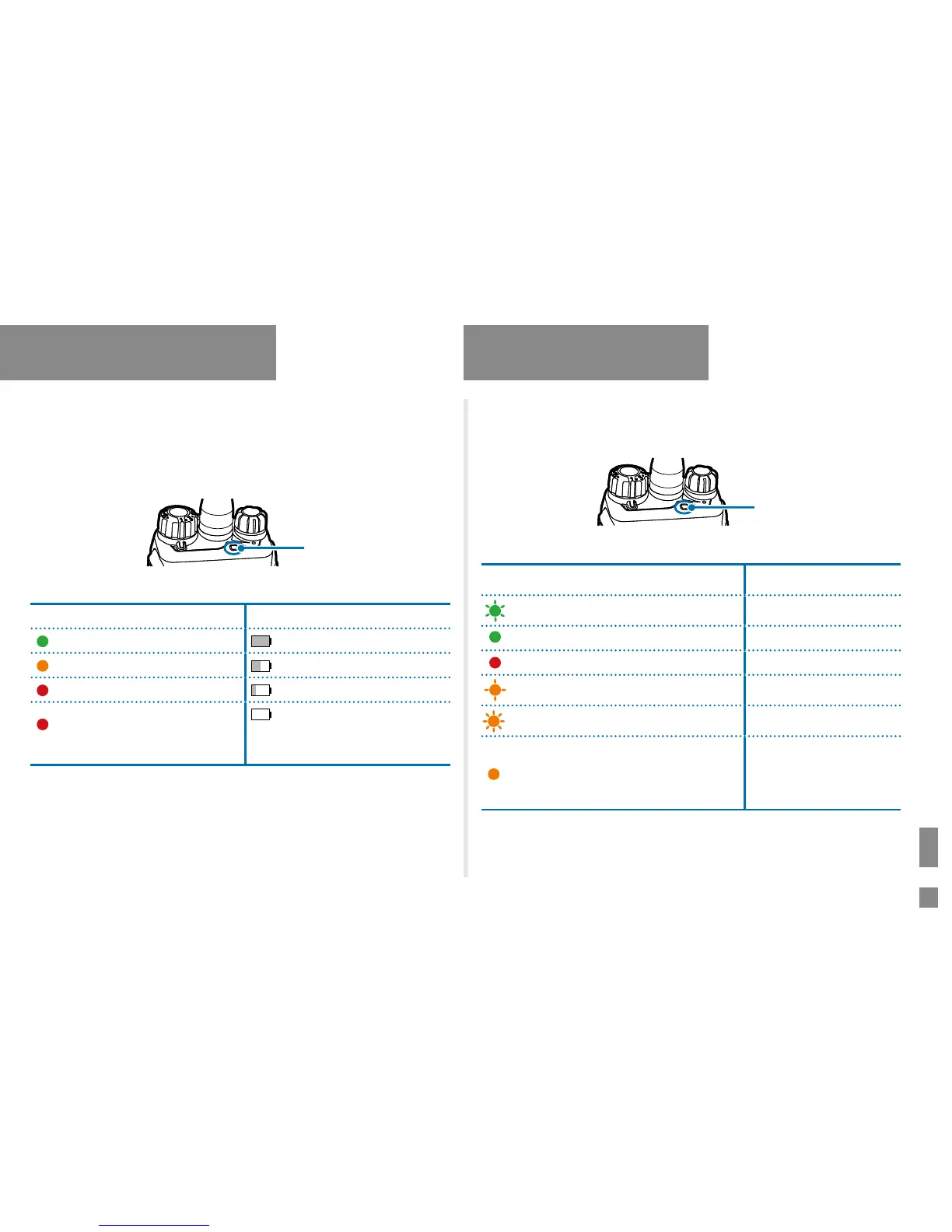

Checking the Battery Power
You may check the current battery power by holding the programmed
Battery Power Indicator key preset by your dealer. Release the key to
exit.
LED Indication Battery Power
The LED indicator glows green High
The LED indicator glows orange Medium
The LED indicator glows red Low
The LED indicator glows red
and low battery alert sounds
Under the low battery
threshold. Charge or replace the
battery for proper radio operation
LED Indicator
LED Indication Product Status
The LED indicator ashes green Powering on
The LED indicator glows green Receiving
The LED indicator glows red Transmitting
The LED indicator ashes orange slowly Scanning or roaming
The LED indicator ashes orange rapidly Emergency
The LED indicator glows orange
The call is established
successfully, and you can
hold down the PTT key to
talk
Status Indication
LED
LED

Hytera PD505 Specifications

General

Channel Capacity	32
Zone Capacity	3
Operating Voltage	7.4 V
Dimensions	115 x 54 x 27 mm
Weight	260 g
IP Rating	IP54
Storage Temperature	-40°C to +85°C
Shock & Vibration	MIL-STD-810 C/D/E/F/G
Frequency Range	UHF: 400-470 MHz; VHF: 136-174 MHz
Channel Spacing	12.5/25 kHz
Digital Protocol	DMR
Operating Temperature	-30°C to +60°C
Humidity	95% RH
RF Power Output	UHF: 1W/4W; VHF: 1W/5W
Battery	1500mAh Li-Ion battery
Display	No
Keypad	No
