Hytera PD505 User Manual

3
Product Overview
Programmable Keys
For enhanced convenience, you may request your dealer to program the
SK1 key as shortcut to certain feature. Please refer to the corresponding
Feature Book for feature details.
Before Use
Assembling the Radio
●
To remove the battery, please turn off the radio first. Then
slide the battery latch upwards to unlock the battery.
●
If not assembled with battery specified by Hytera, the radio
will give an alarm tone to remind you when powering on.
Afterwards, it will operate normally.

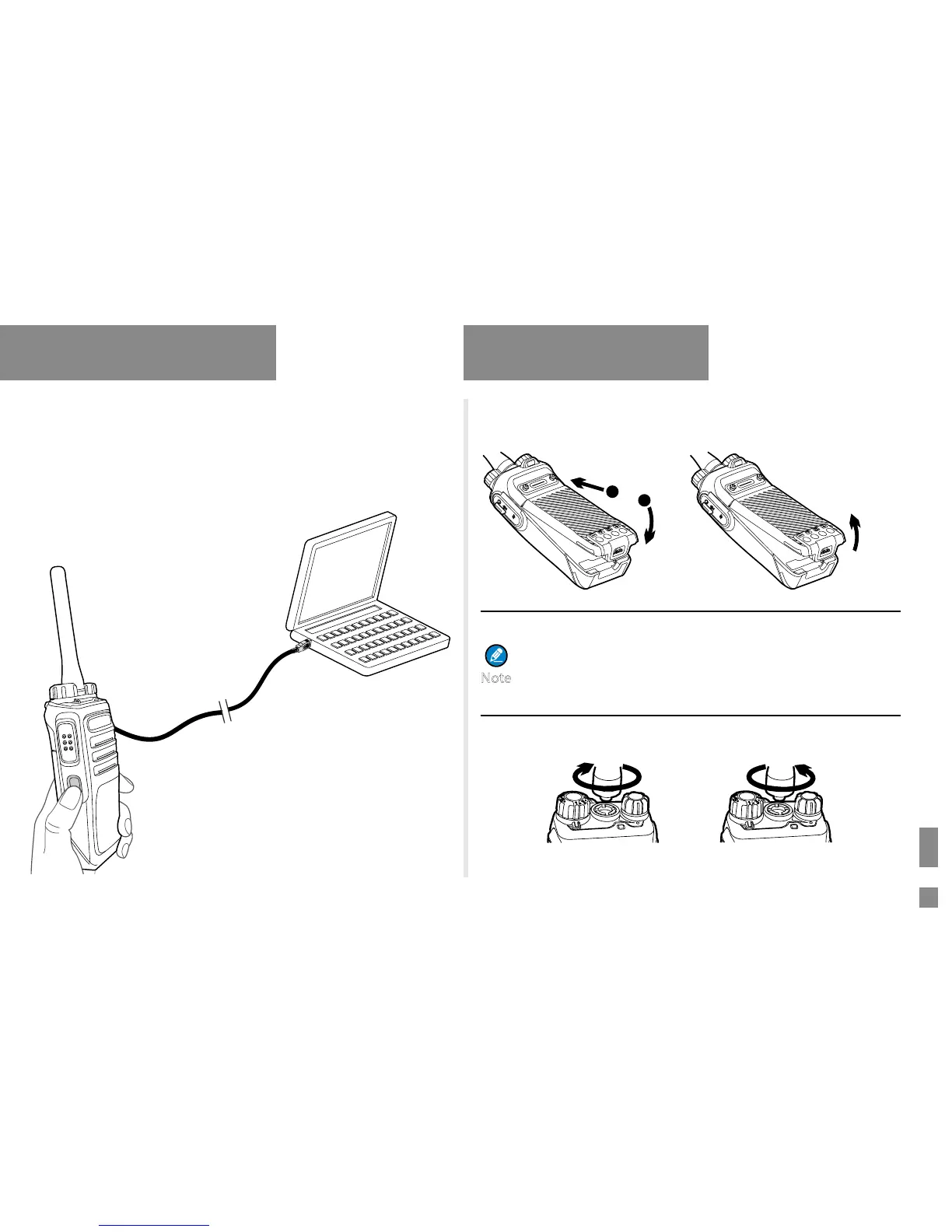

1. Assembling the Battery
Assemble Disassemble
2. Assembling the Antenna
“click ”
1
2
“click ”
Assemble Disassemble
Note

Hytera PD505 Specifications

General

Channel Capacity	32
Zone Capacity	3
Operating Voltage	7.4 V
Dimensions	115 x 54 x 27 mm
Weight	260 g
IP Rating	IP54
Storage Temperature	-40°C to +85°C
Shock & Vibration	MIL-STD-810 C/D/E/F/G
Frequency Range	UHF: 400-470 MHz; VHF: 136-174 MHz
Channel Spacing	12.5/25 kHz
Digital Protocol	DMR
Operating Temperature	-30°C to +60°C
Humidity	95% RH
RF Power Output	UHF: 1W/4W; VHF: 1W/5W
Battery	1500mAh Li-Ion battery
Display	No
Keypad	No
