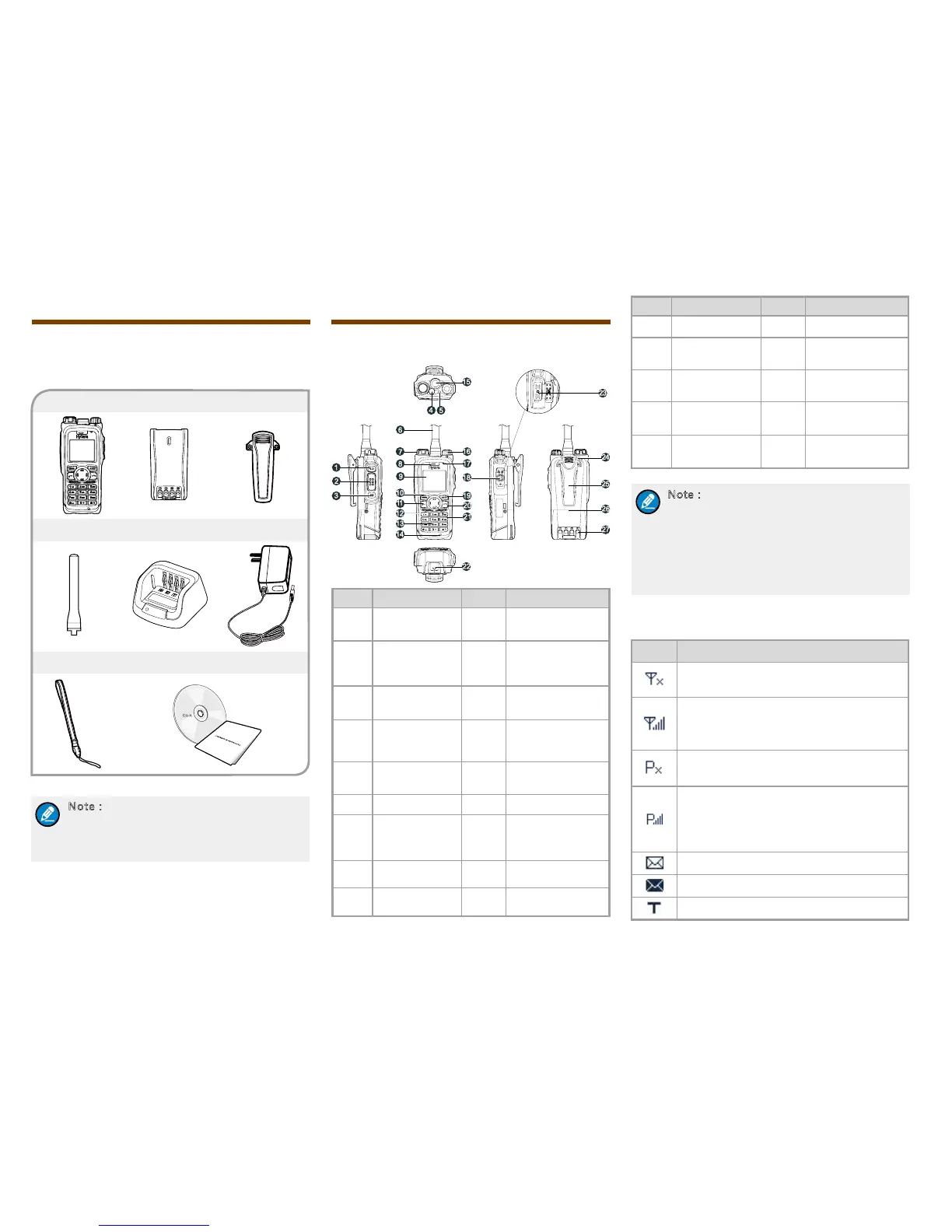

Antenna Charger Power Adapter
Terminal Battery Belt Clip
Strap Documentation Kit
Items in the Package
Please unpack carefully and check if all items listed
below are received. If any item is missing or damaged,
please contact your dealer.
Note：The frequency band is marked on
the label of antenna; if not, please refer to
the label on the terminal for frequency band
information.
Product Overview
Product Controls
No. Part Name No. Part Name
1
SK1 (Side
Key 1)
15
Antenna
Connector
2
PTT (Push-
to-Talk) Key
16
Power On-Off/
Volume Control
Knob
3
SK2 (Side
Key 2)
17
Half-duplex
Microphone
4
Emergency
Key
18
Accessory
Connector
Cover
5 LED Indicator 19
Options/Back
Key
6 Antenna 20 End Key
7
Group
Selector
Knob
21 Navigation Key
8
Full-duplex
Receiver
22 Battery Latch
9 LCD Display 23
Accessory
Connector
No. Part Name No. Part Name
10 Func/OK Key 24 Strap Hole
11
Answer/Call
Key
25 Belt Clip
12
Half-duplex
Speaker
26 Battery
13
Numeric
Keypad
27 Charging Piece
14
Full-duplex
Microphone
/ /
Note：
For enhanced convenience, you may
request your dealer to program the numeric keys
0–9, * key, # key, navigation keys, Call key, OK
key, Back key, SK1 and SK2 key as shortcuts
to certain features. For the detailed introduction,
please refer to the corresponding TETRA Terminal
Series Feature Book.
LCD Icon
Icon Terminal Status
The terminal is not registered with the
system (applicable for TMO only).
The terminal is registered with the system,
and more bars indicate stronger signal
strength.
The terminal is not registered with the
system while the WAP browser is running.
The terminal is registered with the system
while the WAP browser is running,
and more bars indicate stronger signal
strength.
There is(are) unread message(s).
The Inbox is full.
The terminal is operating in TMO.
