Hytorc Stealth 8 User Manual

12 Parts list

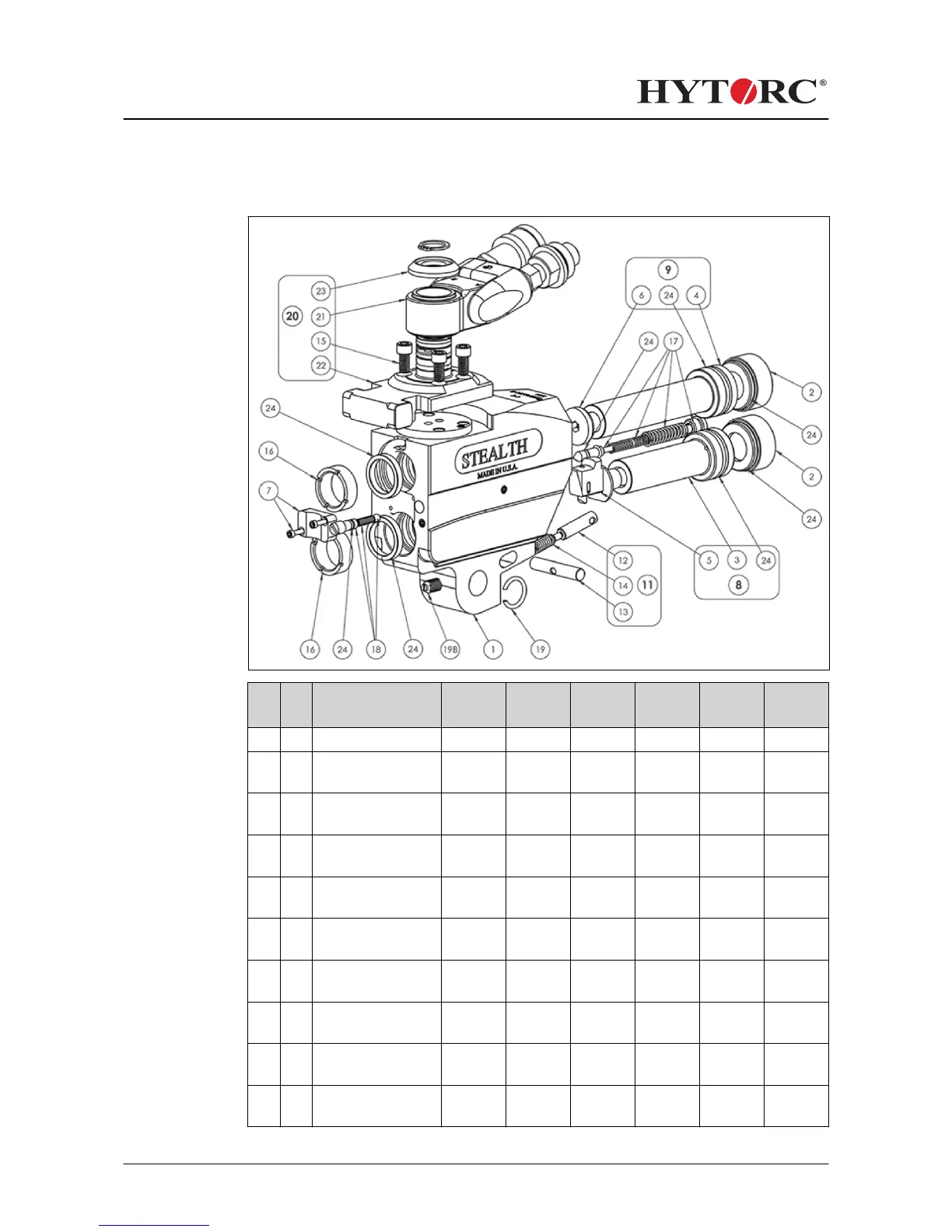

Cylinder parts list
Item QTY Description
Stealth-2 Stealth-4 Stealth-8 Stealth-14 Stealth-22 Stealth-36
1 1 Housing assembly ST-02-01 ST-04-01 ST-08-01 ST-14-01 ST-22-01 ST-36-01
2 2 End cap with seal
(top/bottom)
ST-02-02
T/B
ST-04-02
T/B
ST-08-02
T/B
ST-14-02
T/B
ST-22-02
T/B
ST-36-02
T/B
3 1 Bottom piston rod ST-02-03
B
ST-04-03
B
ST-08-03
B
ST-14-03
B
ST-22-03
B
ST-36-03
B
4 1 Top piston rod ST-02-3T ST-04-3T ST-08-03
T
ST-14-03
T
ST-22-03
T
ST-36-03
T
5 1 Rod end hook kit
(incl. item 10)
ST-02-04
B-00
ST-04-04
B-00
ST-08-04
B-00
ST-14-04
B-00
ST-22-04
B-00
ST-36-04
B-00
6 1 Top rod end ST-02-04
T
ST-04-04
T
ST-08-04
T
ST-14-04
T
ST-22-04
T
ST-36-04
T
7 1 Anti-rotation kit (with
screws)
ST-02-05 ST-04-05 ST-08-05 ST-14-05 ST-22-05 ST-36-05
8 1 Bottom piston rod
assembly
ST-02-06
B
ST-04-06
B
ST-08-06
B
ST-14-06
B
ST-22-06
B
ST-36-06
B
9 1 Top piston rod as-
sembly
ST-02-06
T
ST-04-06
T
ST-08-06
T
ST-14-06
T
ST-22-06
T
ST-36-06
T
10 1 Hook pin kit (not
shown)
ST-02-09 ST-04-09 ST-08-09 ST-14-09 ST-22-09 ST-36-09
Parts list
44 37 - 001 -
