Definition: HYTORC hydraulic bolting system, suitable for hazardous areas:
The bolting system, which can be used in hazardous areas, consists of at least three components:
1. Modied pneumatic HYTORC Pump HY-AIR
2. Modied twin hose, nominal diameter 6 mm
3. Modied HYTORC Low Clearance Wrench STEALTH and / or HYTORC Square Drive Wrench AVANTI
and / or ICE.

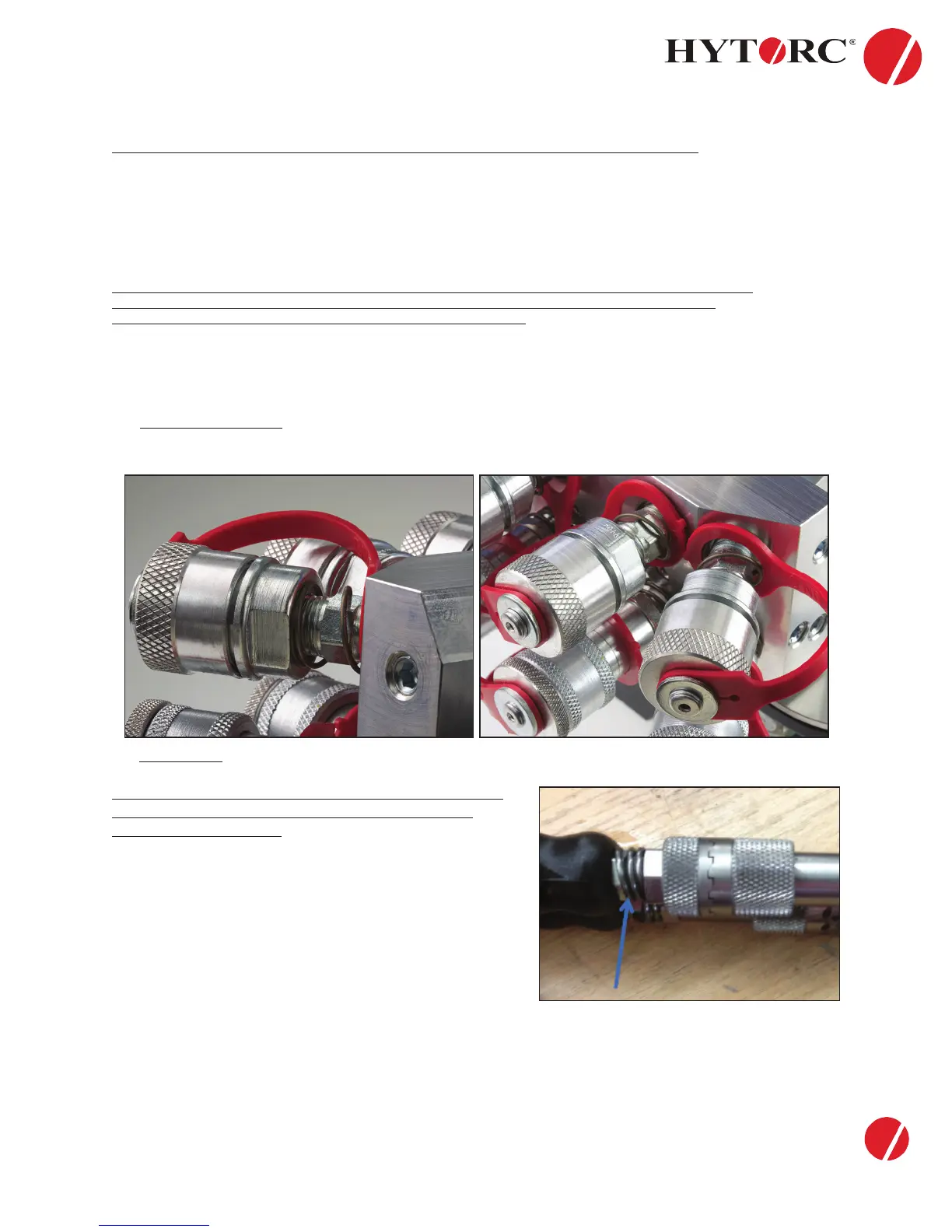

1. Modied component: HYTORC HY-AIR Pneumatic pump must be equipped as follows:
a) Solid metal spring on each male and female coupling (between coupler and tting).
ATTENTION: Only modified HYTORC hydraulic torque wrenches STEALTH, AVANTI and ICE,
modified twin hoses (only nominal diameter 6 mm) as well as the modified pneumatic
HYTORC Pump JetAir-12 shall be used in hazardous areas!
2. Component: The HYTORC hydraulic twin hose, with a nominal size of 6 mm (color mint-yellow).
ATTENTION: HYTORC hydraulic twin hoses with a
diameter smaller than 6mm are not suited for
explosion protection.
The twin hose nominal size 6 mm must be
equipped as follows:
(a) Solid metal spring on each male and
female coupling (between coupler and
tting). Each twin hose has two pairs of
couplers, and therefore four couplers

Hytorc Stealth series Specifications

General

Series	Stealth
Type	Hydraulic Torque Wrench
Power Source	Hydraulic
Weight	Varies by model
Operating Pressure (max)	10, 000 psi
Accuracy	+/- 3%
