5-2

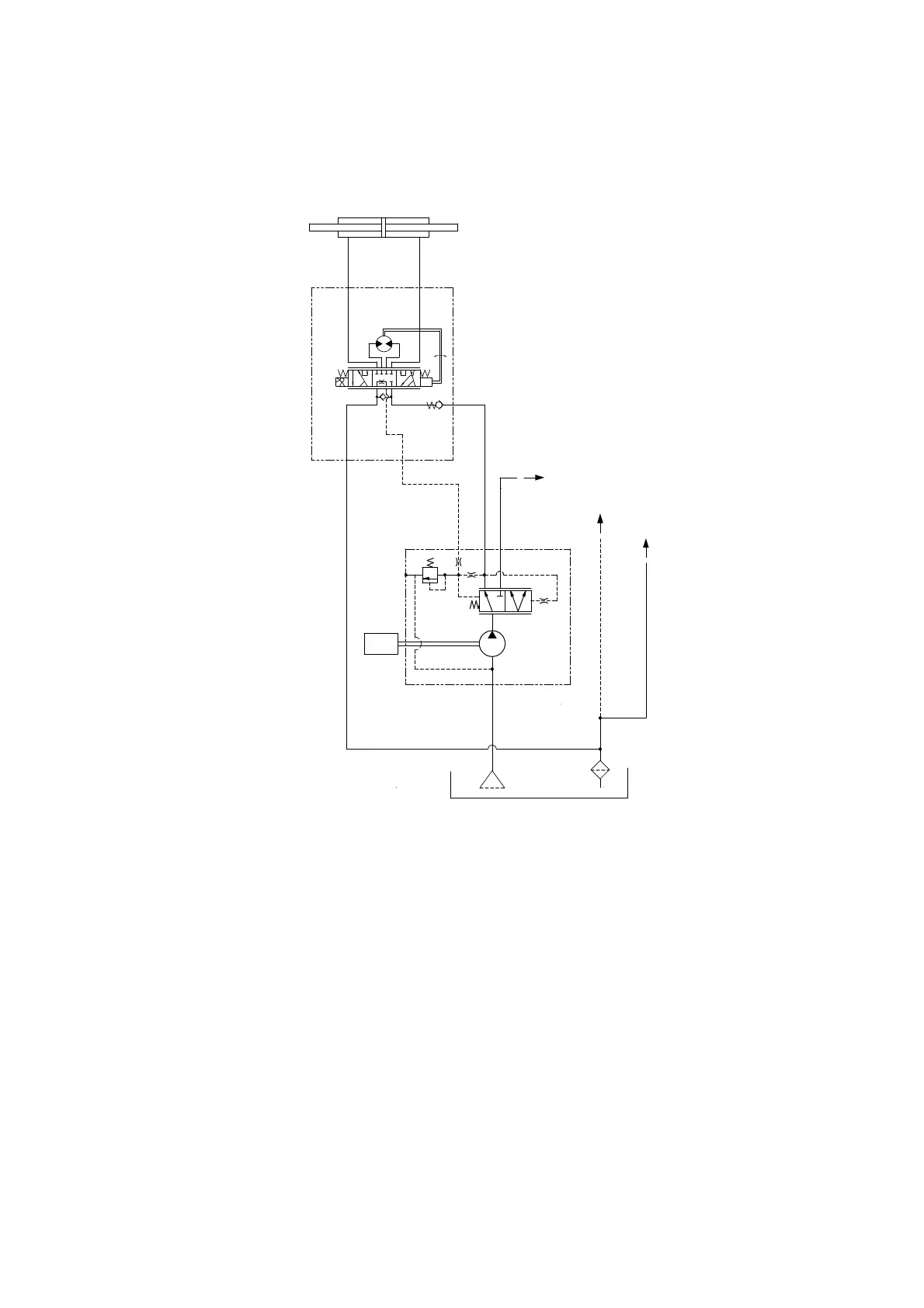

2. HYDRAULIC CIRCUIT
2. HYDRAULIC CIRCUIT
4
3
T
LS
L
R
P
5
T/M
EF
CF
LS
1
MCV
LIFT CYLINDER
MCV
2
20DFSS02
1 Hydraulic gear pump with priority valve
2 Steering unit
3 Steering cylinder
4 Suction strainer
5 Hydraulic tank
