3-25
GROUP 3 DISASSEMBLY AND ASSEMBLY
GROUP 3 DISASSEMBLY AND ASSEMBLY

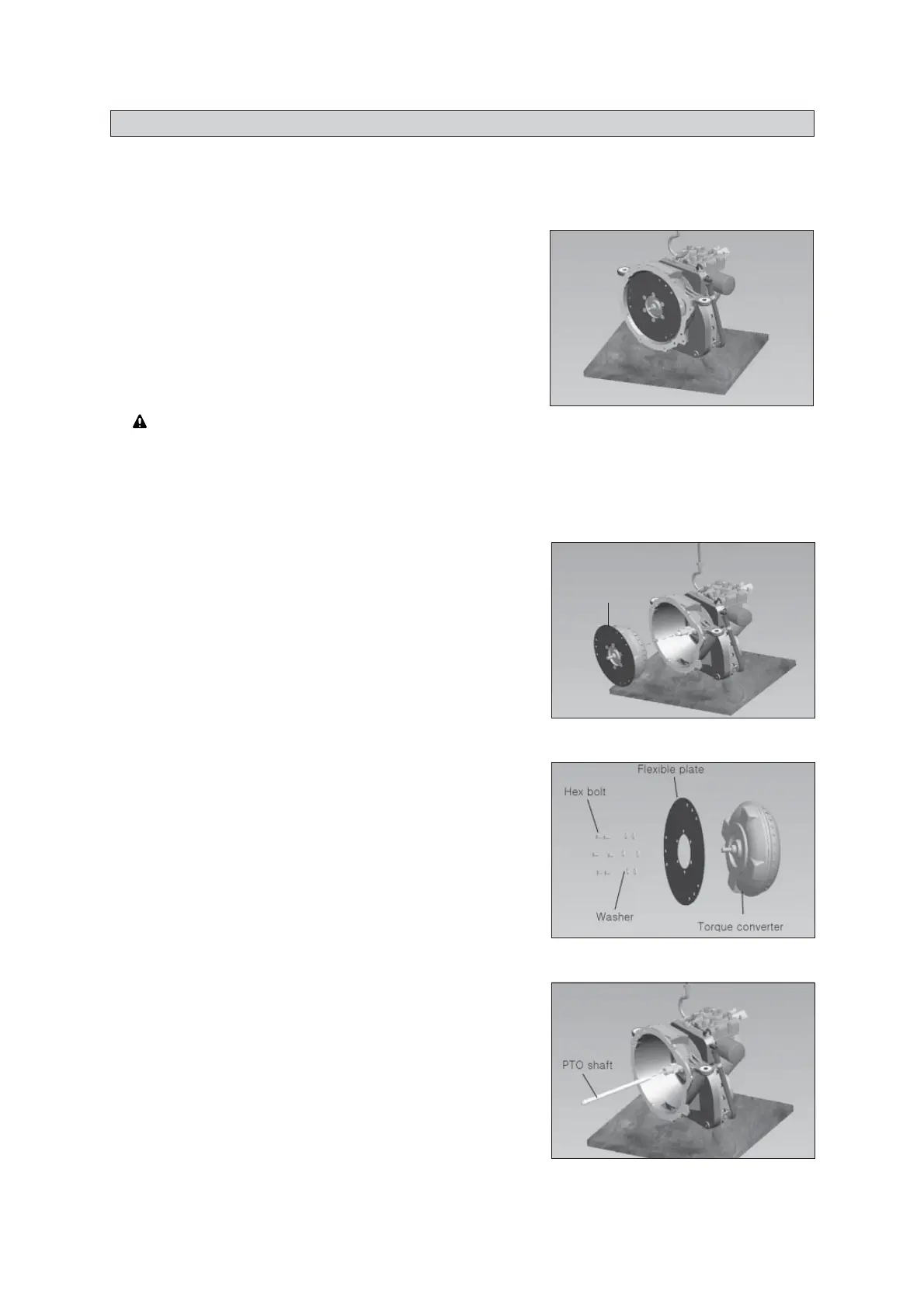

1. DISASSEMBLY OF TRANSMISSION
1. DISASSEMBLY OF TRANSMISSION
DISASSEMBLING OF TRANSMISSION ASSY
DISASSEMBLING OF TRANSMISSION ASSY
1)
Drain the transmission oil.
Remove the drain plug at T/C housing.
Lay the wood plate (or plastic plate) on the
workshop's table (bottom).
And put the T/M assy on the wood plate (or plastic
plate) : For an (dis) assembly at the time of damage
prevent.
To avoid serious personal injury and possible
To avoid serious personal injury and possible
damage to components, be very careful when
damage to components, be very careful when
using lifting devices during removal and
using lifting devices during removal and
disassembly procedures.
(1)
(2)
15L7ATM001
15L7ATM002
15L7ATM003
15L7ATM004
Removal torque converter part.
Remove the torque converter sub assy.
(3)
Remove the hexagon bolt , washer, flexible plate.
②
Remove the PTO shaft.
①
(4)
T/C sub assy
