Forks
Lower the fork carriage until the forks are
approximately 25
mm
(1
in
) from the floor.
Turn knob up and slide one fork at a time
toward the center of the carriage where a
notch has been cut in the bottom plate
for easy removal.
Remove only one fork at a time.
On larger forks it may be necessary to
use a block of wood.
2-2
Backrest
Carriage
Center notch
Fork
Knob
Pin
Spring
Pin
Backrest (If necessary)
Remove bolts securing backrest to fork
carriage. Disassemble the backrest from
the carriage.
20DF7TRE02
20DF7TRE03
Carriage
With the mast vertical, raise the carriage
high enough to place blocks under the
load forks. This is done to create slack in
the load chains when the carriage is
lowered. Lower the carriage all the way
down to the floor. Make sure the
carriage is level, this will prevent any
binding when the mast is raised.
20D7RE04

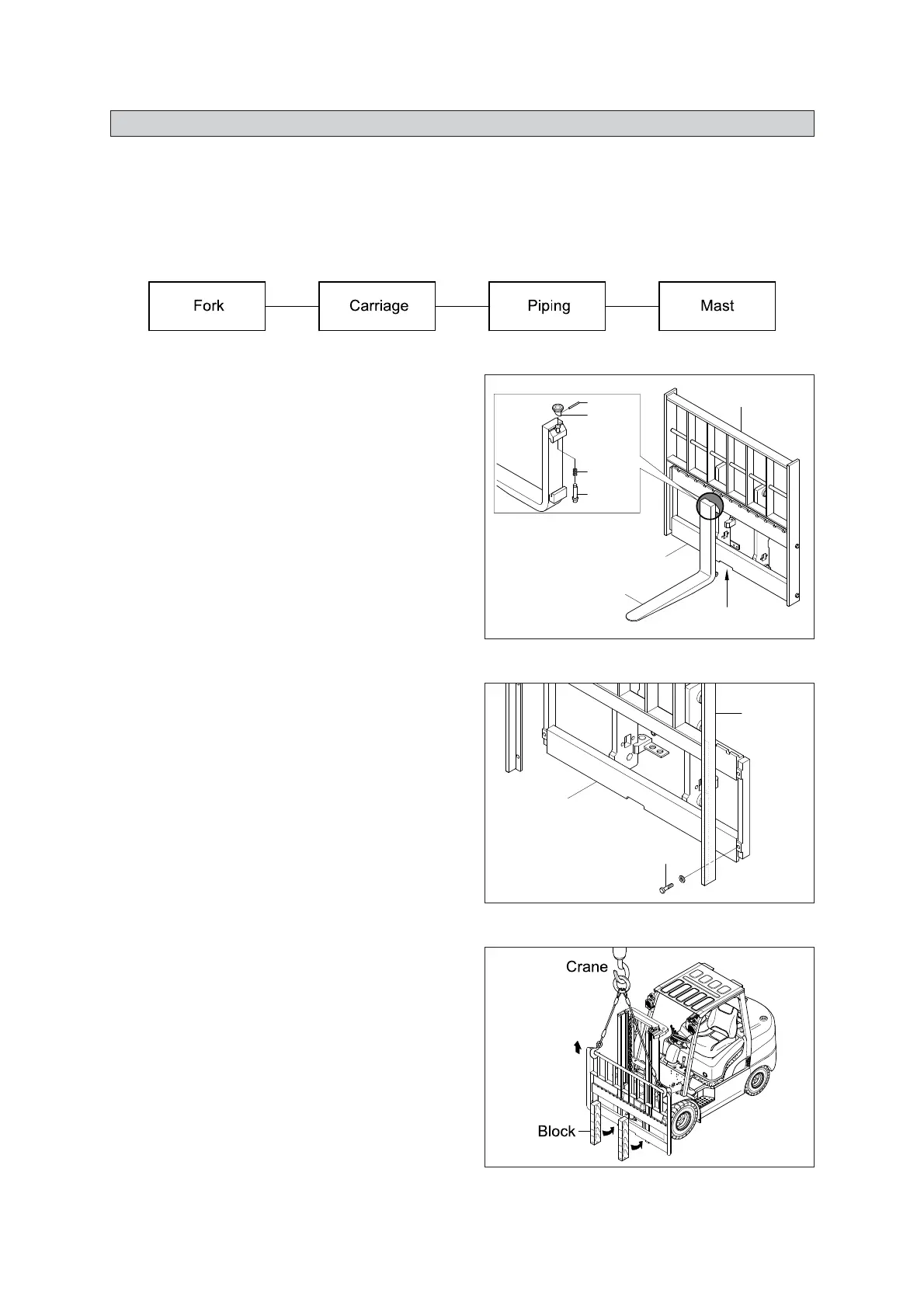

GROUP 2 REMOVAL AND INSTALLATION OF UNIT
GROUP 2 REMOVAL AND INSTALLATION OF UNIT
1. MAST
REMOVAL
1)
Remove and install following units as explained in the flow chart.
L15C3RE001
(1)
(2)
①
②
③
※
①
(3)
①
To Next Page
