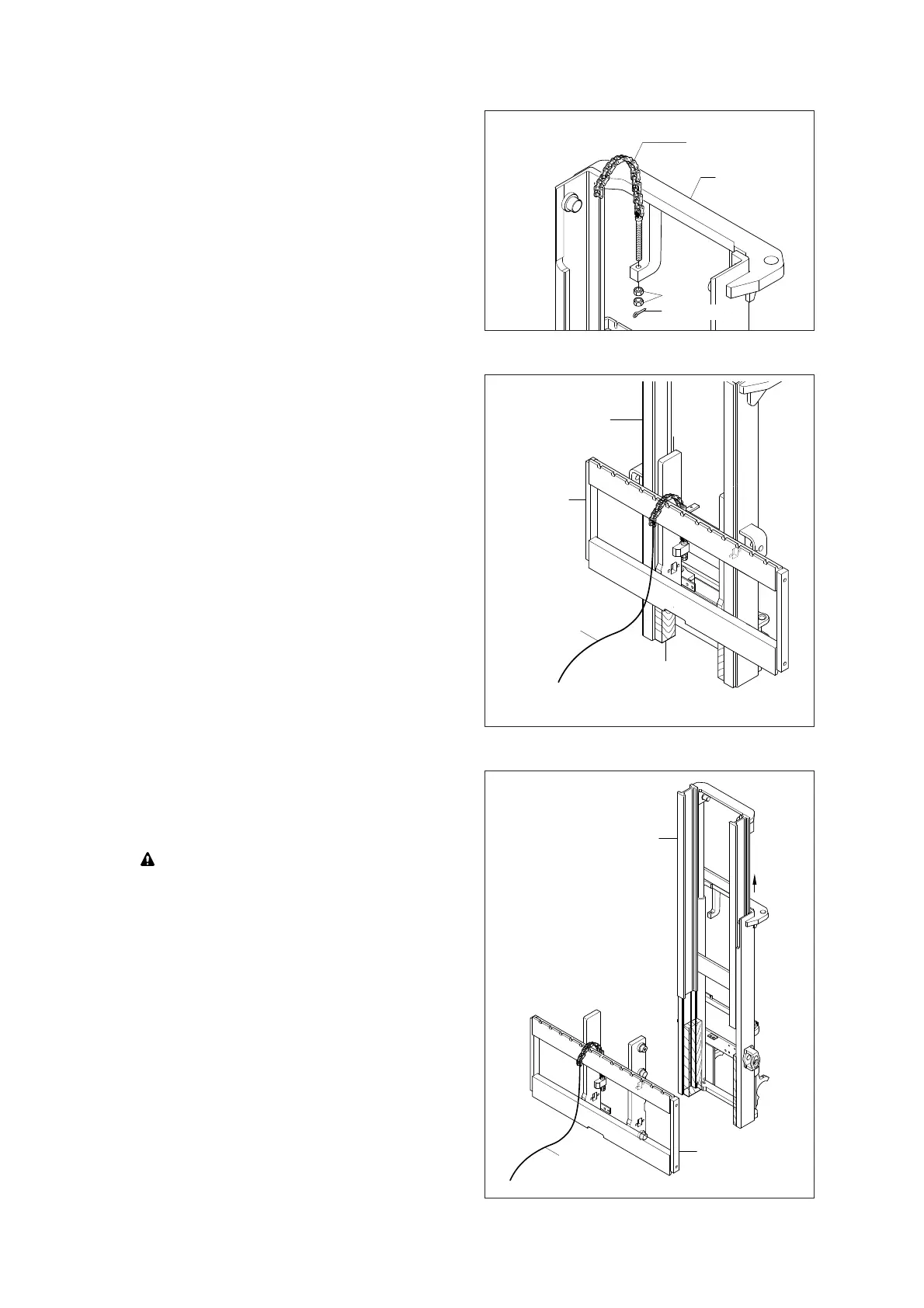

While supporting lift chains, remove nuts
and split pin from the anchor bolt.
②
Outer mast
Lift chain
Nut
Split pin
20D7RE05
Pull the chains out of the sheaves and
drape them over the front of the carriage.
③
Carriage
Lift chain
Mast
Block
20D7RE06
Slowly raise inner mast upright until mast
clears top of fork carriage. Move carriage
to work area and lower the mast.
Make sure that carriage remains on
Make sure that carriage remains on
floor and does not bind while mast is
floor and does not bind while mast is
being raised.
Inspect all parts for wear or damage.
Replace all worn or damaged parts.
④
※
Inner mast
Carriage
Lift chain
20D7RE07
