Hyundai 20DT-7 - Page 17

1-6

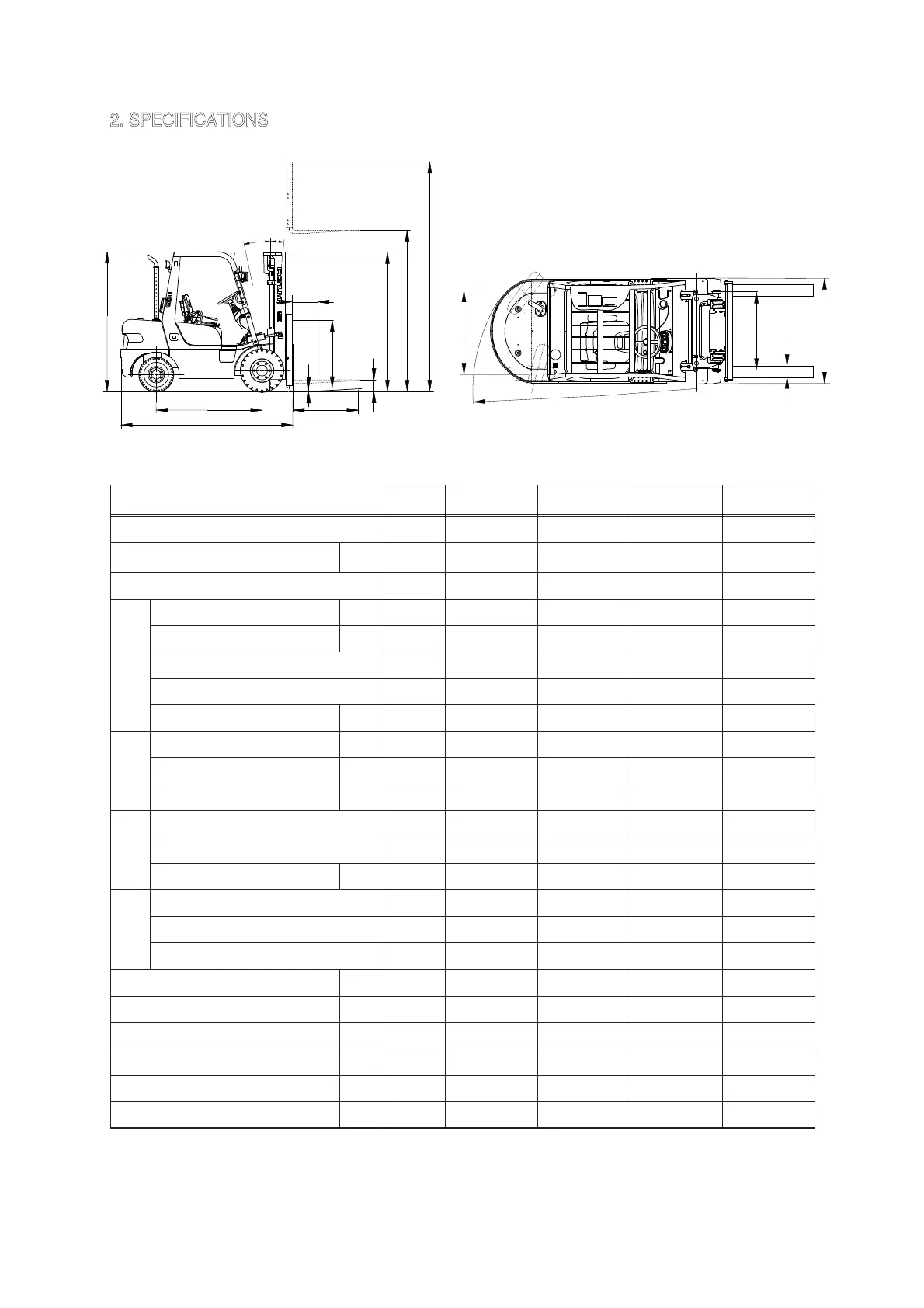

2. SPECIFICATIONS
D255SP01
A
B
W
T
L
C'
C
D
E
F
G
H
I
J
K
M
M'
R
Model Unit 20DT-7 25DT-7 30DT-7 33DT-7
Capacity
kg 2000 2500 3000 3300
Load center
R
mm 500
ą
ą
ą
Weight (Unloaded) kg 3417 3731 4186 4492
Fork
Lifting height A
mm 3005
ą
ą
3205
Free lift B
mm 155
ą ą ą
Lifting speed (Unload/Load) mm/sec 590/570 590/550 480/460 480/450
Lowering speed (Unload/Load)
mm/sec 450/500
ą ą ą
LÝWÝT L,W,T mm
1050Ý100Ý45
ą
1050Ý122Ý45
ą
Mast
Tilt angle (forward/backward) C/C’
degree 6/10
ą
ą
ą
Max height D
mm 4185
ą
ą
4385
Min height E
mm 2040
ą
ą
2190
Body
Travel speed (Unload)
km/h 20.5
ą
21.5 21.4
Gradeability (Load)
degree 37.3 32.2 26.0 24.0
Min turning radius (Outside) F
mm 2248 2302 2393 2434
ETC
Operating pressure
kgf/cm
2
200
ą ą ą
Hydraulic oil tank
˶
26
ą ą ą
Fuel tank
˶
54
ą ą ą
Overall length G mm 2534 2594 2692 2732
Overall width H
mm 1160
ą
1230
ą
Overhead guard height I mm 2160
ą
2180
ą
Ground clearance J mm 127 ą 145 ą
Wheel base K
mm 1650
ą
1700
ą
Wheel tread front/rear M, M' mm 965/980
ą
1005/980
ą
