2-5

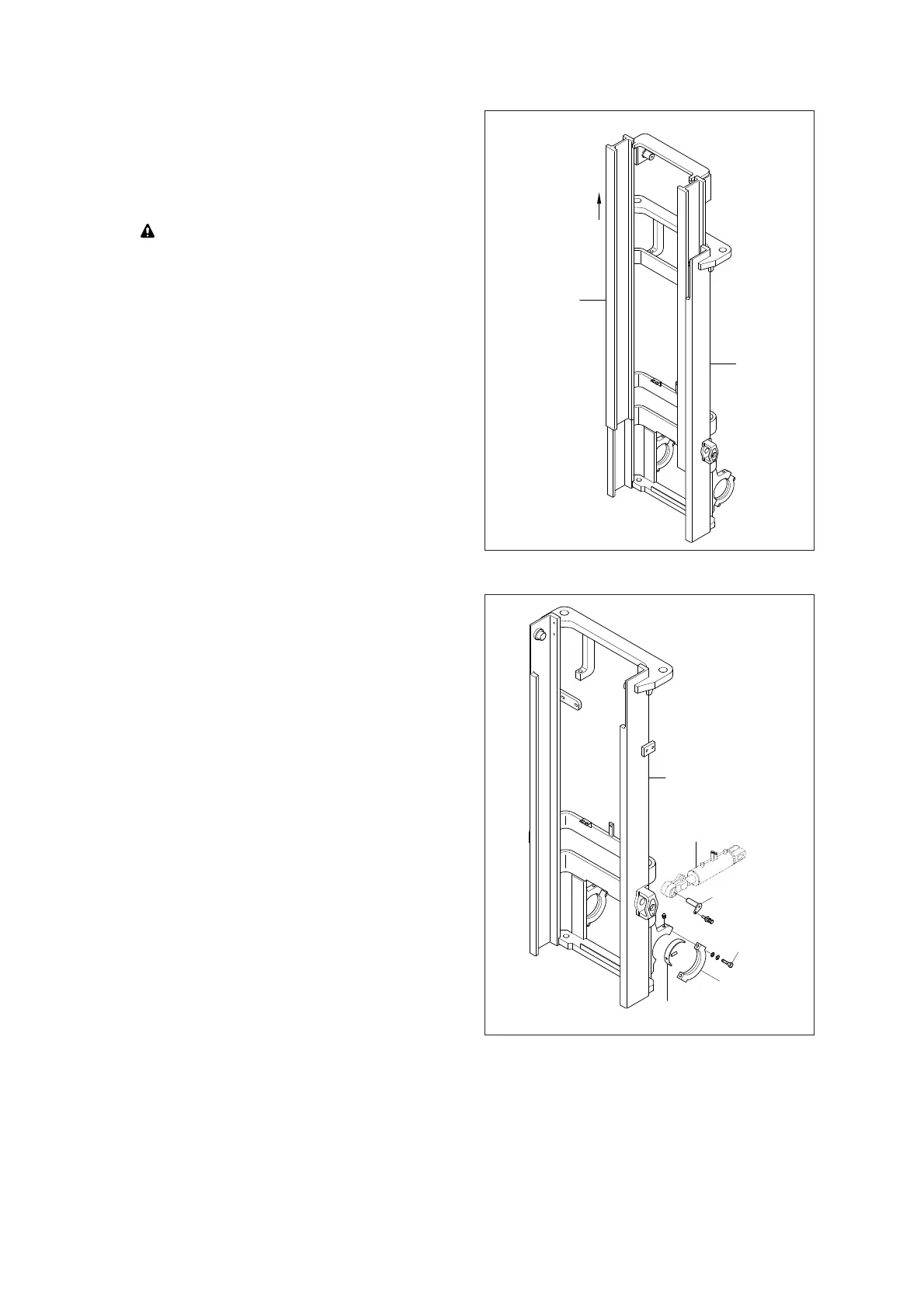

Inner mast
Using an overhead hoist raise the inner
mast straight and carefully draw out of
outer mast section.
Be careful the mast not to swing or fall.
Be careful the mast not to swing or fall.
(6)
①
20D7RE10
Tilt cylinder pin
Mast support cap
Attach a crane to the stay at the top of
the outer mast, and raise enough to
sustain jacked up machine.
This operation is carried out from under
the machine, so use a pit, or if there is no
pit, jack up the machine and loosen with
impact wrench.
Remove the mounting bolts from the cap
then slowly raise the outer mast.
(7)
(8)
Outer
mast
Tilt
cylinder
Pin
Mounting
bolt
Mast
support cap
Bushing
20D7RE11
①
※
②
