Hyundai 20DT-7 - Page 53

3-11
Solenoid valve
13
14
15
16
17
18
19
20
28
29
27
3
2
1
12
5
4
8
2
7
6
9
10
11
21
22
23
24
25
10
26
Modulation
Main pressure
check port
Reverse clutch pressure
check port
Inching spool
Main relief valve
Inching valve pressure
check port
Forward clutch pressure
check port
15L7APT22

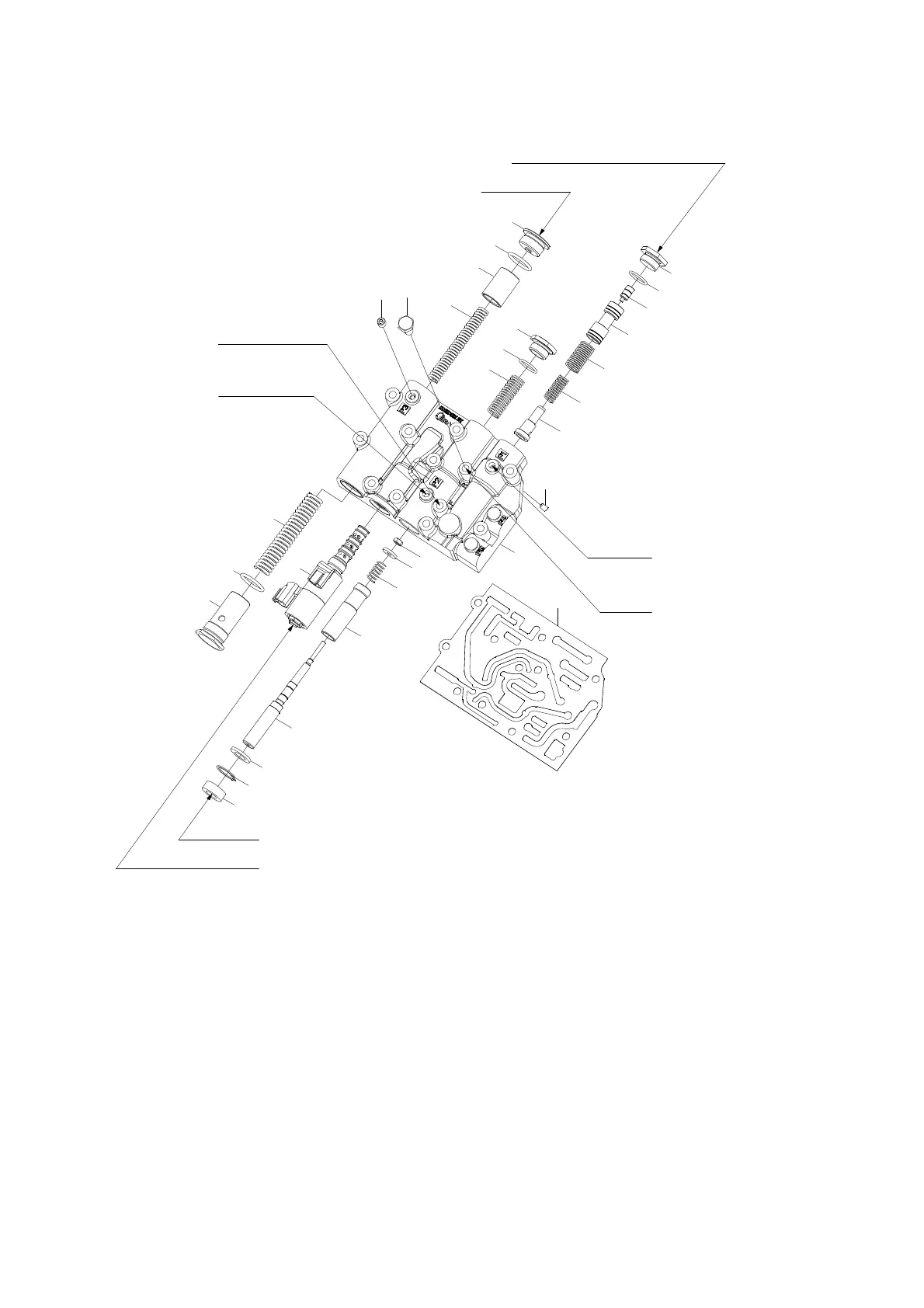

1 Plug
2 O-ring
3 Spring
4 Plug
5 Plug
6 Spring
7 Piston
8 Plug
9 Plug
10 O-ring
11 Spring
12 Solenoid valve
13 Seal
14 Snap ring
15 Plate
16 Spool
17 Valve
18 Spring
19 Stopper
20 Nut
21 Stopper
22 Spring
23 Spring
24 Valve
25 Piston
26 Plug
27 Screw
28 Body
29 Gasket
Structure
Structure
(2)
(2)
