3-18
DIFFERENTIAL DEVICE
Operation
Since the ring gear is linked with the right of the differential case and the bolt, the power
transferred to the ring gear makes the differential device revolve.
And also, the left and right of the differential case are connected with the left and right of the axle
shaft and the spline respectively, it delivers the power to the final drive.
If the load concerning in the left and right of the final drive is different, the shock is transferred to
the drive axle, the differential gear in the differential device runs, the power transferred to the
differential device adjusts the delivering rate to the left and right axle shaft.
Consequently, it guarantees for safety of drivers.
(1)
4)
10
2
3
4
6
5
7
3
4
5
1
9
10
6
15L7MPT19

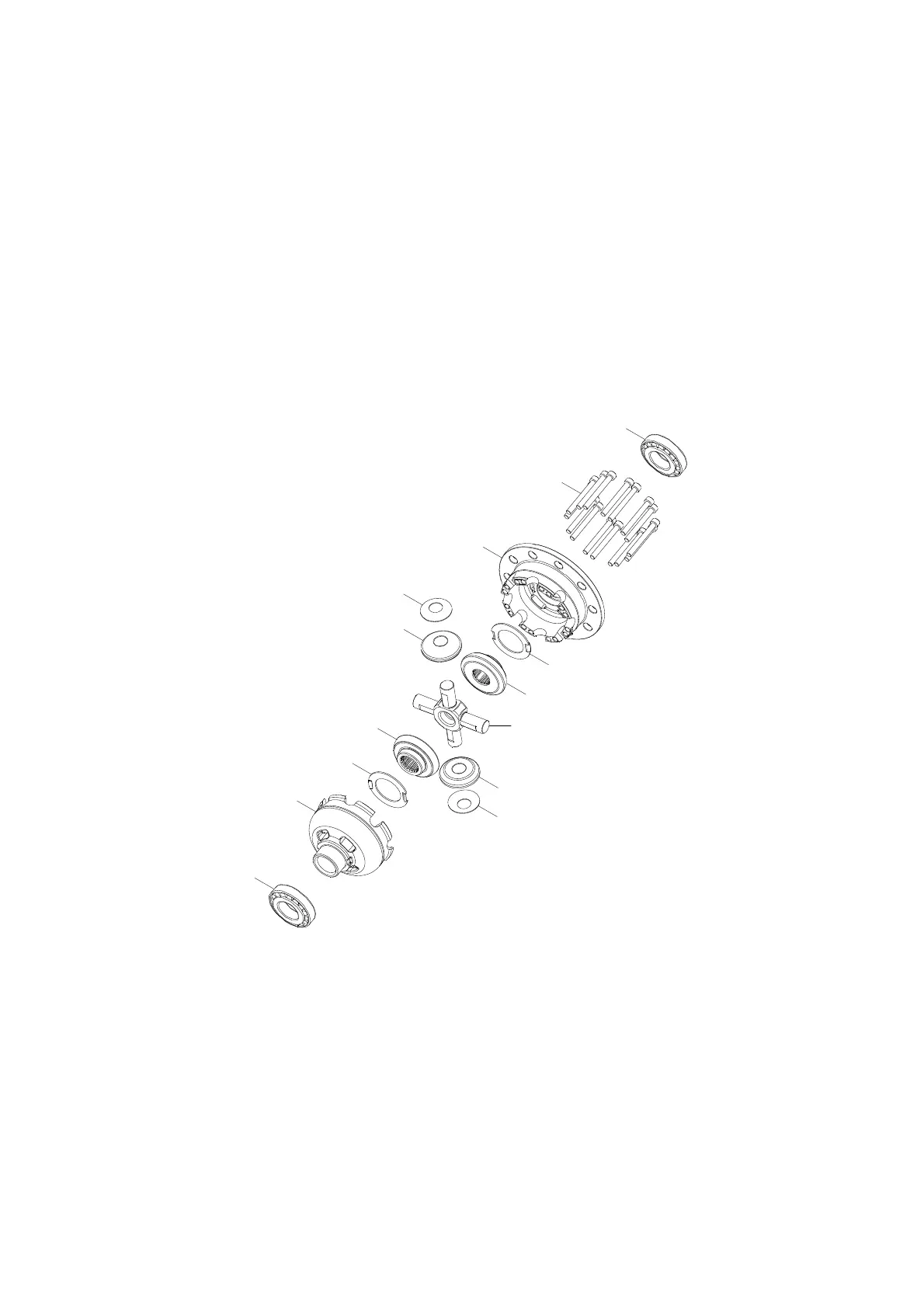

Structure
(2)
1 Differential case (RH)
2 Differential case (LH)
3 Thrust washer
4 Differential gear
5 Thrust washer
6 Differential gear
7 Differential spider
9 Socket bolt
10 Taper roller bearing
