3.8.17 PLACE THE WIRING HARNESS
BATTERY TERMINALS UNDER THE
BATTERYSTRAP(SEEFIG.36).
SUGGESTION:
NEVER CONNECT THE BATTERY UNTIL
YOU ARE READY TO START THE ENGINE.
SEAL THE BATTERY TERMINALS WITH
PLASTICTAPETOAVOIDTHATEVENT UAL
VIBRATIONS MIGHT DISCONN ECT THE
TERMINALS.
3.8.18 SCREW THE SPARK CAP ON THE
H.T.COIL(SEEFIG.37).
3.8.19 FIX THE CAP TO THE H.T. CABLE
WITHAPLASTICCLAMP(SEEFIG.38).
· INSTALLTHESPARKPLUG.
TORQUEAT20÷26Nm(175÷230 inlb)
· INSTALL THE CAP ON THE SPARK
PLUG.
3.9 INSTALLTHEINTAKESILENCER
MAKE SURE THAT THE FILTER HAS THE
INLETHOLESTOWARDSTHEUPPERSIDE.
FIX THE FILTER ON THE CARB. WITH A
STEEL CLAMP AND THE FILTER TO THE
CHASSIS SIDE RAILS WITH PLASTIC
CLAMPS(SEEFIG.39).

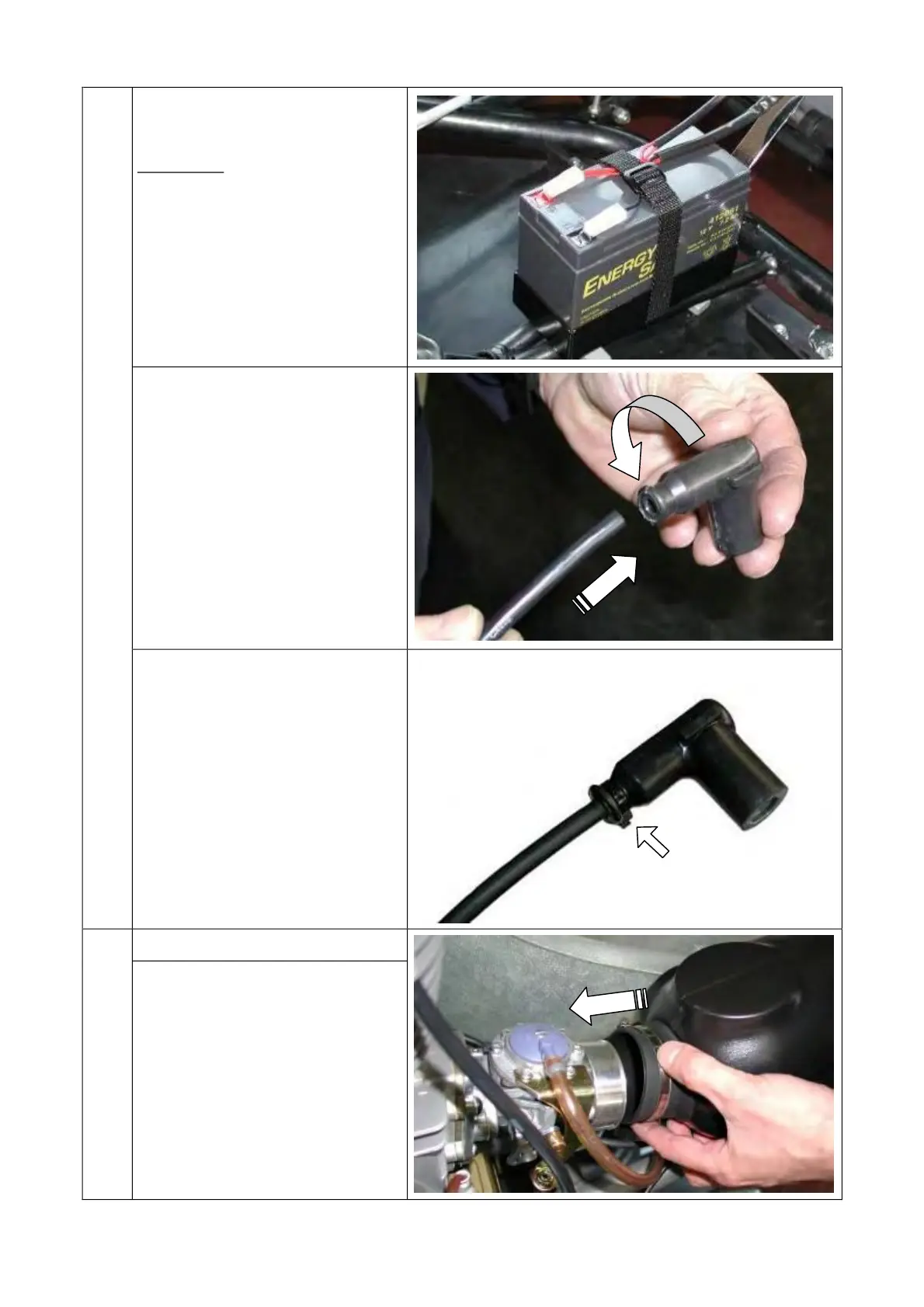

Fig.36
Fig.37
Fig.38
Fig.39
