IAME Parilla X30 User Manual

MAN-044/A
1

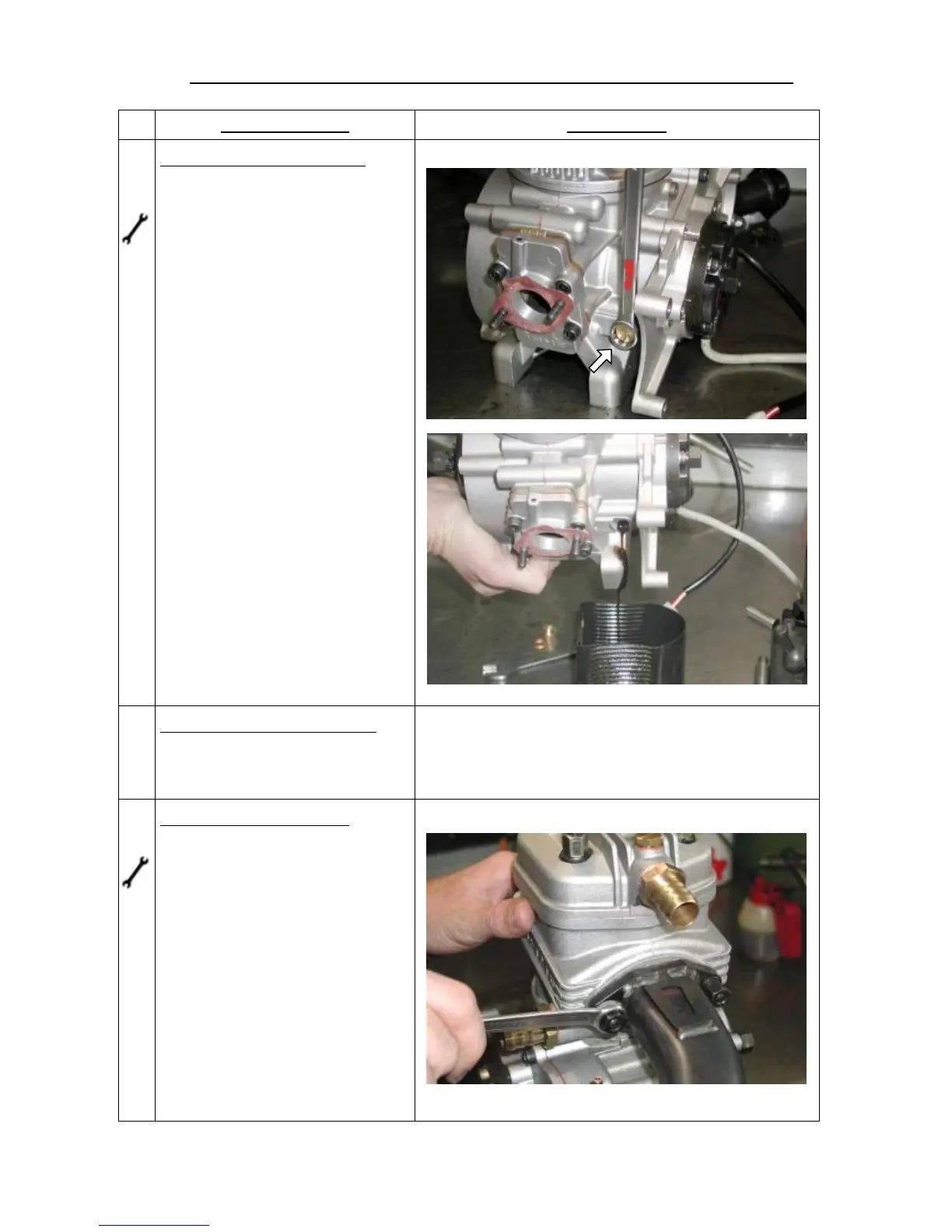

1 – X30 125cc RL – TaG ENGINE DISASSEMBLY
OPERATIONS PICTURES
1.
DISCHARGE OIL FROM THE ENGINE
- UNSCREW THE OIL LEVEL PLUG
(see Fig.1).
(14mm socket wrench)
- TILT THE ENGINE TO DISCHARGE OIL
(see Fig.2).
2.
FIX THE ENGINE ON THE BENCH VICE
- SCREW ON N°2 SCREWS M8x60 ON THE
CRANKCASE
BENCH TOOL (see attached drawing )
3.
REMOVE THE EXHAUST HEADER
- UNSCREW N°2 NUTS M8 (see Fig. 3).
(13mm SOCKET WRENCH)
- REMOVE N°2 WASHERS
- REMOVE THE EXHAUST GASKET
Fi
g
.1
Fi
g
.2
Fig.3
