IAME Parilla X30 User Manual

MAN-044/A
7

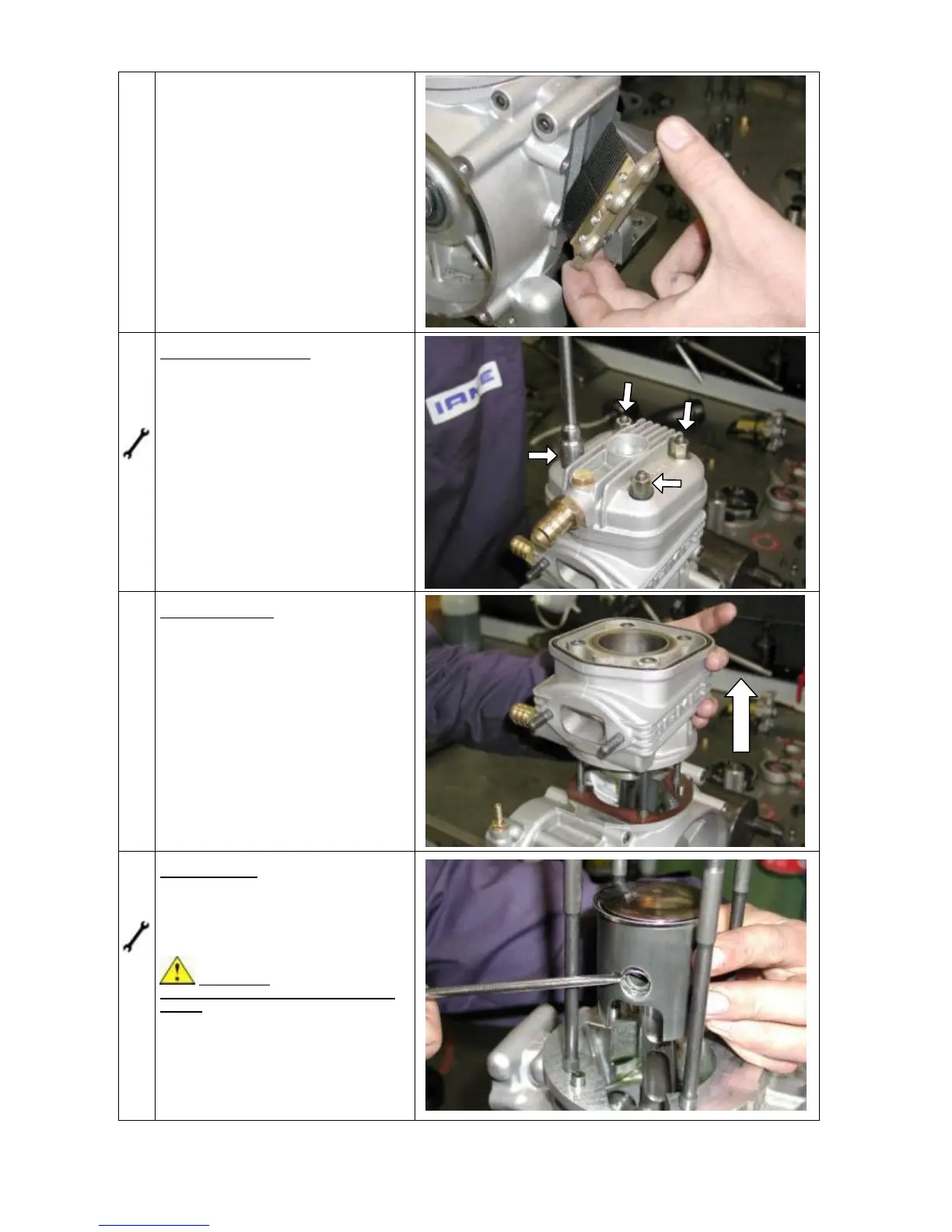

- REMOVE REED GROUP
(see Fig.24).
- REMOVE INNER WASHER FROM
REED GROUP
11.
REMOVE CYLINDER HEAD
- UNLOOSE N°4 NUTS M8 BY HALF TURN
(CROSS PATTERN DISASSEMBLY),
REMOVE NUTS
(see Fig.25).
( 13mm HEXAGON RING WRENCH)
- REMOVE WASHERS
12.
REMOVE CYLINDER
(see Fig.26).
- REMOVE CYLINDER BASE GASKET
13.
REMOVE PISTON
- REMOVE CIRCLIPS FROM PISTON
(see Fig.27).
(SCREWDRIVER WITH ROUND EDGES)
ATTENTION:
DO NOT SCRATCH PISTON AND CIRCLIP
SEATS.
Fig.24
Fig.25
Fig.26
Fig.27
