IAME Parilla X30 User Manual

MAN-044/A
2
4.

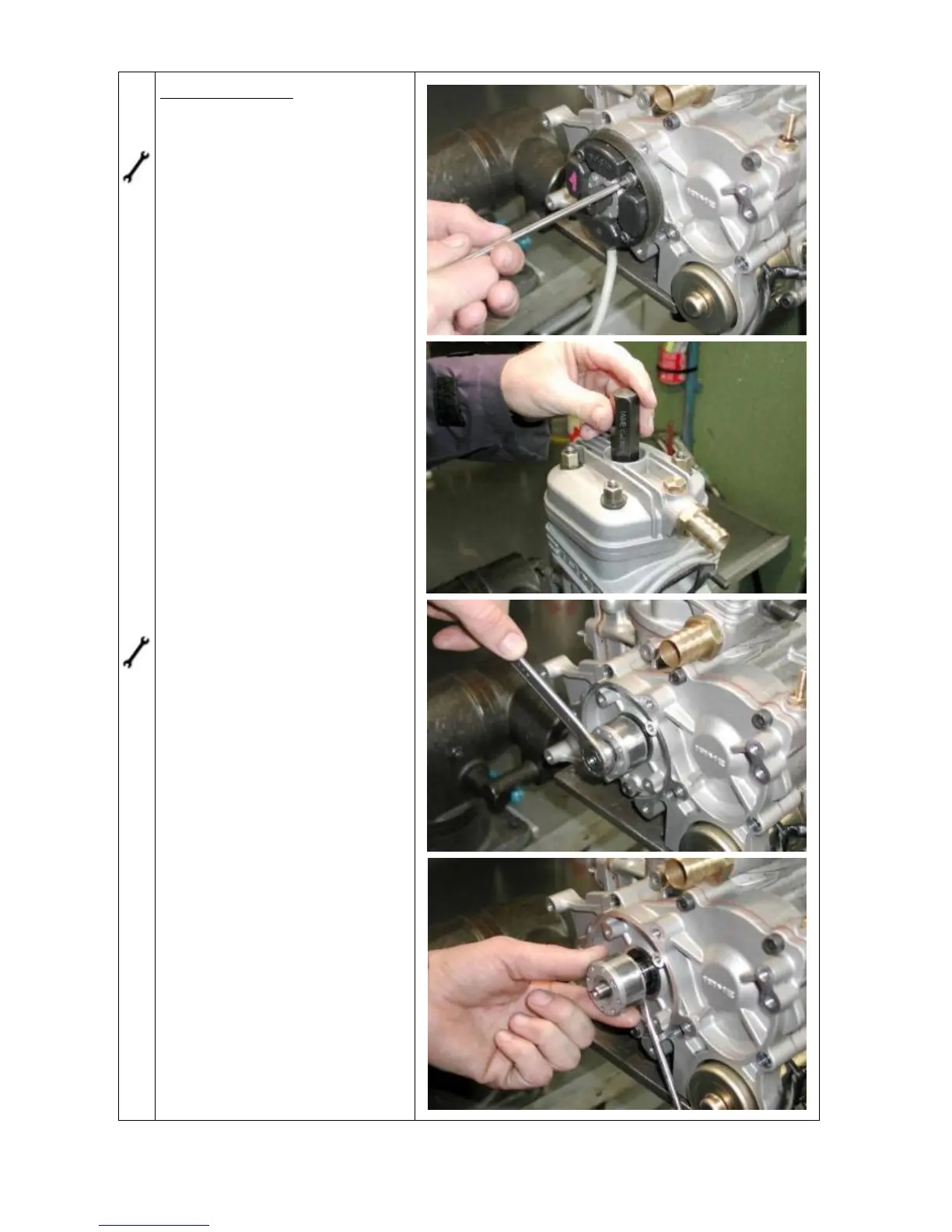

REMOVE THE IGNITION
- REMOVE THE STATOR
UNSCREW N°4 ALLEN SCREWS M5x25 (see
Fig.4)
(4mm ALLEN WRENCH - T TYPE)
- REMOVE SPARKPLUG AND INSTALL THE
THE PISTON FITTING (P.N. 10271) TO
PREVENT THE CRANKSHAFT FROM
TURNING (see Fig.5).
- REMOVE THE NUT M10 AND WASHER
(see Fig.6).
(17mm SOCKET WRENCH)
- EXTRACT THE ROTOR (see Fig.7).
(USE A SCREWDRIVER IF NECESSARY)
REMOVE KEY FROM SHAFT
Fig.4
Fig.5
Fig.6
Fig.7
