IAME Parilla X30 User Manual

MAN-044/A
3
5.

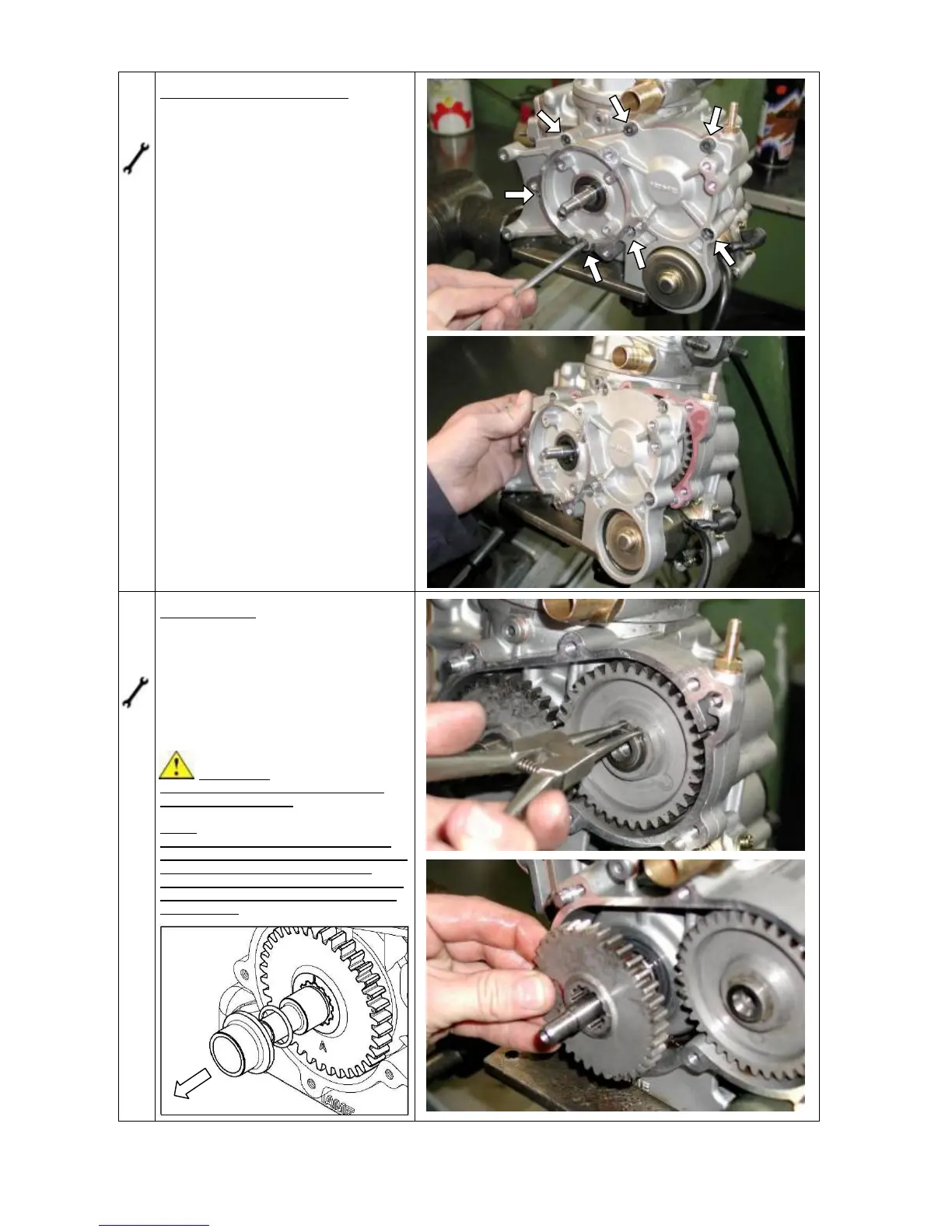

REMOVE THE GEAR BOX COVER
- UNSCREW N°7 ALLEN SCREWS M6x16
(see Fig.8).
(5mm ALLEN WRENCH - T TYPE)
- REMOVE COVER AND WASHER
(USE A PLASTIC MALLET IF NECESSARY)
(see Fig.9).
6.
REMOVE GEARS
- REMOVE RETAINING RINGS FROM THE
CRANKSHAFT AND BALANCE SHAFT
(see Fig.10).
(PLIERS FOR RETAINING RINGS)
- REMOVE GEAR ON THE CRANKSHAFT
(see Fig.11).
ATTENTION:
MARK THE GEAR FOR IDENTIFICATION
WHEN REASSEMBLING
NOTE:
IN THE ENGINES MNUFACTURED AFTER
SEPTEMBER ’05, THE FIXING OF THE GEAR
ON THE CRANKSHAFT IS MADE BY A
SPACER WITH AN “OR” WHICH IS PUSHED
AGAINST GEAR BY THE IGNITION ROTOR
(see drawing).
Fig.8
Fig.9
Fig.10
Fig.11
