IAME Parilla X30 User Manual

MAN-044/A
6

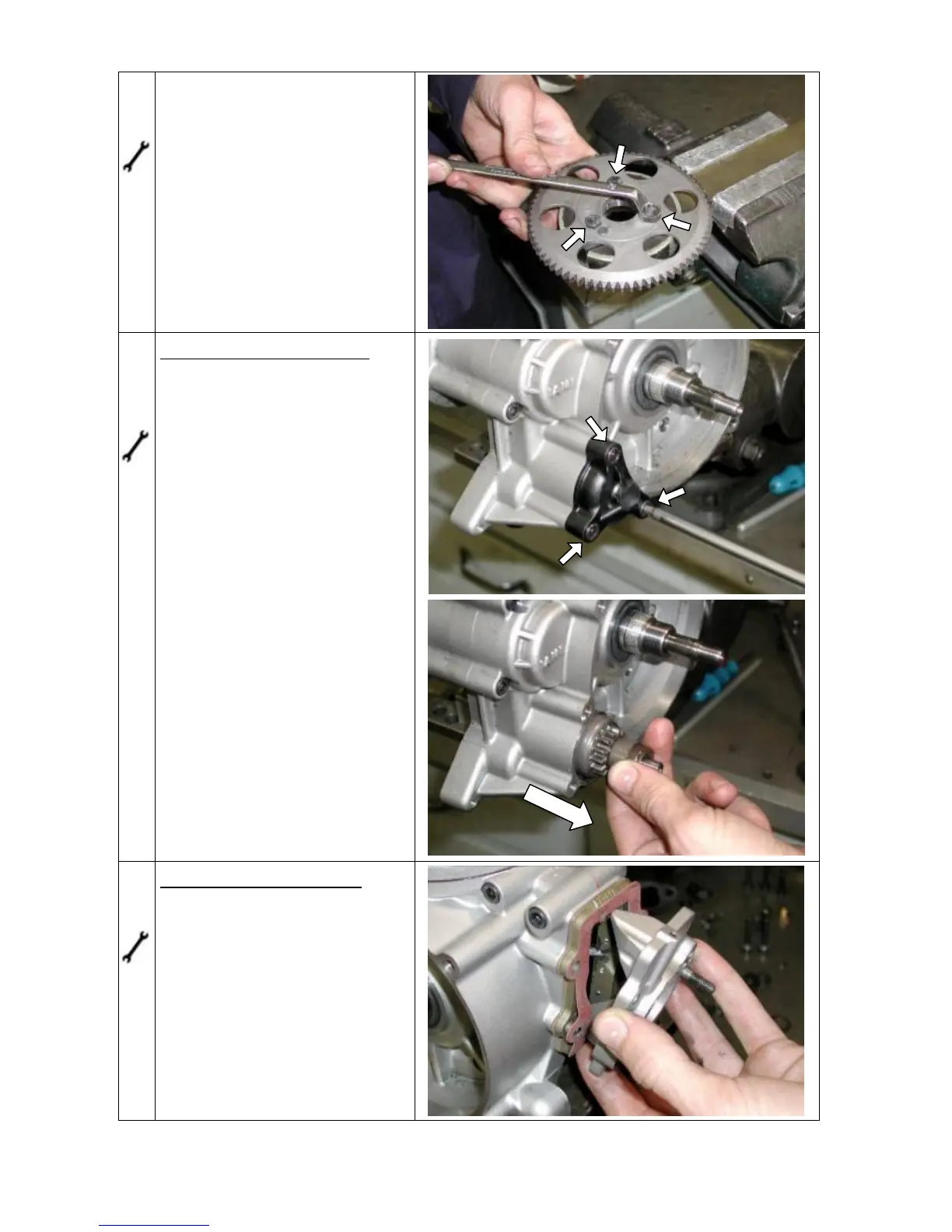

- REMOVE STARTING RING
FROM CLUTCH BODY
UNSCREW N°3 SCREWS M6x12 (see
Fig.20).
(10mm SOCKET WRENCH)
9.
REMOVE STARTER COUNTERSHAFT
- REMOVE STARTER COUNTERSHAFT
COVER
UNSCREW N°3 ALLEN SCREWS M6x25 (see
Fig.21).
( 5mm ALLEN WRENCH – T TYPE )
- EXTRACT STARTER COUNTERSHAFT
(see Fig.22).
10.
REMOVE CARB. INLET CONVEYOR
- UNSCREW N°4 ALLEN SCREWS M6x25
(see Fig.23).
(5mm ALLEN WRENCH –T TYPE )
- REMOVE OUTER GASKET FROM
CONVEYOR
Fig.20
Fig.21
Fig.22
Fig.23
