IAME Parilla X30 User Manual

MAN-044/A
5

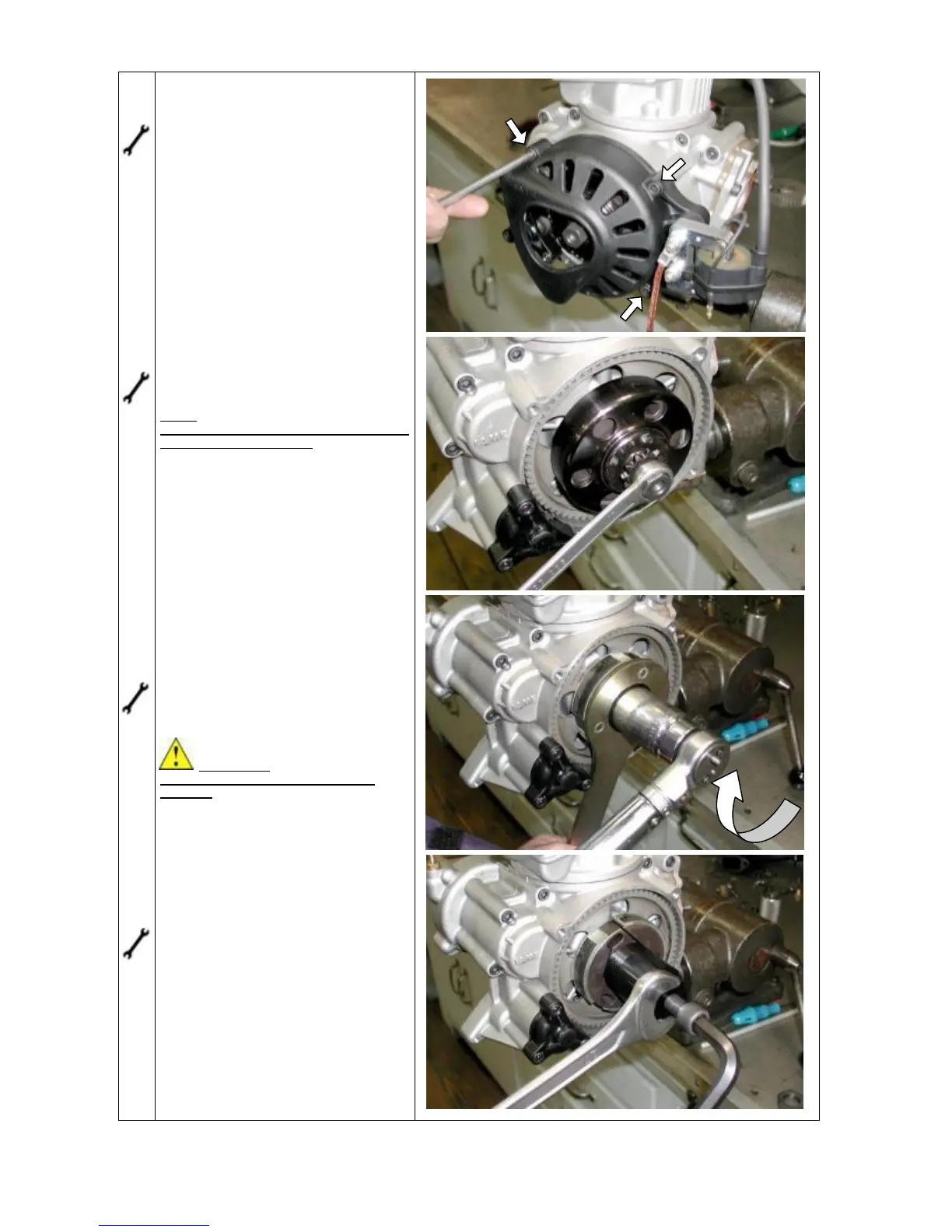

- REMOVE CLUTCH COVER
UNSCREW N°3 ALLEN SCREWS M6x25
(see Fig. 16).
(5mm ALLEN WRENCH – T TYPE)
- REMOVE THE LOCKING NUT M10 FROM
CLUTCH DRUM (see Fig.17).
(17mm SOCKET WRENCH )
NOTE:
MAKE SURE THAT THE PISTON STOP TOOL
IS INSTALLED (P.N. 10271)
- REMOVE OUTER WASHER, CLUTCH
DRUM, ROLLER CAGE AND INNER
WASHER
- REMOVE THE PISTON STOP TOOL
AND WITH THE CLUTCH LOCKING
WRENCH (P.N. 10270), REMOVE THE
LOCKING NUT M20 FROM CLUTCH BODY
(see Fig.18).
( 30 mm HEXAGON RING WRENCH)
ATTENTION:
TURN CLOCKWISE AS NUT HAS LEFT
THREAD.
- REMOVE CLUTCH BODY AND STARTING
RING FROM THE CRANKSHAFT WITH THE
CLUTCH DISASSEMBLY TOOL
(P.N. 10272-C) (see Fig.19).
(12mm ALLEN WRENCH
(27mm WRENCH)
Fig.16
Fig.17
Fig.18
Fig.19
