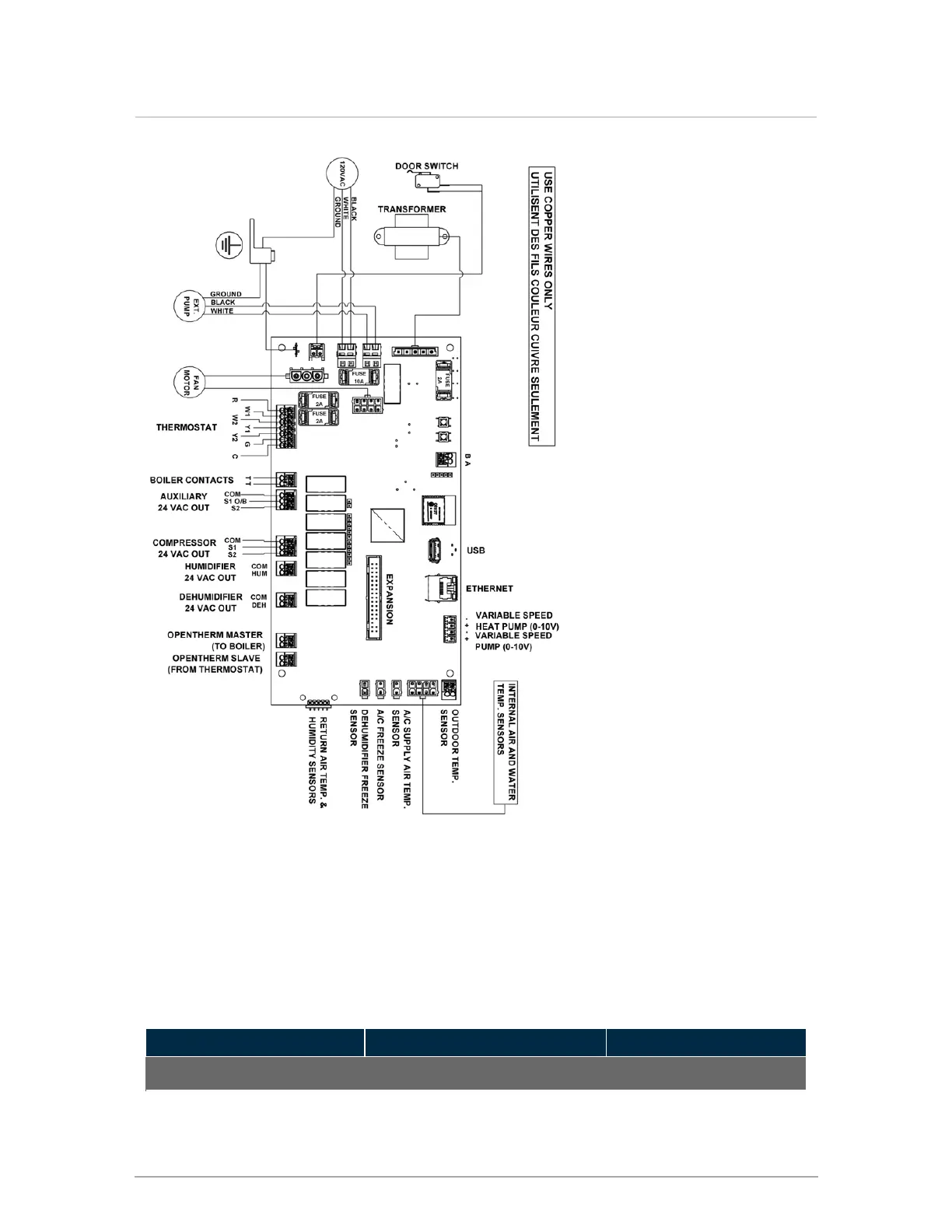

Figure 32 Air handling appliance - electrical wiring diagram. OpenTherm is a planned feature not currently

available.

2.7.1 Thermostat connections

The appliance is compatible with conventional and power stealing thermostats. OpenTherm is a

planned feature not currently available.

Low Voltage Terminal Description Notes

Thermostat

Section: Installation

Main Page
