IBC AHU 800 - Wiring Single-Stage Heating with a Boiler or Combi Boiler

2.8.1 Wiring single-stage heating with a
boiler or combi boiler
Required if the boiler or combi does not have control of the pump.
Optional: 'G' for fan-only operation and 'C' for t-stat common.
Dry contact from the air handler to the boiler or combi boiler enables a call for heat.

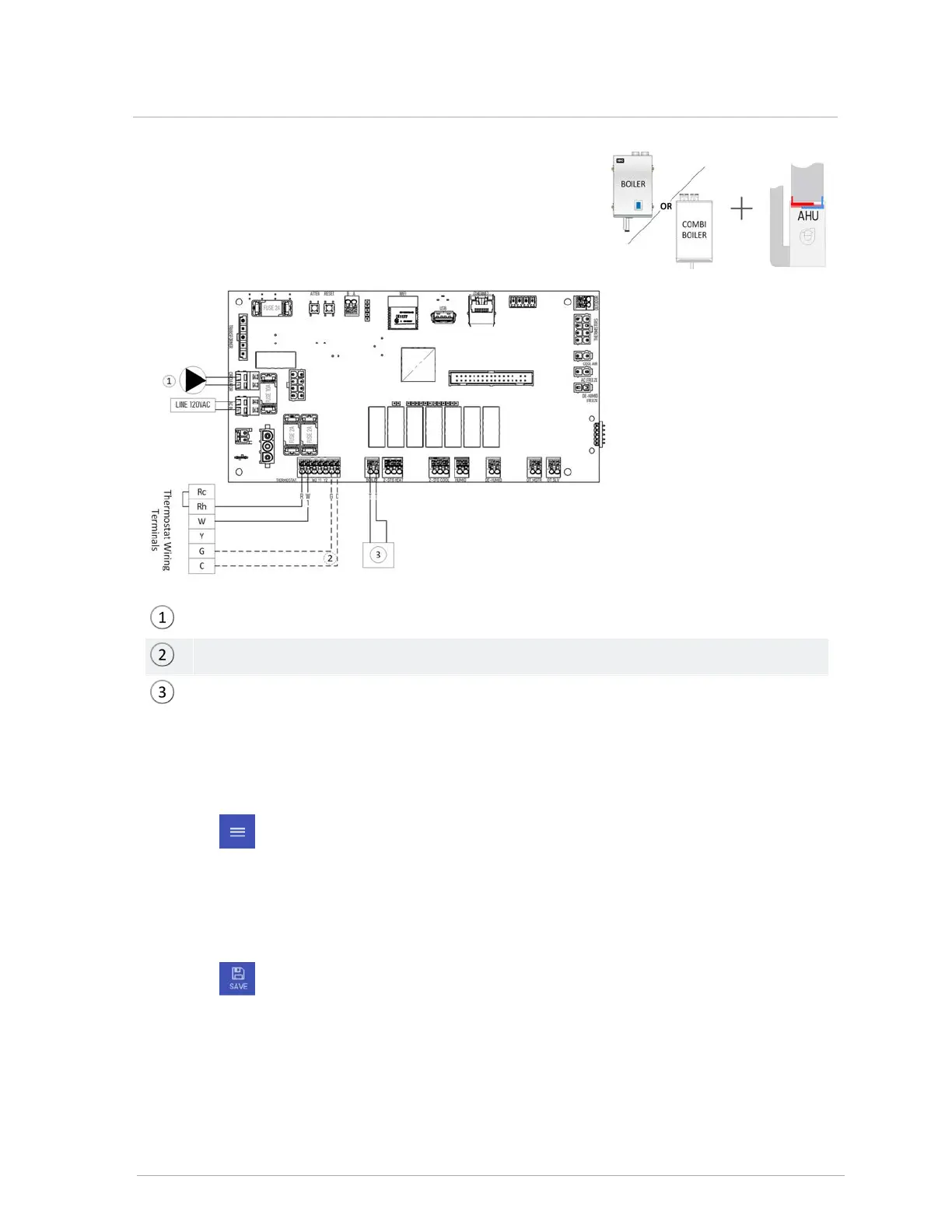

Figure 36 Single-stage heating with a boiler or combi boiler wiring
Settings in the IBCconnect app
1.
Tap (menu icon), and select Basic Settings.
2. Set Heat Mode to 1 Stage Heat.
3. Set Cool Mode to No Cooling.
4. Set Boiler Heating to Boiler Only.
5. Set Tankless Mode to On.
6.
Tap (SAVE).
