IBC AHU 800 - Wiring Single-Stage Heating with a Tankless Water Heater as a Heat Source

2.8.2 Wiring single-stage heating with a
tankless water heater as a heat source
Required: Pump initiates a call for tankless water heater heat source.
Optional: 'G' for fan-only operation and 'C' for t-stat common.

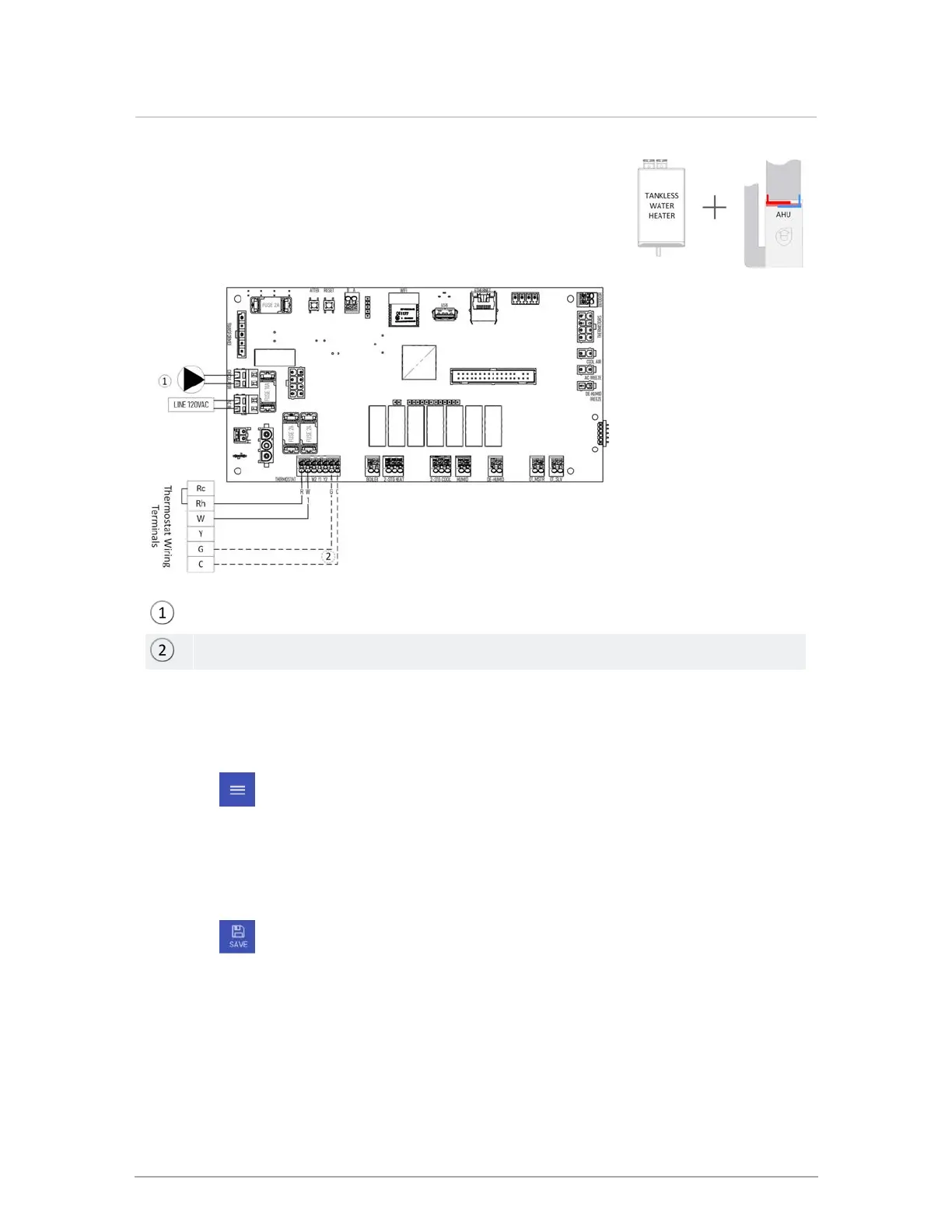

Figure 37 Single-stage heating with a tankless water heater as a heat source wiring
Settings in the IBCconnect app
1.
Tap (menu icon), and select Basic Settings.
2. Set Heat Mode to 1 Stage Heat.
3. Set Cool Mode to No Cooling.
4. Set Boiler Heating to Boiler Only.
5. Set Tankless Mode to On.
6.
Tap (SAVE).
