IBC AHU 800 - Wiring Single-Stage Heating, Single-Stage Cooling, with the Tankless Water Heater as the Heat Source

2.8.9 Wiring single-stage heating,
single-stage cooling, with the
tankless water heater as the heat
source
Required: The pump initiates a call from the tankless water heater heat source.
Optional: 'G' for fan-only operation and 'C' for t-stat common.
Required: Sensors for cooling applications are available separately as IBC A/C sensor kit
P-1015.

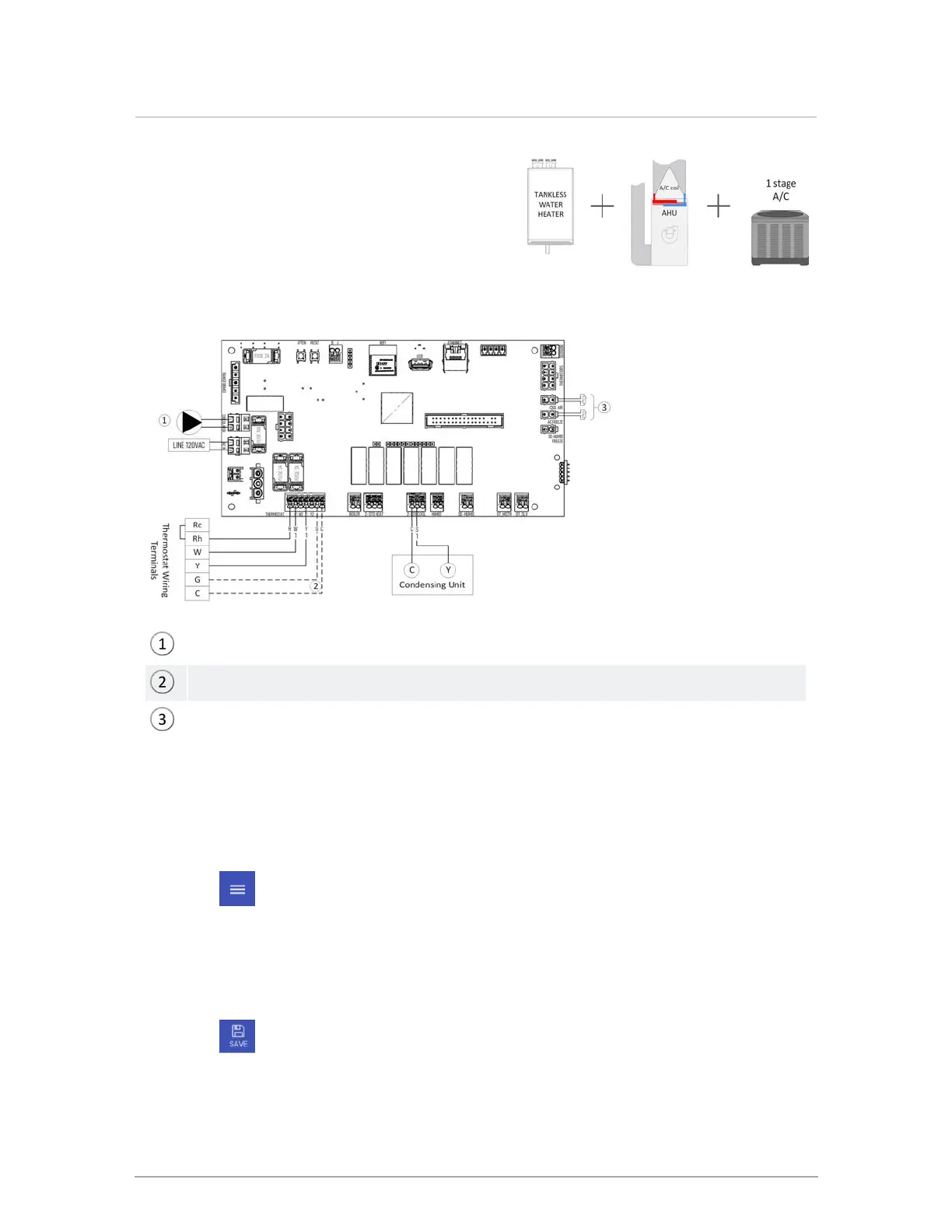

Figure 44 Single-stage heating, single-stage cooling, with the tankless water heater as the heat source
wiring
Settings in the IBCconnect app
1.
Tap (menu icon), and select Basic Settings.
2. Set Heat Mode to 1 Stage Heat.
3. Set Cool Mode to 1 Stage Cool.
4. Set Boiler Heating to Boiler Only.
5. Set Tankless Mode to On.
6.
Tap (SAVE).
