Cabinet and air supply dimensions

Dimensions for the AHU 800 model

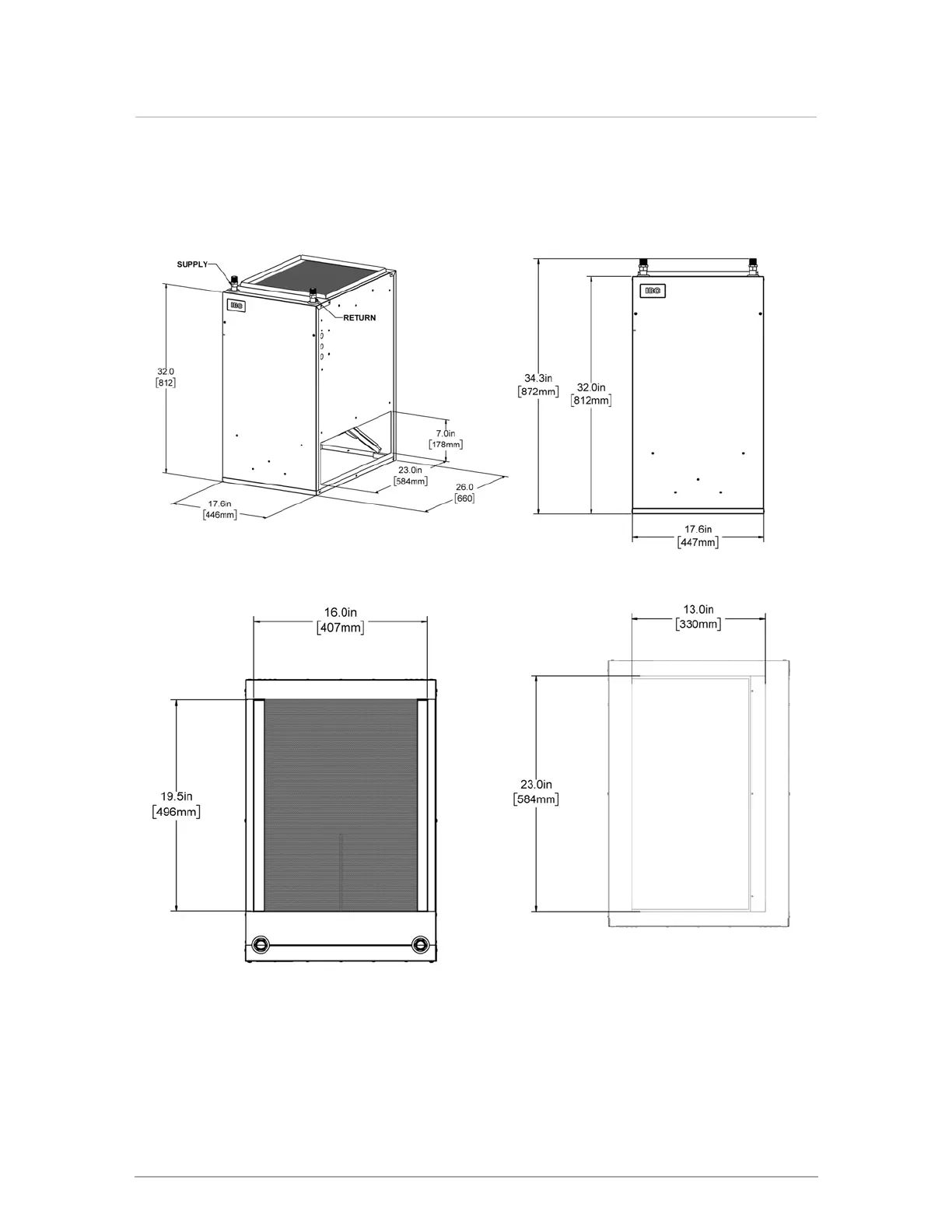

Figure 1 Front / right view Figure 2 Frontal view

Figure 3 Top supply air opening Figure 4 Bottom return air opening
