Gas valve inlet Nut retainer
Gasket Gas valve outlet pipe
Inlet gas pressure test port Brass union nut
Manifold gas pressure test port Gasket
Low fire adjustment (offset pressure) Mixer
High Fire Adjustment Fan O-ring
Gas valve Fan coupler
O-ring Fan

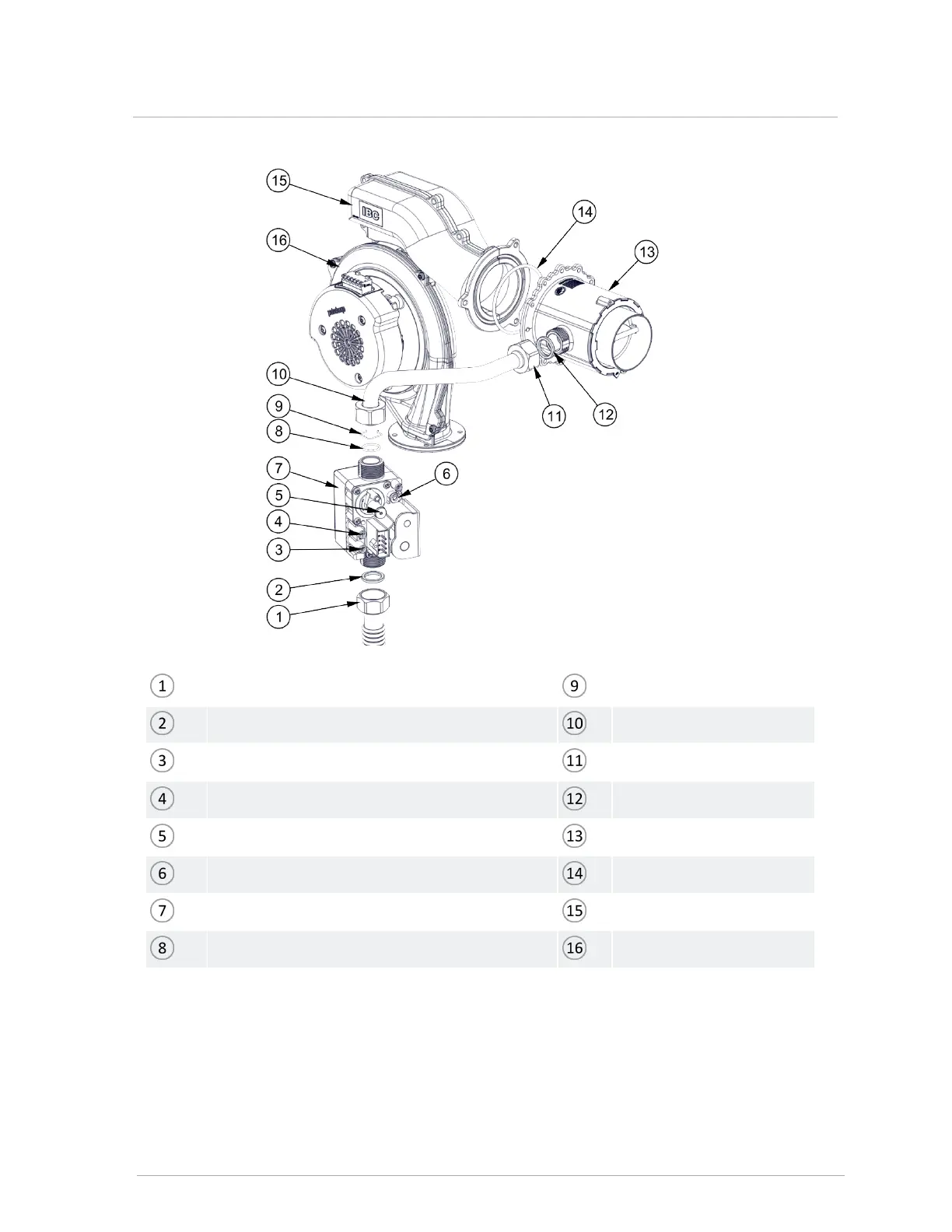

Figure 42 Gas valve and fan components
6.3.3.1 Measuring the inlet gas pressure
To perform a gas pressure test, you will need to use a Torx 15 screwdriver and a manometer.
