INSTALLATION AND OPERATION INSTRUCTIONS
1-28
SL 10-85 G3, SL 14-115 G3, SL 20-160 G3, SL 30-199 G3 MODULATING GAS BOILERSSL 10-85 G3, SL 14-115 G3, SL 20-160 G3, SL 30-199 G3 MODULATING GAS BOILERS

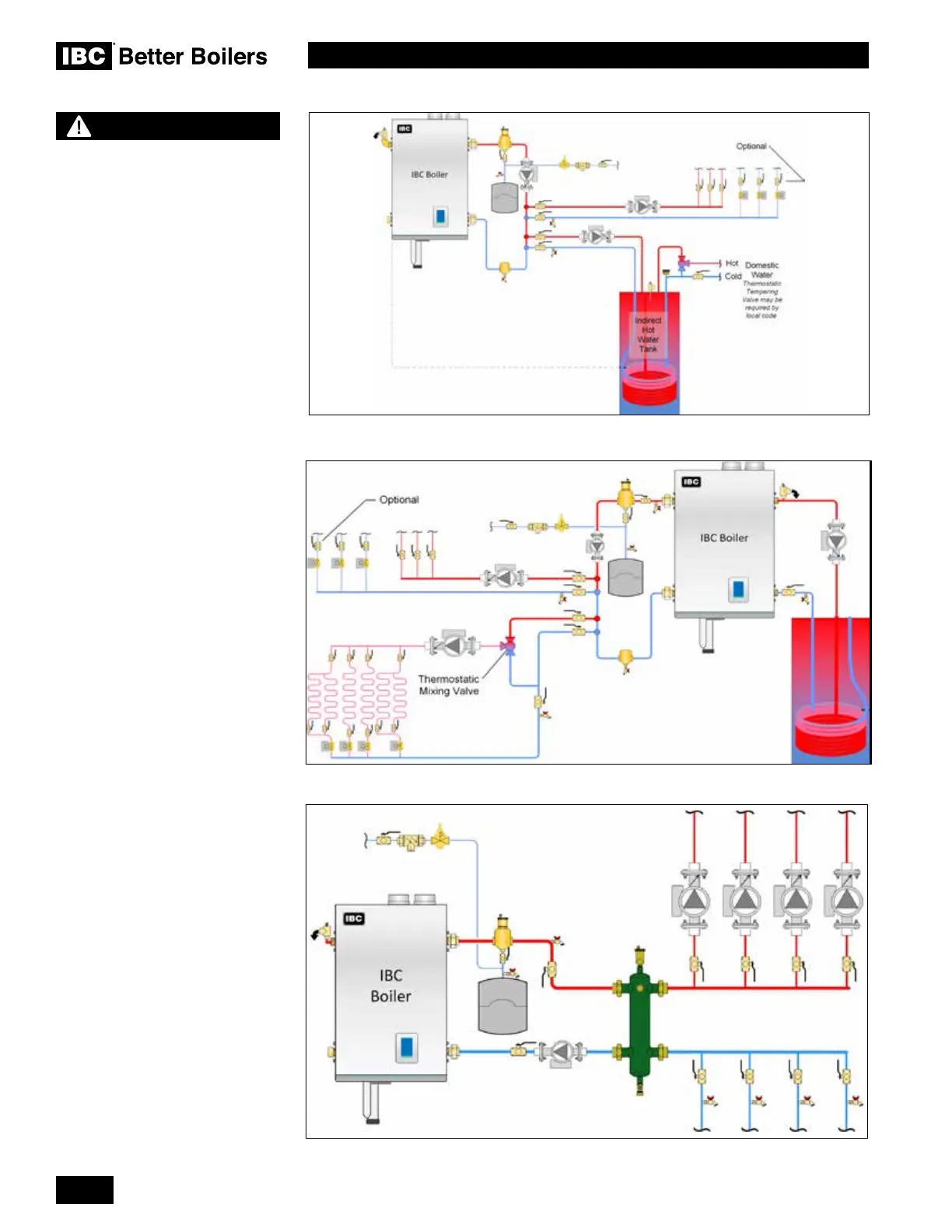

Figure 35: Indirect Domestic Hot Water piping concept
Figure 37: Basic Primary-Secondary piping with hydraulic separator concept
NOTE
The piping drawings in this
manual are simple schematic
guides to a successful
installation. There are many
necessary components not
shown, and details such as
thermal traps are left out so the
drawings have greater clarity.
We require that our boilers
be installed by licensed and
experienced trades people who
are familiar with the applicable
local and national codes. System
design is to be completed by an
experienced hydronic designer
or Engineer. It is necessary to
carefully read and follow these
installation instructions along
with the application drawing that
ts your system.
Figure 36: Two sided piping, DHW and space heating piping concept
