IBERITAL DE RECAMBIOS, S.A.
1.- INSTRUCTIONS FOR THE USER (TURN ON)

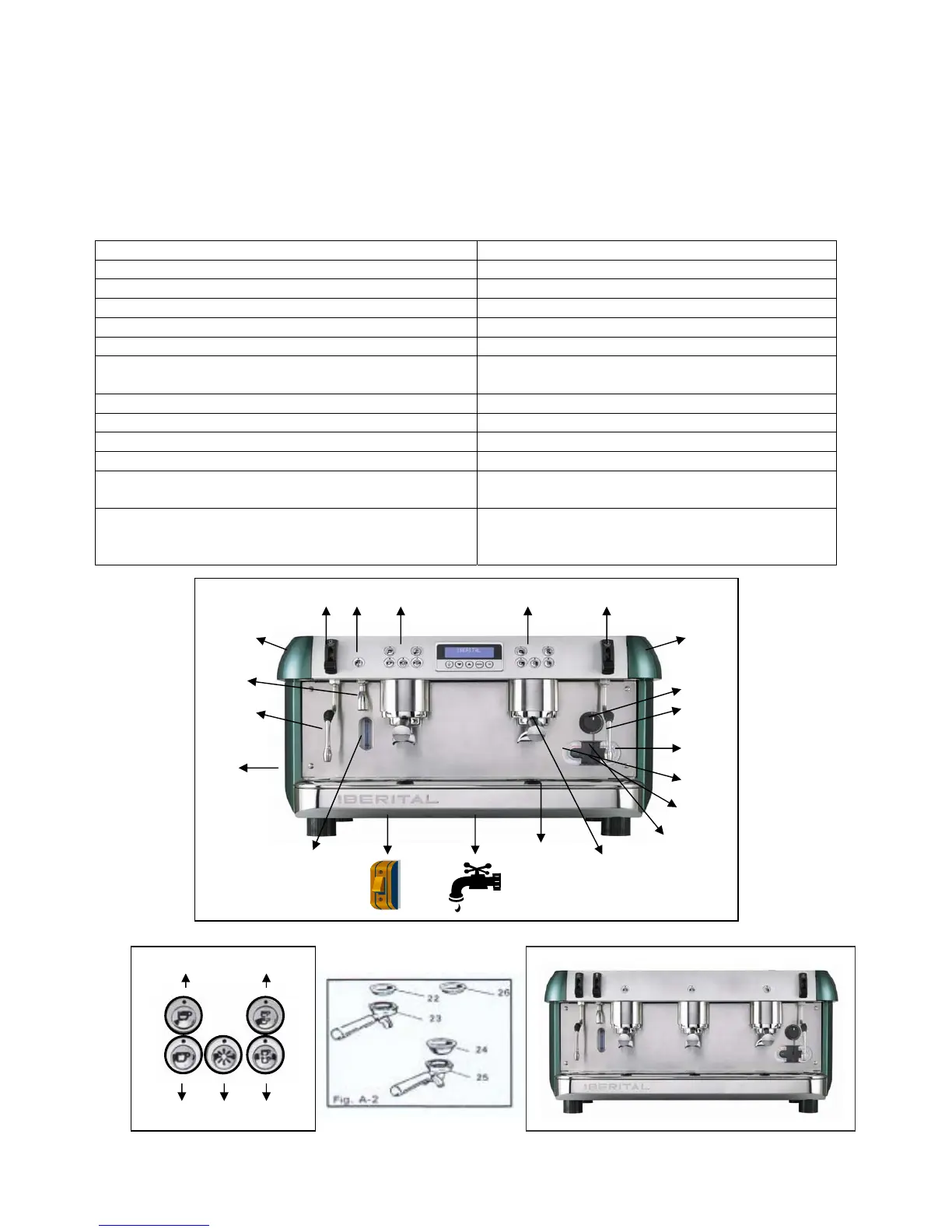

1.1.- DESCRIPTION
1) Coffee feed control buttons CPU 14) ON/OFF red light
2) Feed button, one espresso coffee 15) Element working. Green light
3) Feed button, two espresso coffees 16) Drip tray
4) Non-stop coffee feed button 17) Data plate
5) Feed button, one large coffee 18) Detachable modular lateral panels
6) Feed button, two large coffees 19) Hot water button
7) Steam valve control 20) Water stopcock (Not included. Must
be installed by an official city plumber).
8) Hot water jet 21) Boiler water level indicator
9) Steam jet 22) Filter one coffee
10) Pump pressure gauge 23) Filter holder, one coffee
11) Boiler pressure gauge 24) Filter two coffees
12) Mains switch (Non included. Must be
Installed by an official city technician).
25) Filter holder, two coffees
13) Three way power switch: OFF,
1= (ON) (Automatic water fill-up ON)
2= Control (heating element ON).
26) Cleaning filter (blind)
1 7
7
8
9
9
10
11
