9-4 IBM Personal Computer User Guide
Locating system board jumpers and connectors
(machine type 2196)

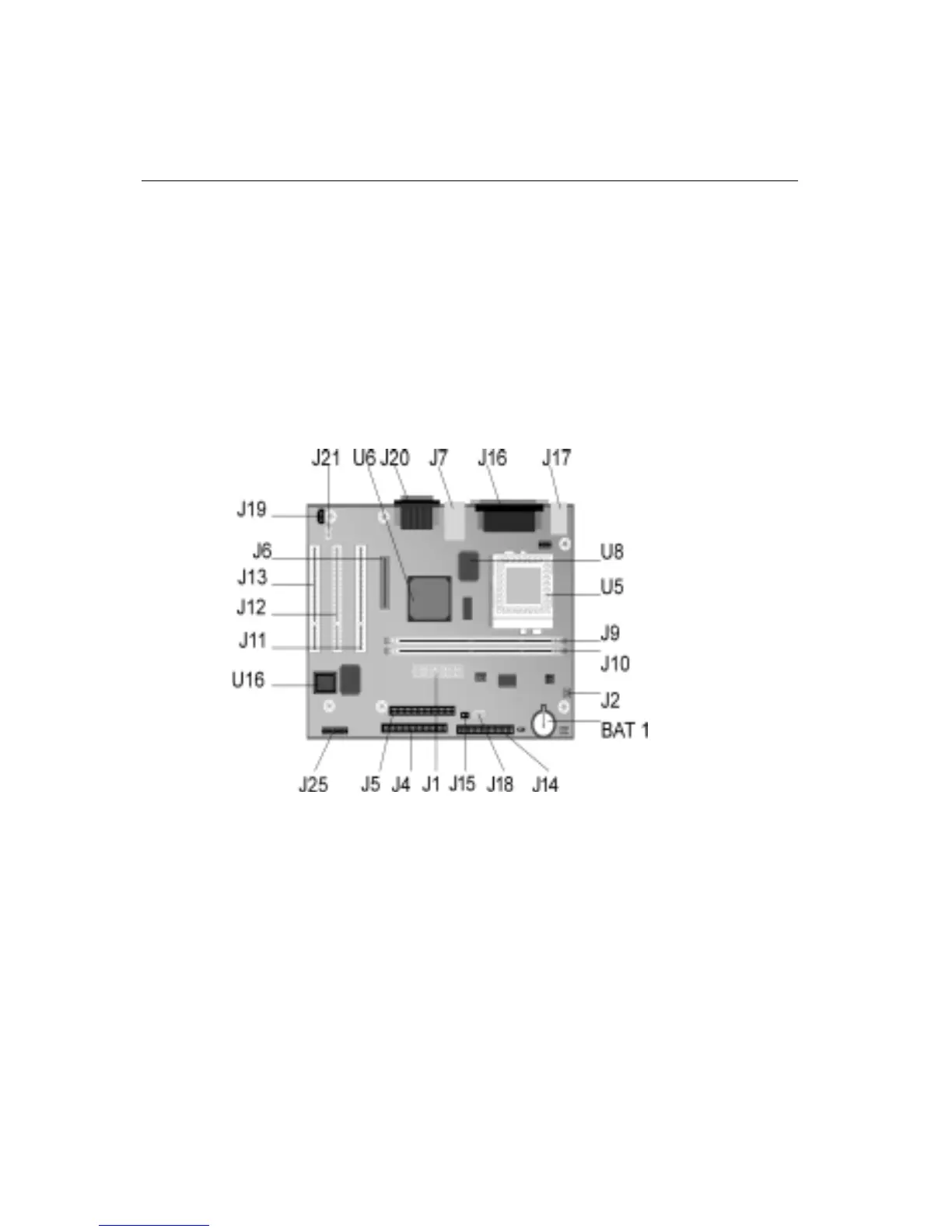

The following figure shows the locations of the jumpers and connectors on the
system board. The jumpers are preset in the factory. Do not change these default
jumper settings. For a list of connectors with their corresponding functions, see the
section ”Connector functions” on page A-9.
