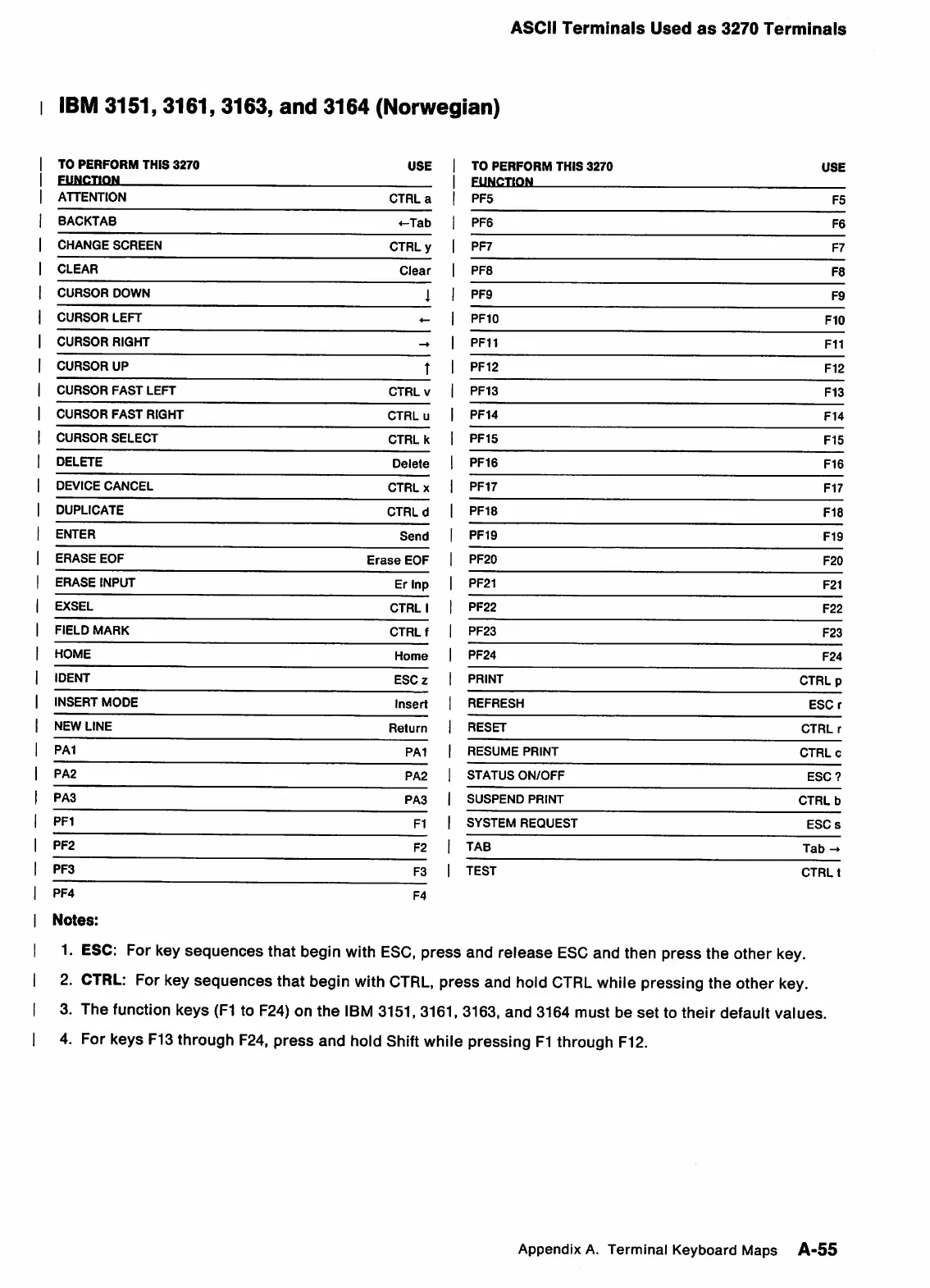

ASCII
Terminals
Used
as
3270
Terminals
I
IBM
3151,3161,
3163,
and
3164
(Norwegian)
TO
PERFORM
THIS
3270
FUNCTION
USE
TO
PERFORM
THIS
3270
FUNCTION
USE
ATTENTION
CTRL
a
PF5
F5
BACKTAB
<-Tab
PF6
F6
CHANGE
SCREEN
CTRLy
PF7
F7
CLEAR
Clear
PF8
F8
CURSOR
DOWN
i
PF9
F9
CURSOR
LEFT
4—
PF10
F10
CURSOR
RIGHT
—¥
PF11
F11
CURSOR
UP
T
PF12
F12
CURSOR
FAST
LEFT
CTRL
V
PF13
F13
CURSOR
FAST
RIGHT
CTRL
u
PF14
F14
CURSOR
SELECT
CTRL
k
PF15
F15
DELETE
Delete
PF16
F16
DEVICE
CANCEL
CTRLx
PF17
F17
DUPLICATE
CTRLd
PF18
F18
ENTER
Send
PF19
F19
ERASE
EOF
Erase
EOF
PF20
F20
ERASE
INPUT
Er
Inp
PF21
F21
EXSEL
CTRL
1
PF22
F22
FIELD
MARK
CTRLf
PF23
F23
HOME
Home
PF24
F24
IDENT
ESCz
PRINT
CTRLp
INSERT
MODE
Insert
REFRESH
ESCr
NEW
LINE
Return
RESET
CTRL
r
PA1
PA1
RESUME
PRINT
CTRLc
PA2
PA2
STATUS
ON/OFF
ESC?
PAS
PAS
SUSPEND
PRINT
CTRL
b
PF1
F1
SYSTEM
REQUEST
ESCs
PF2
F2
TAB
Tab
PF3
F3
TEST
CTRLt
PF4
F4
Notes:
1.
ESC:
For
key
sequences
that
begin
with
ESC,
press
and
release
BSC
and
then
press
the
other
key.
2.
CTRL:
For
key
sequences
that
begin
with
CTRL,
press
and
hold
CTRL
while
pressing
the
other
key.
3.
The
function
keys
(F1
to
F24)
on
the
IBM
3151,
3161,
3163,
and
3164
must
be
set
to
their
default
values.
4.
For
keys
F13
through
F24,
press
and
hold
Shift
while
pressing
F1
through
F12.
Appendix
A.
Terminal
Keyboard
Maps
A-55
