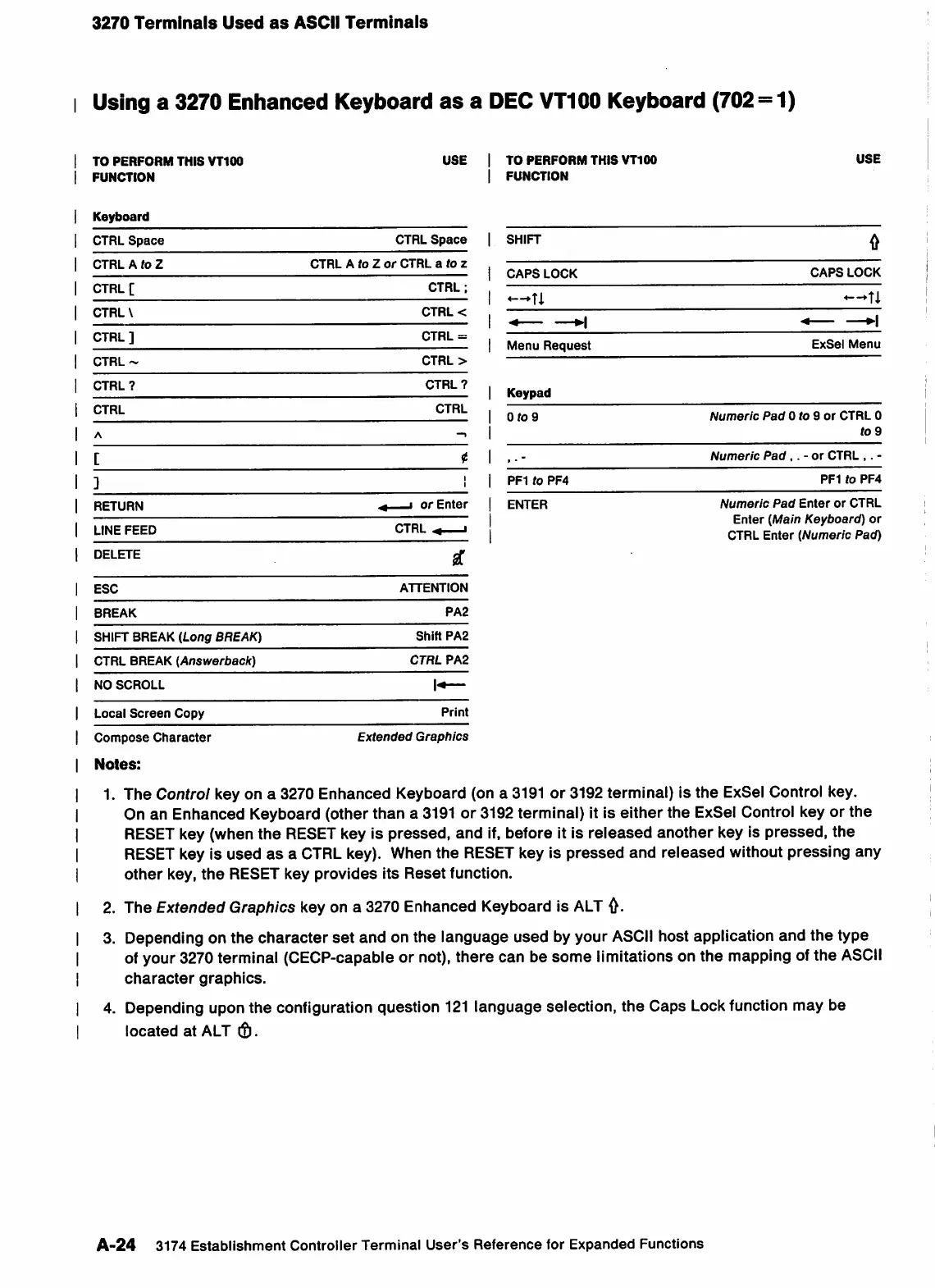

3270 Terminals Used as ASCII Terminals
Using a 3270 Enhanced Keyboard as a DEC VT100 Keyboard (702= 1)
TO PERFORM THIS VT100
USE
FUNCTION
Keyboard
CTRL Space
CTRL Space
CTRL A to Z
CTRL A to Z or CTRL a to z
CTRL[
CTRL :
CTRL\
CTRL<
CTRL]
CTRL =
CTRL~
CTRL >
CTRL?
CTRL?
CTRL
CTRL
A
[
0
] 1
RETURN
^ 1 or Enter
LINE FEED
CTRL ^ 1
DELETE
ss:
ESC
ATTENTION
BREAK
PA2
SHIFT BREAK {Long BREAK)
Shift PA2
CTRL BREAK {Answerback)
CTRL PA2
NO SCROLL
1^
Local Screen Copy
Print
Compose Character
Notes:
Extended Graphics
USE
j FUNCTION
SHIFT
CAPS LOCK
CAPS LOCK
—Ti
••—
•I
H
Menu Request
ExSel Menu
Keypad
OtoS
Numeric Pad 0 to 9 or CTRL 0
to 9
,. - Numeric Pad ,. - or CTRL ,. -
PF1 to PF4
PF1 to PF4
I ENTER
I
Numeric Pad Enter or CTRL
Enter {Main Keyboard) or
CTRL Enter {Numeric Pad)
1. The Control key on a 3270 Enhanced Keyboard (on a 3191 or 3192 terminal) Is the ExSel Control key.
On an Enhanced Keyboard (other
than a 3191 or 3192 terminal) it is either the ExSel Control key or the
RESETkey (when the RESETkey is pressed, and if, before it is released another key is pressed, the
RESET key is used as a CTRL key). When the RESET key is pressed and released without pressing any
other key, the RESET key provides its Reset function.
2. The ExtendedGraphics keyon a 3270 Enhanced Keyboard is ALT 0.
3. Depending on the character set and on the language used by your ASCII host application and the type
ofyour 3270terminal (CECP-capableor not),there can be some limitations on the mapping ofthe ASCII
character graphics.
4. Depending upon the configuration question 121 language selection, the Caps Lockfunction may be
located at ALT (£).
A-24 3174 Establishment Controller Terminal User's Reference for Expanded Functions
