3270
Devices
PC
Legend:
3270
Device
Token
Ring
----Direct
Connect
IBM
Host
PC
3174
Controller
(Medium-Cluster)
PC
--.:s:-
Communication
Facility
3174
Controller
(Large-Cluster)
3270
Device
3270
Device

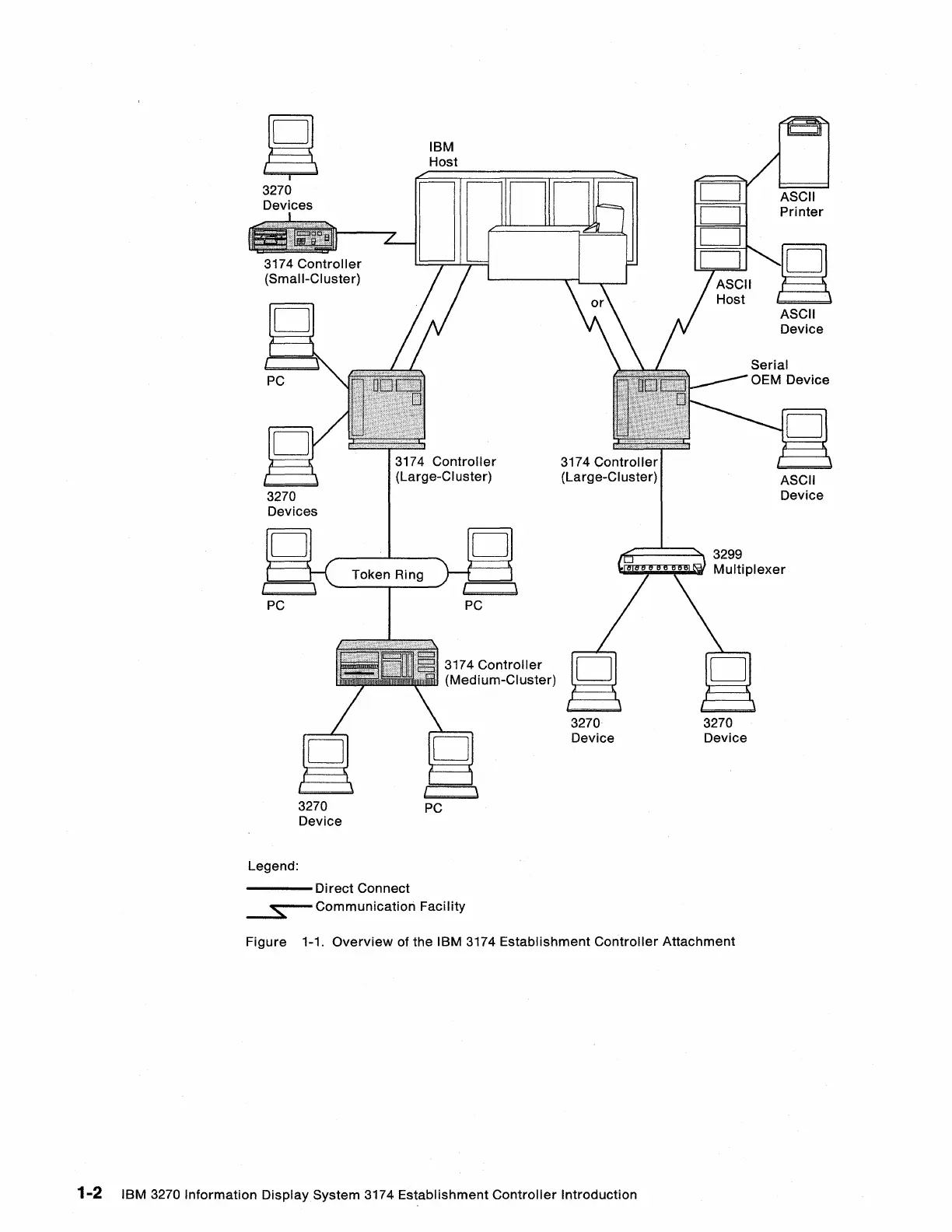

Figure
1-1.
Overview
of
the
IBM
3174
Establishment
Controller
Attachment
1-2
IBM
3270
Information
Display
System
3174
Establishment
Controller
Introduction
ASCII
Printer
ASCII
Device
ASCII
Device
12
14
Table of Contents
Table of Contents
10
Default Chapter
4
Terminal Multiplexer
4
Table of Contents
10
Chapter 1. Introducing the 3174 Establishment Controller
12
Controllers and Terminals
14
Programming Support
14
Customer Setup
15
Problem Determination
15
Chapter 2. Features and Functions of the 3174 Controller
16
• 2.4MB Diskette Drive
16
Asynchronous Emulation Adapter (AEA) Feature for ASCII Connectivity
17
2.4MB Diskette Drive and 2.4MB Diskette
21
20MB Fixed Disk Drive
21
16/4Mbps Token-Ring Network Gateway Feature
22
Host-Gateway Relationship
22
3174-Workstation Relationship
23
Program Support
23
Type 1 Teleprocessing Communication Adapter
24
Type 2 Teleprocessing Communication Adapter
24
4Mbps Type 3 Communication Adapter
24
Type 3A Dual Speed (16/4Mbps) Communication Adapter
25
Storage
25
3174 Storage Expansion
25
Encrypt/Decrypt Adapter
26
Concurrent Communication Adapter (CCA)
26
Single Link Multi-Host Support
27
Central Site Customizing Utility (CSCU)
27
Central Site Change Management (CSCM)
28
Intelligent Printer Data Stream (IPDS)
30
Multiple Logical Terminals (MLT)
31
Country Extended Code Page (CECP)
31
Response Time Monitor (RTM)
32
Terminal Multiplexer Adapter (TMA)
32
Network Asset Management
32
Serial Original Equipment Manufacture Interface (SOEMI)
32
Microcode Support
32
Terminals
34
Control Unit
34
D Istri Buted Fu Ncti on
34
Displays
34
IBM Personal Computers
35
Keyboards
35
Optional System Components
35
3299 Terminal Multiplexer
35
3814 Switching Management System
36
5209 Link Protocol Converter
37
Chapter 3. Models of the 3174 Establishment Controller
38
Large-Cluster Controllers
38
3174 Model1L
38
3174 Model11L
39
3174 Model11R
40
3174Model1R
40
3174 Model 2R
41
3174 Model12R
41
3174 Model 3R
42
3174 Model13R
43
Medium-Cluster Controllers
44
3174 Model51R
44
3174 Model61R
44
3174 Model 52R
45
Type 3 Communication Adapter
45
3174 Model 53R
46
3174 Model 62R
46
3174 Model 63R
47
Small-Cluster Controllers
48
3174 Model81R
48
3174 Model 82R
49
3174 Model91R
49
3174 Model 92R
50
Chapter 4. System Attachment
52
Local Attachment
52
Remote Attachment
52
Token-Ring Network Attachment
53
Communication Networks and Modems
53
Chapter 5. Programming Support
56
Operating Systems
56
Telecommunication Access Methods
56
Network Control
57
Cross-Industry Licensed Programs
57
Information Center
57
Development Center
57
Office Systems
58
Database Data Communication Systems
58
Interactive Programming Support
58
Other Licensed Programs
58
Appendix A. Quick-Reference Tables
60
Table of 3174 Controller Devices
60
Ascii
62
Table of Features Supported by each 3174 Controller
65
Token-Ring
65
Type 3A Communication Adapter
65
Table of Alternate Controller Configurations
67
List of Abbreviations
68
Glossary
72
Central Site Change Management
72
Type 1 Communication Adapter
78
Type 2 Communication Adapter
78
Index
80
Numerics T
