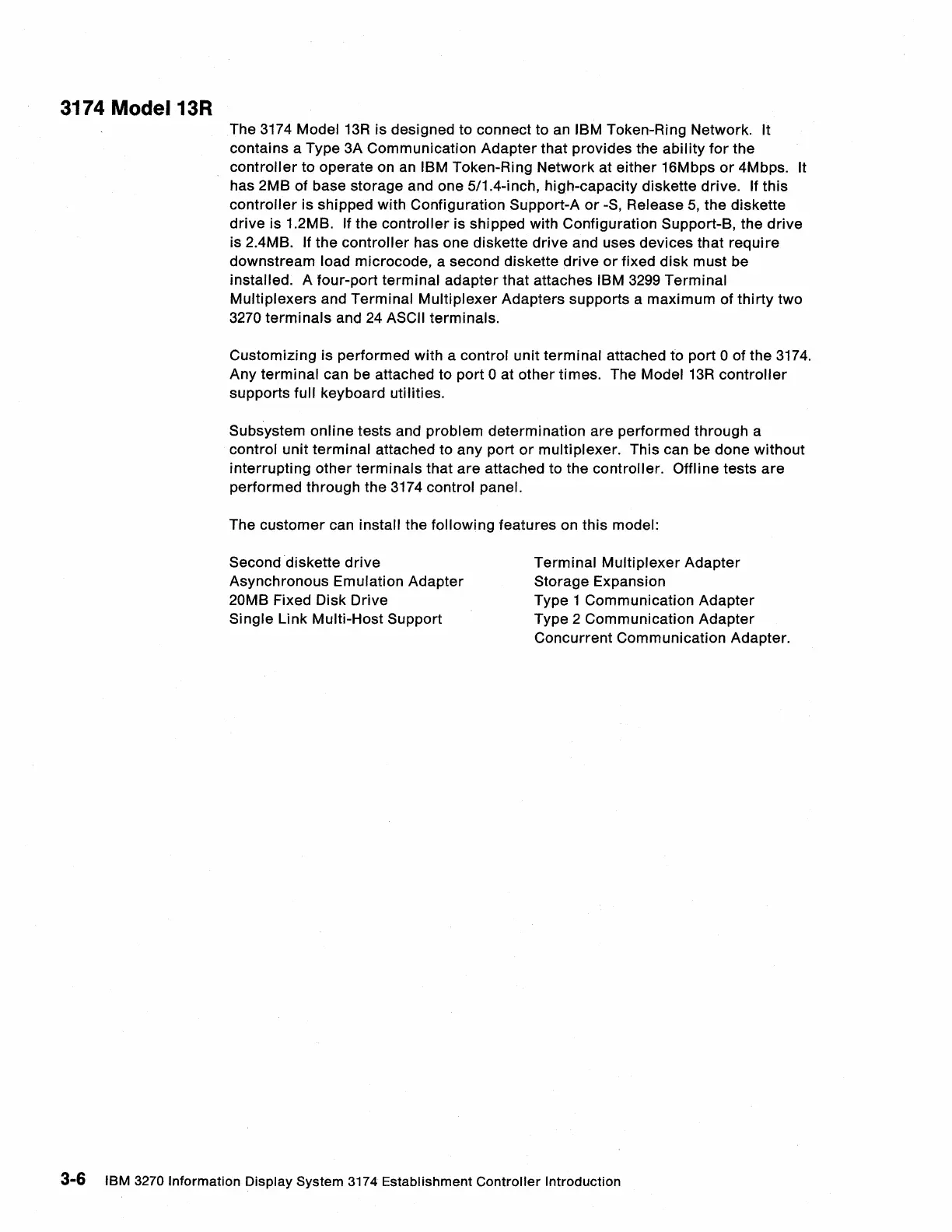

3174 Model13R
The 3174 Model 13R is designed to connect to an IBM Token-Ring Network. It
contains a Type 3A Communication Adapter that provides the ability for the
controller to operate on an IBM Token-Ring Network at either 16Mbps or 4Mbps. It
has 2MB of base storage and one 5/1.4-inch, high-capacity diskette drive. If this
controller is shipped with Configuration Support-A or -S, Release 5, the diskette
drive is 1.2MB. If the controller is shipped with Configuration Support-B, the drive
is 2.4MB. If the controller has one diskette drive and uses devices that require
downstream load microcode, a second diskette drive or fixed disk must be
installed. A four-port terminal adapter that attaches
IBM 3299 Terminal
Multiplexers and Terminal Multiplexer Adapters supports a maximum of thirty two
3270 terminals and 24 ASCII terminals.
Customizing
is performed with a control unit terminal attached to port 0 of the 3174.
Any
terminal can be attached to port 0 at other times. The Model 13R controller
supports full keyboard utilities.
Subsystem
online tests and problem determination are performed through a
control
unit terminal attached to any port or multiplexer. This can be done without
interrupting other terminals that are attached to the controller. Offline tests are
performed through the 3174 control panel.
The
customer can install the following features on this model:
Second diskette
drive
Asynchronous Emulation Adapter
20MB Fixed Disk Drive
Single Link Multi-Host Support
Terminal
Multiplexer Adapter
Storage Expansion
Type 1 Communication
Adapter
Type 2 Communication Adapter
Concurrent Communication Adapter.
