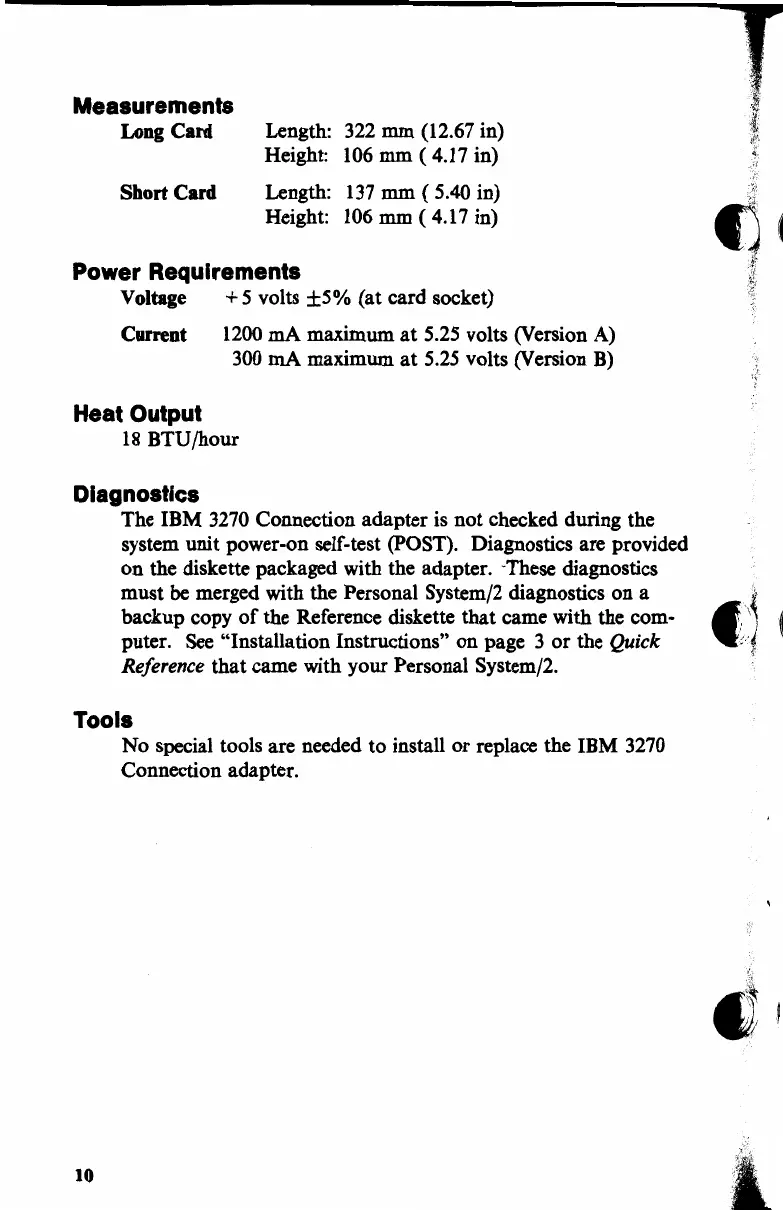

Measurements
Long Card
Length:
322
mm (12.67 in)
Height:
106
mm ( 4.17 in)
Short Card
Length:
137
mm ( 5.40 in)
Height:
106
mm ( 4.17 in)
Power Requirements
Voltage + 5 volts
±5%
(at card socket)
Current
1200
mA maximum
at
5.25 volts (Version
A)
300
mA maximum
at
5.25 volts (Version
B)
Heat Output
18
BTU/hour
Diagnostics
The IBM 3270 Connection adapter is not checked during the
system unit power-on self-test (POST}. Diagnostics are provided
on the diskette packaged with the adapter. -These diagnostics
must
be merged with the Personal System/2 diagnostics on a
backup copy
of
the Reference diskette that came with the com-
puter.
See
"Installation Instructions" on page 3
or
the Quick
Reference that came with your Personal System/2.
Tools
10
No
special tools are needed to install
or
replace the IBM 3270
Connection adapter.
