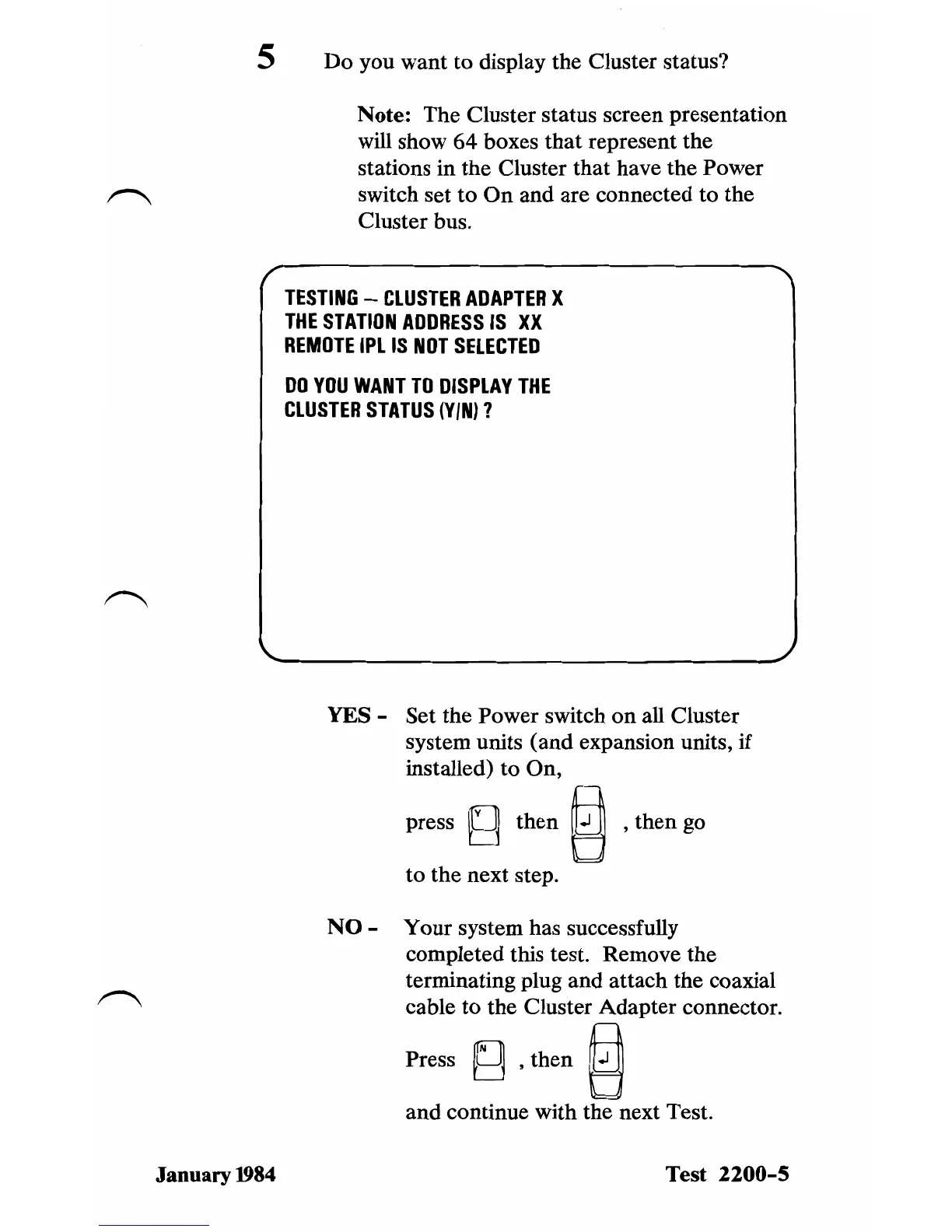

5 Do you want to display the Cluster status?
Note: The Cluster status screen presentation
will show 64 boxes that represent the
stations in the Cluster that have the Power
switch set
to On and are connected to the
Cluster bus.
TESTING - CLUSTER ADAPTER X
THE STATION ADDRESS IS XX
REMOTE IPL IS NOT SELECTED
DO YOU WANT TO DISPLAY THE
CLUSTER STATUS (YIN) ?
YES - Set the Power switch on all Cluster
system units (and expansion units, if
installed)
to On,
press
g then ~ • then go
to the next step.
NO - Your system has successfully
completed this test. Remove the
terminating plug and attach the coaxial
cable to the Cluster Adapter connector.
Press
~ • then ~
and continue with the next Test.
January
1984 Test 2200-5
