IBM 5155 User Manual

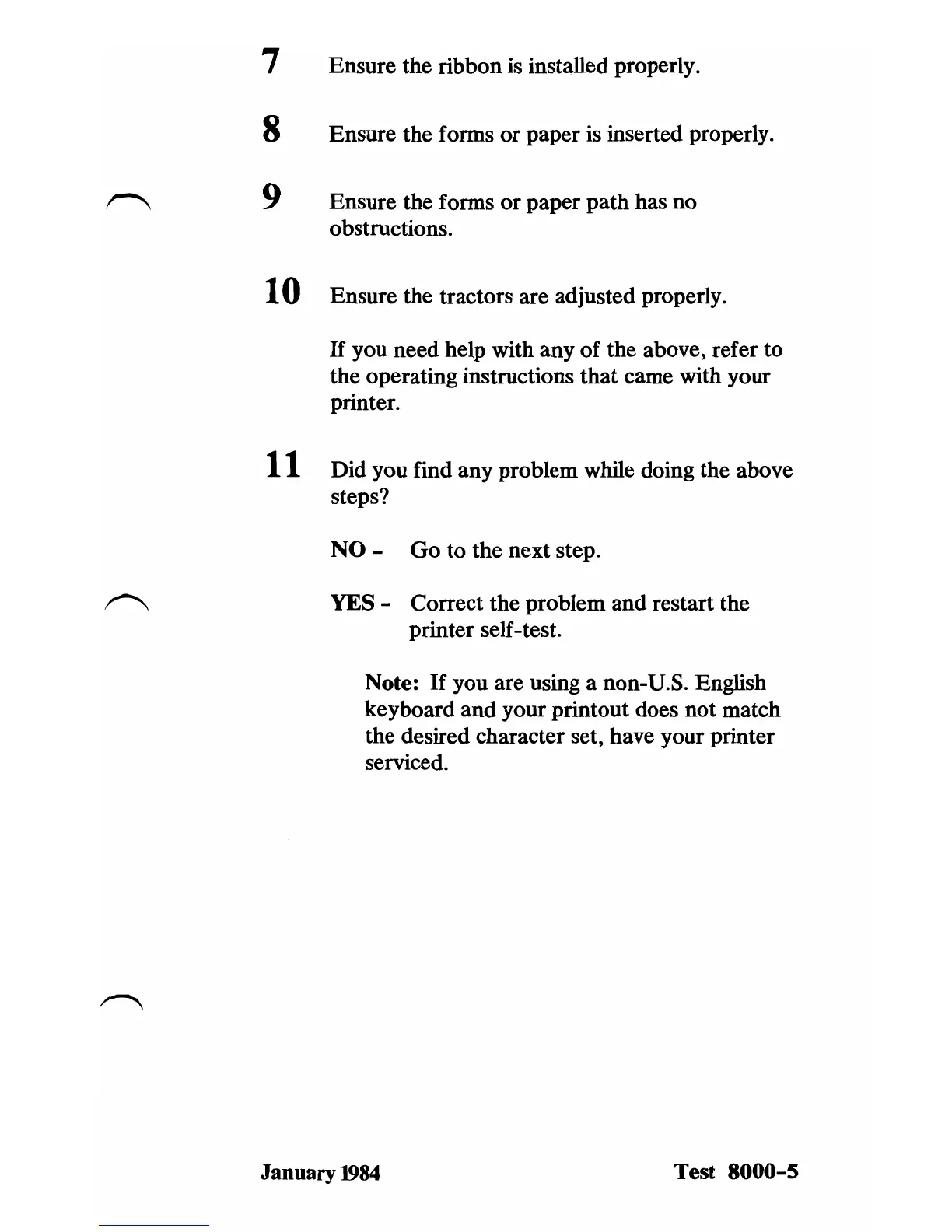

7 Ensure the ribbon is installed properly.
8 Ensure the forms or paper is inserted properly.
9 Ensure the forms or paper path has no
obstructions.
10 Ensure the tractors are adjusted properly.
If you need help with any of the above, refer to
the operating instructions that came with your
printer.
11 Did you find any problem while doing the above
steps?
NO - Go to the next step.
YES - Correct the problem and restart the
printer self-test.
Note:
If you are using a non-U.S. English
keyboard and your printout does not match
the desired character set, have your printer
serviced.
January 1984
Test 8000-5

IBM 5155 Specifications

General

Model	IBM 5155
Category	Desktop
Release Year	1984
CPU	Intel 8088
Clock Speed	4.77 MHz
Display	9-inch monochrome CRT
RAM	256 KB, expandable to 640 KB
Storage	One or two 5.25" 360KB floppy disk drives
Graphics	CGA (Color Graphics Adapter)
Ports	Parallel, Serial, Keyboard
Operating System	IBM PC DOS
Weight	30 pounds (13.6 kg)
