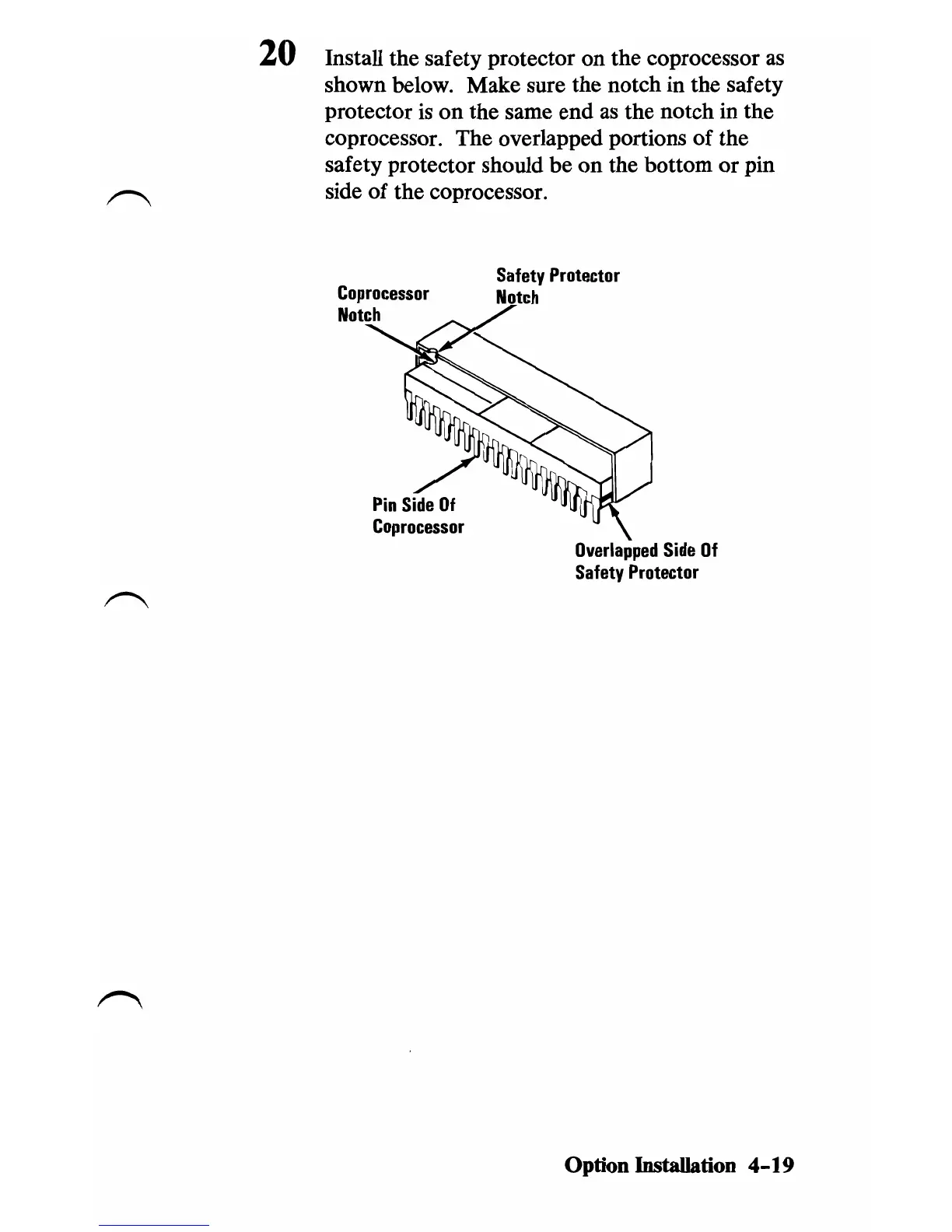

20 Install the safety protector
on
the coprocessor as
shown below. Make sure the notch in the safety
protector
is
on
the same end as the notch in the
coprocessor. The overlapped portions of the
safety protector should be
on
the bottom or pin
side
of
the coprocessor.
Coprocessor
Notch
Pin
Side
Of
Coprocessor
Overlapped
Side
Of
Safety
Protector
Option Installation
4-19
