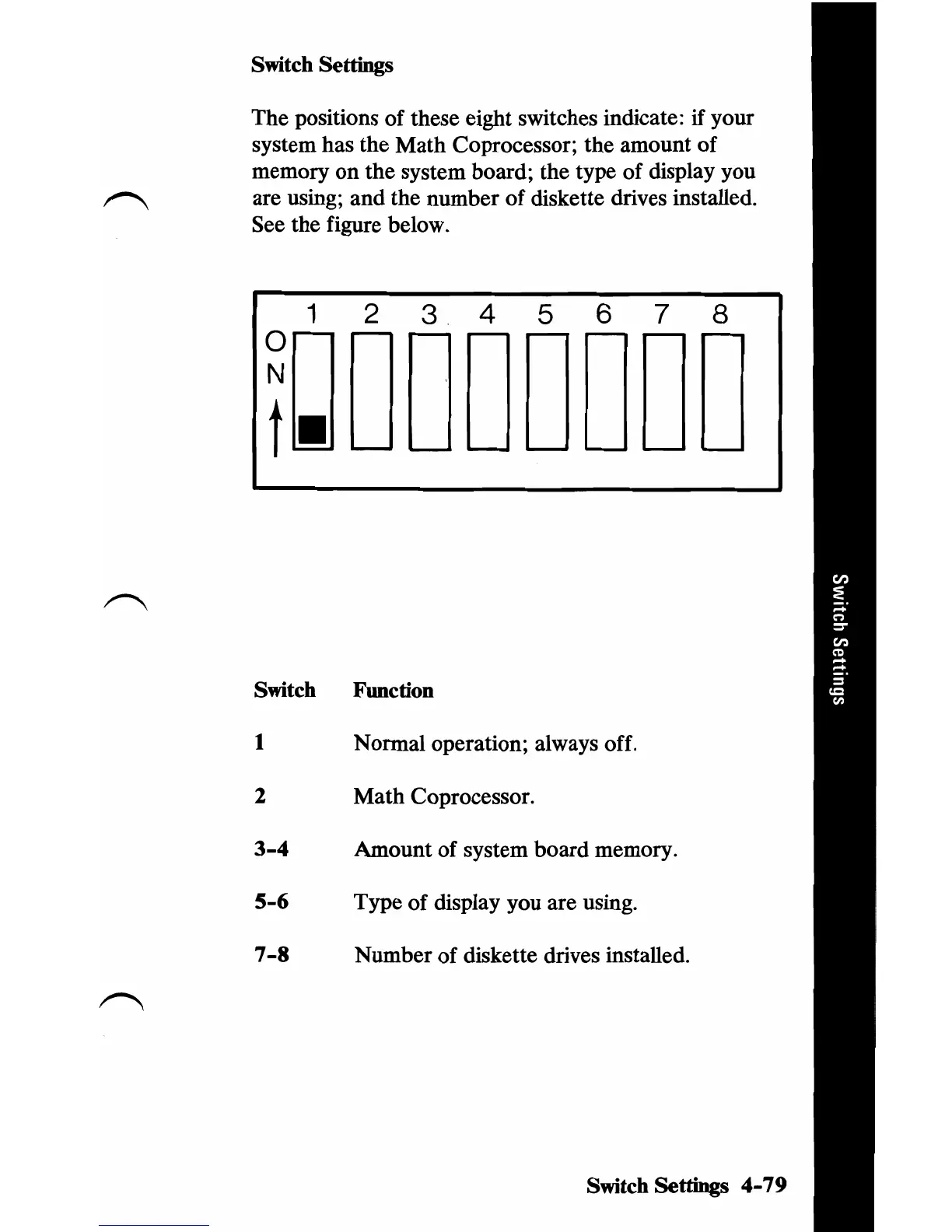

Switch Settings
The positions
of
these eight switches indicate:
if
your
system has the Math Coprocessor; the amount
of
memory
on
the
system board; the type
of
display you
are using; and the number
of
diskette drives installed.
See the figure below.
1 2
345
678
~~DDDDDDD
Switch Function
1 Normal operation; always off.
2
Math
Coprocessor.
3-4
Amount of system
board
memory.
5-6
Type
of
display you are using.
7-8
Number
of
diskette drives installed.
Switch
Settings
4-79
