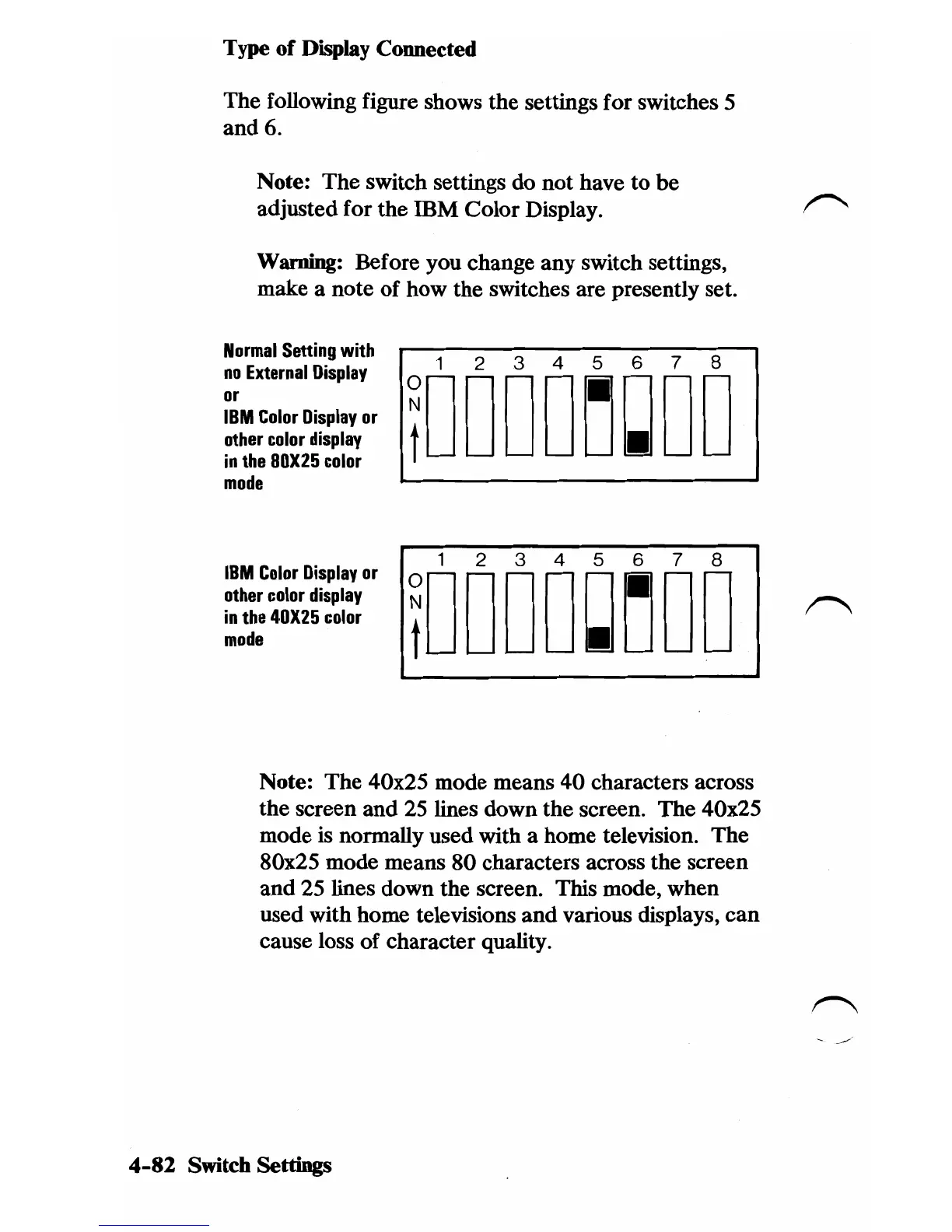

Type
of
Display Connected
The following figure shows the settings for switches 5
and 6.
Note: The switch settings do not have to be
adjusted for the
mM
Color Display.
Warning: Before you change any switch settings,
make a note
of
how the switches are presently set.
Normal
Setting
with
234
5
678
no
External
Display
IBM
Color
Display
or
other
color
display
or
~DDDD~~DD
in
the
80X25
color
mode
2
345
678
IBM
Color
Display
or
other
color
display
in
the
/I,OX25
color
mode
~DDDD~~DD
Note: The 40x25 mode means
40
characters across
the screen and 25 lines down the screen. The 40x25
mode
is
normally used with a home television. The
80x25 mode means 80 characters across the screen
and 25 lines down the screen. This mode, when
used with home televisions and various displays, can
cause loss of character quality.
