IBM 5155 User Manual

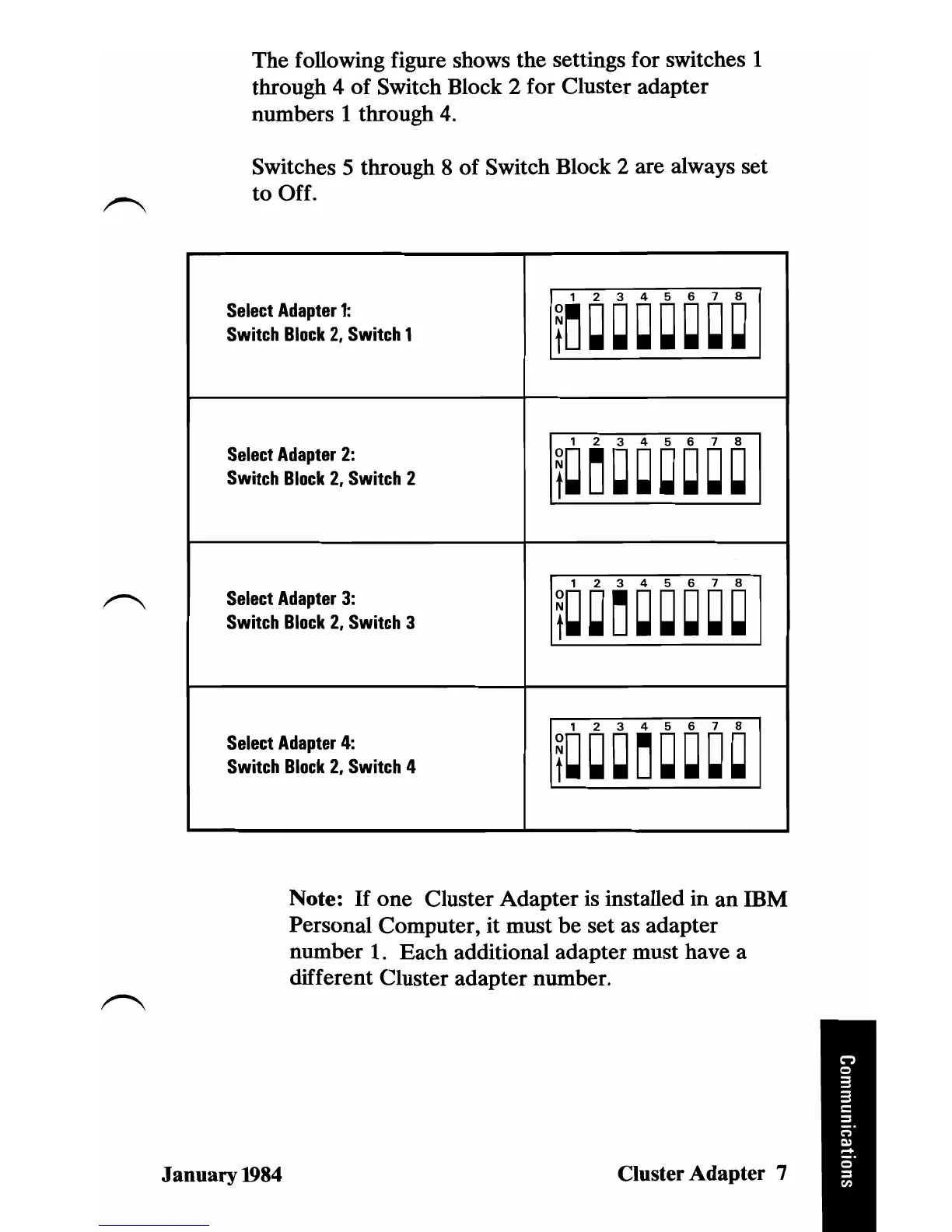

The following figure shows the settings for switches 1
through
4 of Switch Block 2 for Cluster adapter
numbers
1 through 4.
Switches 5 through 8 of Switch Block 2 are always set
to Off.
, 2 3 456 7 8
Select Adapter 1:
Switch Block 2, Switch 1
~~ ~ ~ ~ ~ ~ ~ ~
1 2 3 4 5 6 7 8
Select Adapter 2:
Switch Block 2, Switch 2
1~ ~ ~ ~ ~ ~ ~ ~
, 234 5 6 7 8
Select Adapter 3:
Switch Block 2, Switch 3
~~ ~ ~ ~ ~ ~ ~ ~
, 2 3 4 5 6 7 8
Select Adapter 4:
Switch Block 2, Switch 4
i~ ~ ~ ~ ~ ~ ~ ~
Note: If one Cluster Adapter is installed in an IDM
Personal Computer, it must be set as adapter
number
1. Each additional adapter must have a
different Cluster adapter number.
January
1984
Cluster Adapter 7

IBM 5155 Specifications

General

Model	IBM 5155
Category	Desktop
Release Year	1984
CPU	Intel 8088
Clock Speed	4.77 MHz
Display	9-inch monochrome CRT
RAM	256 KB, expandable to 640 KB
Storage	One or two 5.25" 360KB floppy disk drives
Graphics	CGA (Color Graphics Adapter)
Ports	Parallel, Serial, Keyboard
Operating System	IBM PC DOS
Weight	30 pounds (13.6 kg)
