IBM 5155 - Page 387

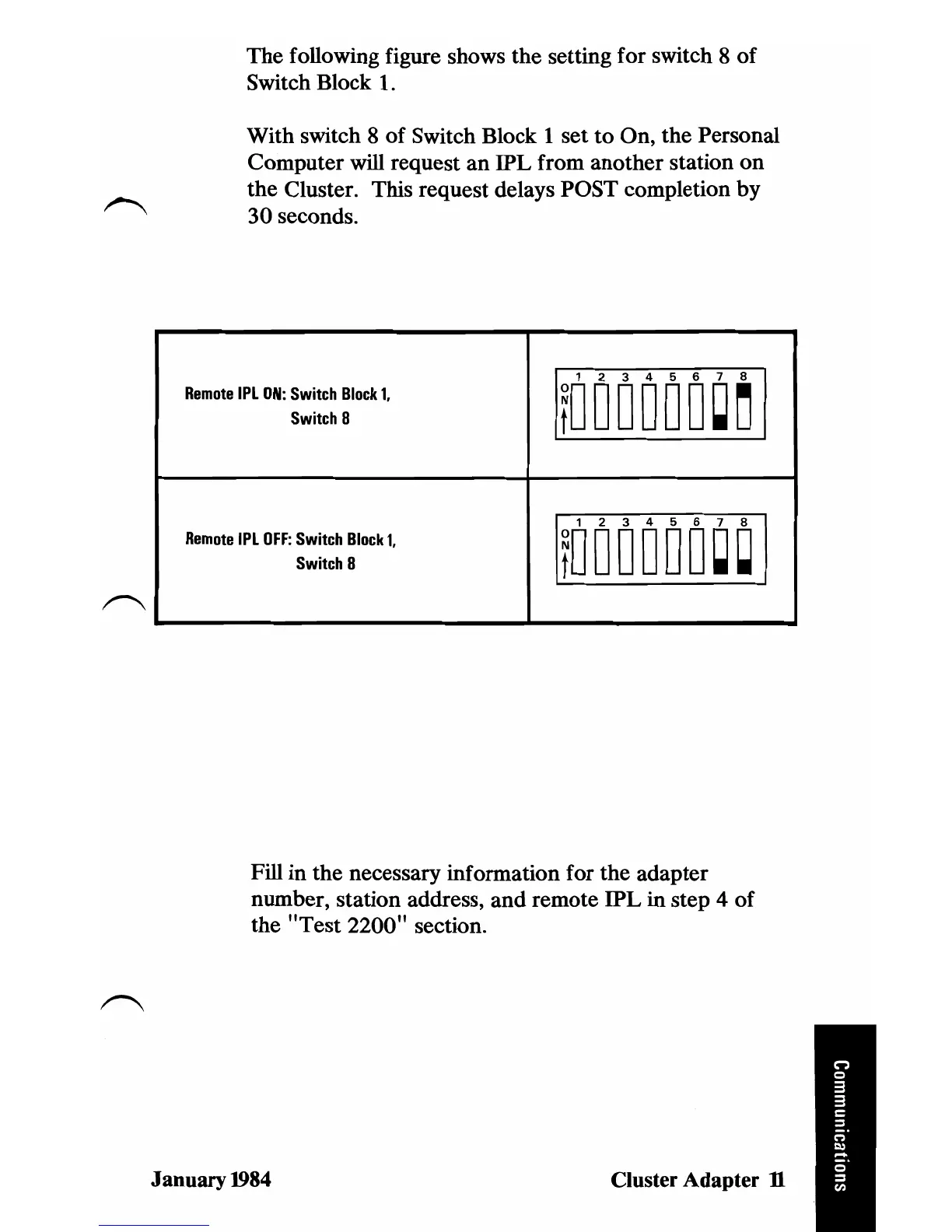

The following figure shows the setting for switch 8 of
Switch Block 1.
With switch 8
of Switch Block 1 set to On, the Personal
Computer will request an IPL from another station on
the Cluster. This request delays POST completion by
30 seconds.
1 2 345 6 7 8
Remote IPL ON: Switch Block 1.
Switch 8
~D D D D D D ~ ~
1 2 3 4 5 6 7 8
Remote IPL OFF: Switch Block 1.
Switch 8
iD 0 0 0 0 0 ~ ~
Fill in the necessary information for the adapter
number, station address, and remote IPL in step 4 of
the "Test 2200" section.
January 1984
Cluster Adapter
