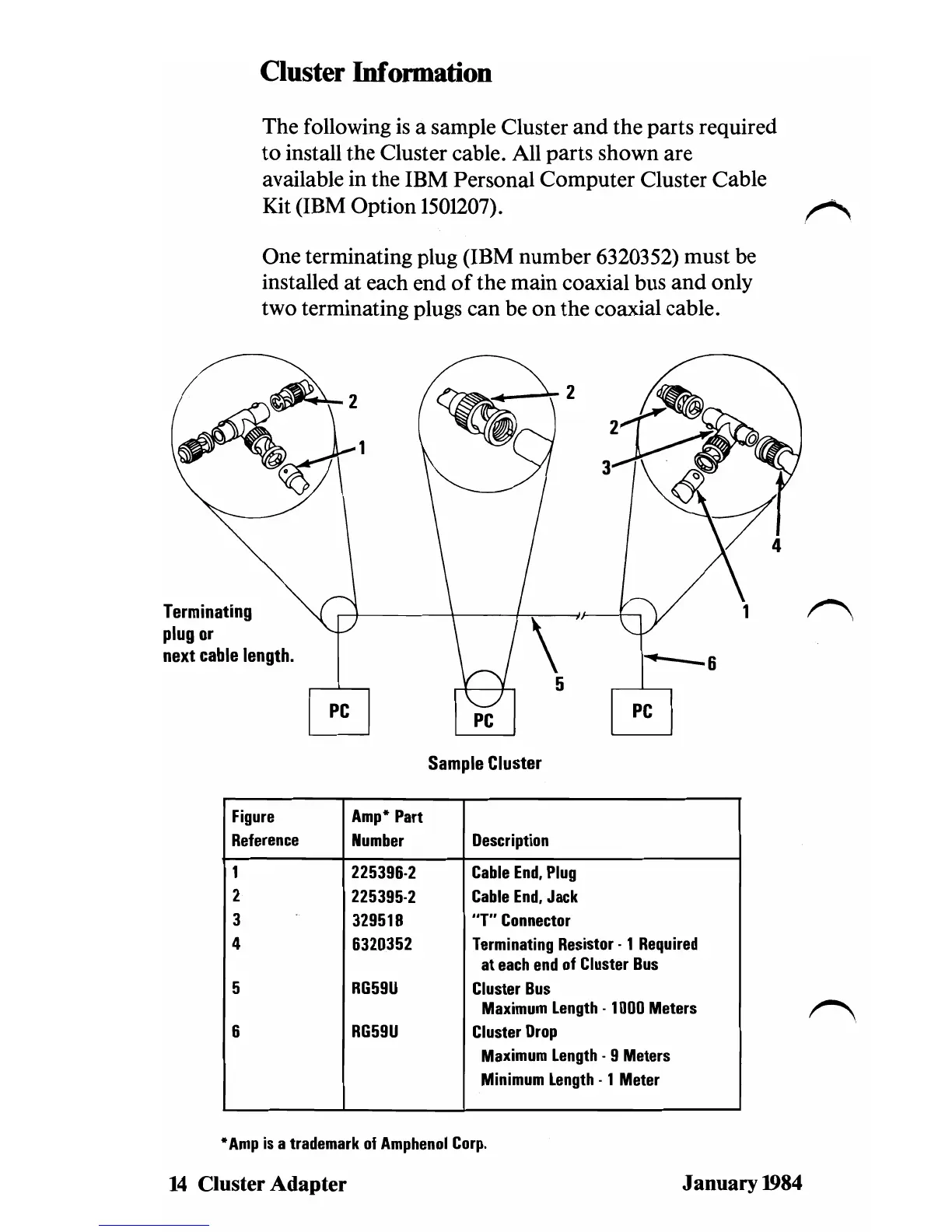

Cluster Information
The following is a sample Cluster and the parts required
to install the Cluster cable. All parts shown are
available in the IBM Personal Computer Cluster Cable
Kit (IBM Option
1501207). ~
One terminating plug (IBM number 6320352) must be
installed at each end
of the main coaxial bus and only
two terminating plugs can be
on the coaxial cable.
2
Terminating
plug or
next cable length.
---6
5
Sample Cluster
Figure Amp* Part
Reference
Number Description
1 225396-2 Cable End. Plug
2
225395-2
Cable End. Jack
3 329518 "T" Connector
4 6320352 Terminating Resistor - 1 Required
at each end of Cluster Bus
5 RG59U Cluster Bus
Maximum Length - 1000 Meters
6 RG59U Cluster Drop
Maximum Length - 9 Meters
Minimum Length - 1 Meter
* Amp is a trademark of Amphenol Corp.
14 Cluster Adapter
January 1984
