IBM 5155 User Manual

6
7

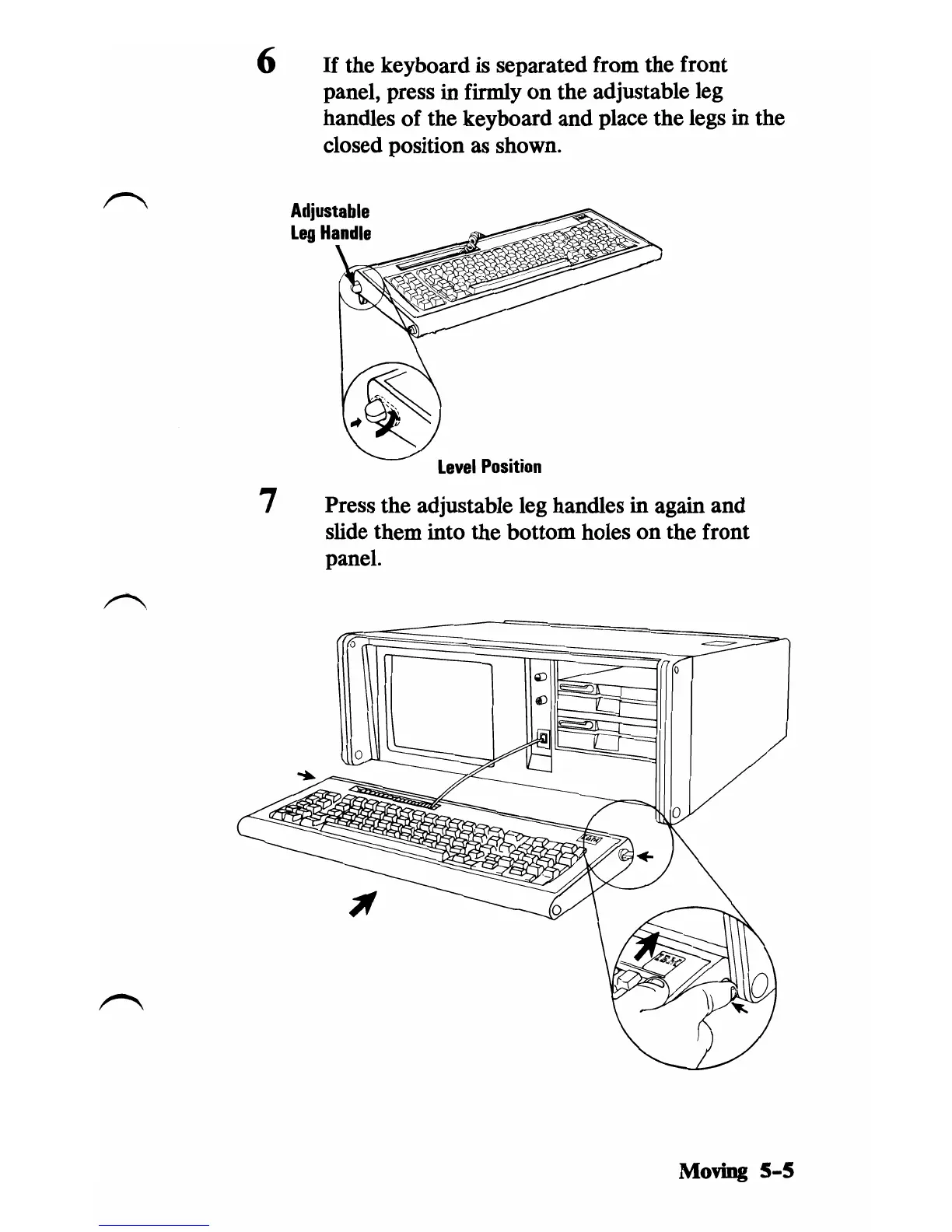

If the keyboard is separated from the front
panel, press in firmly on the adjustable leg
handles of the keyboard and place the legs in the
closed position as shown.
Level Position
Press the adjustable leg handles in again and
slide them into the bottom holes on the front
panel.
Moving 5-5

IBM 5155 Specifications

General

Model	IBM 5155
Category	Desktop
Release Year	1984
CPU	Intel 8088
Clock Speed	4.77 MHz
Display	9-inch monochrome CRT
RAM	256 KB, expandable to 640 KB
Storage	One or two 5.25" 360KB floppy disk drives
Graphics	CGA (Color Graphics Adapter)
Ports	Parallel, Serial, Keyboard
Operating System	IBM PC DOS
Weight	30 pounds (13.6 kg)
