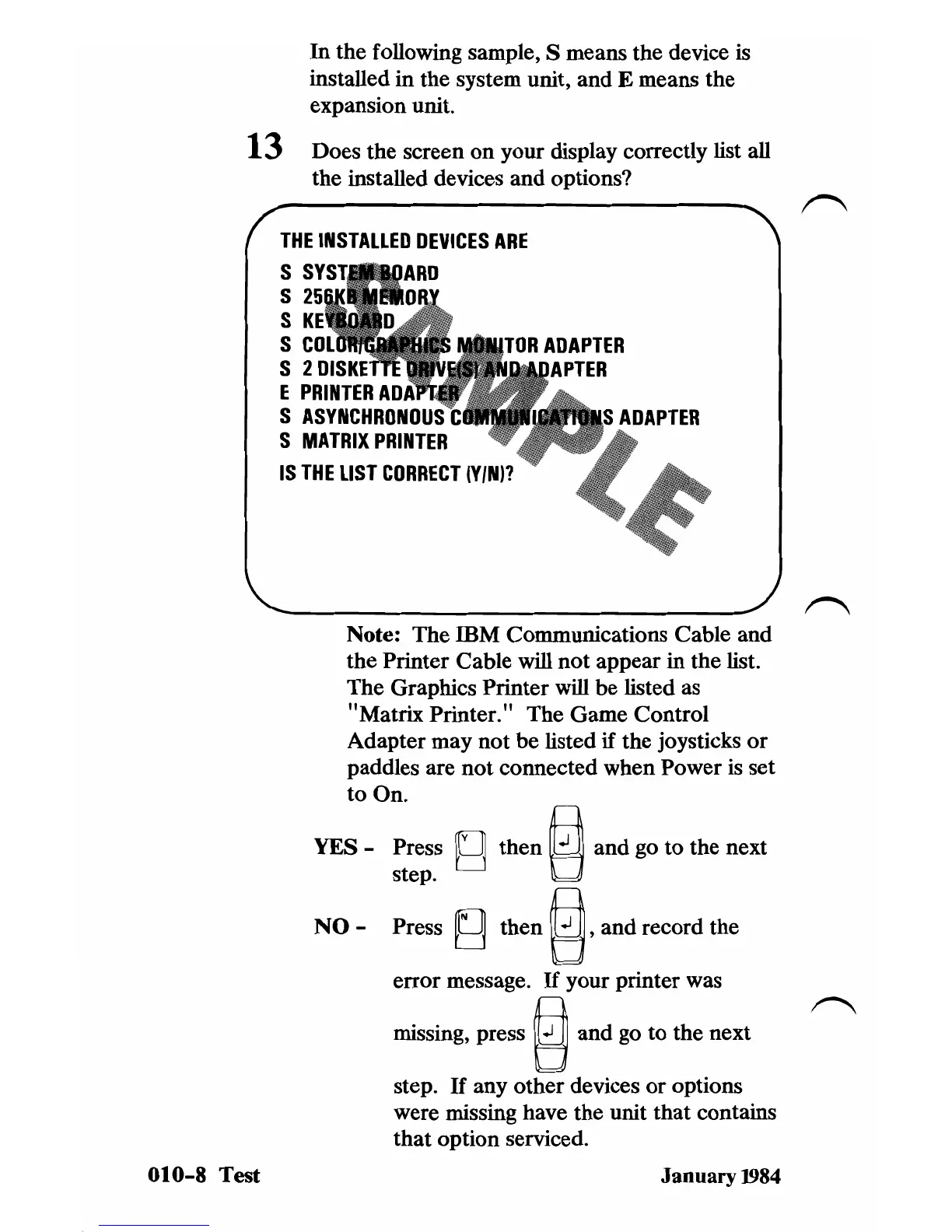

In the following sample, S means the device is
installed
in the system unit, and E means the
expansion unit.
13 Does the screen on your display correctly list all
the installed devices and options?
THE INSTALLED DEVICES ARE
S
S 2
S
S
S 2
E
PRINTER A
S
ASYNCHRONOUS
S MATRIX PRINTER
IS THE LIST CORRECT (YIN)?
Note: The mM Communications Cable and
the Printer Cable will not appear in the list.
The Graphics Printer will be listed as
"Matrix Printer."
The Game Control
Adapter may not be listed if the joysticks or
paddles are not connected when Power is set
to On.
YES -
NO -
Press
g then £~ and go to the next
step. [j
Press ~ then @. and record the
error message. If your printer was
missing, press
@ and go to the next
step.
If any other devices or options
were missing have the unit
that contains
that option serviced.
010-8 Test
January 1984
