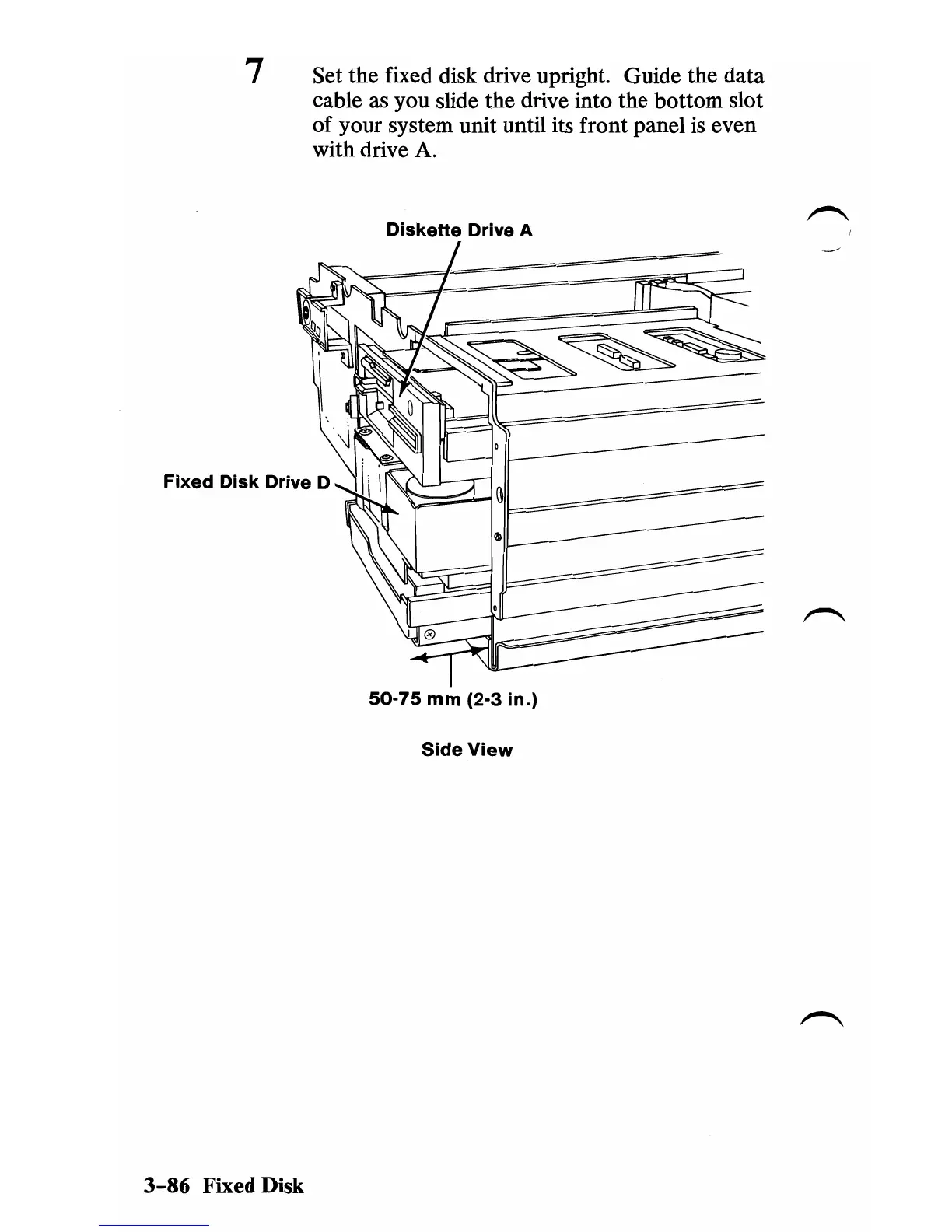

Set the fixed disk drive
UPright.
Guide the data
7
cable as you slide the drive into the bottom slot
of
your system unit until its front panel
is
even
with drive
A.
Diskette Drive A
Fixed Disk Drive D
@/L-----
50-75
mm
(2-3
in.)
Side View
3-86
Fixed Disk
