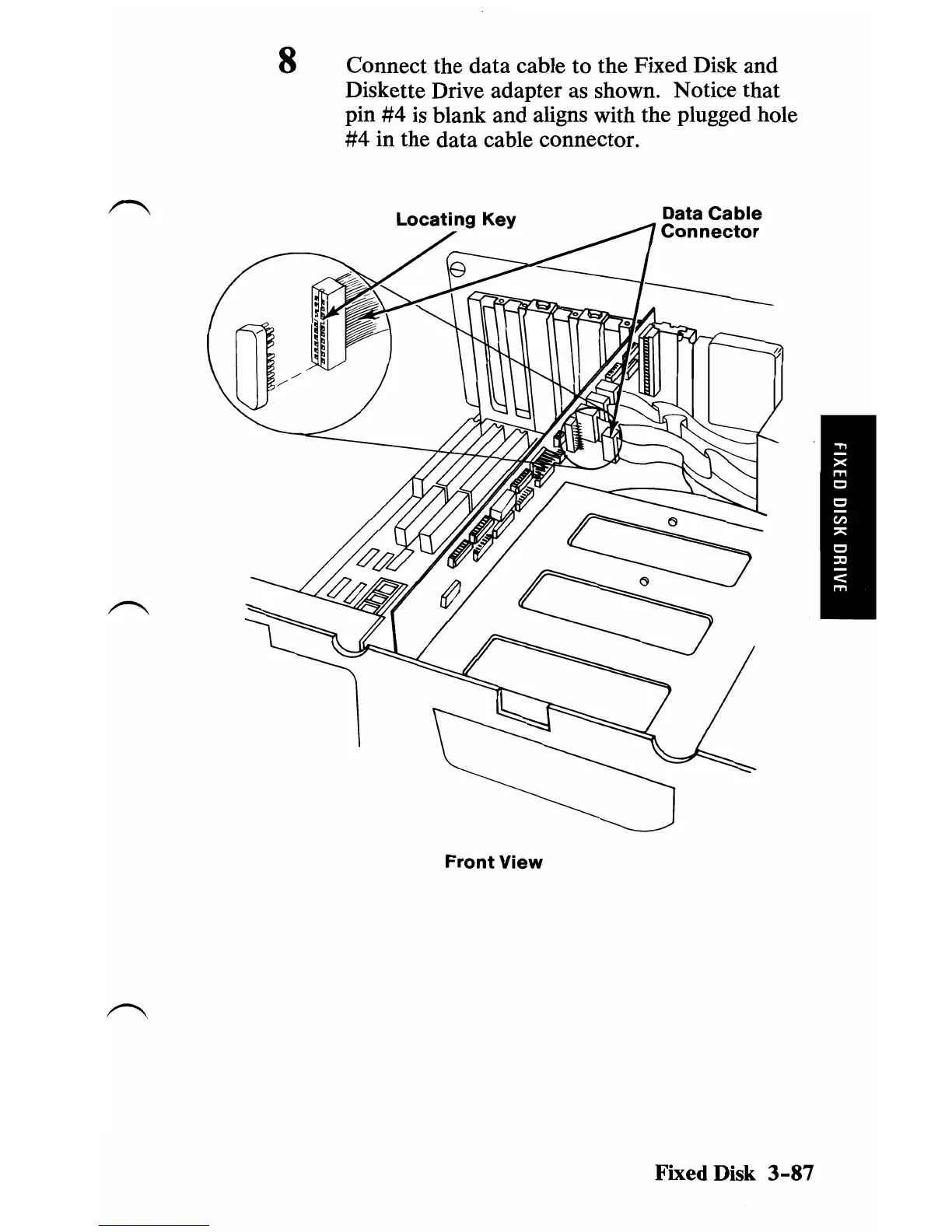

8 Connect the data cable to the Fixed Disk and
Diskette Drive adapter as shown. Notice that
pin
#4
is
blank and aligns with the plugged hole
#4 in the data cable connector.
Data Cable
Connector
Front
View
Fixed Disk
3-87
